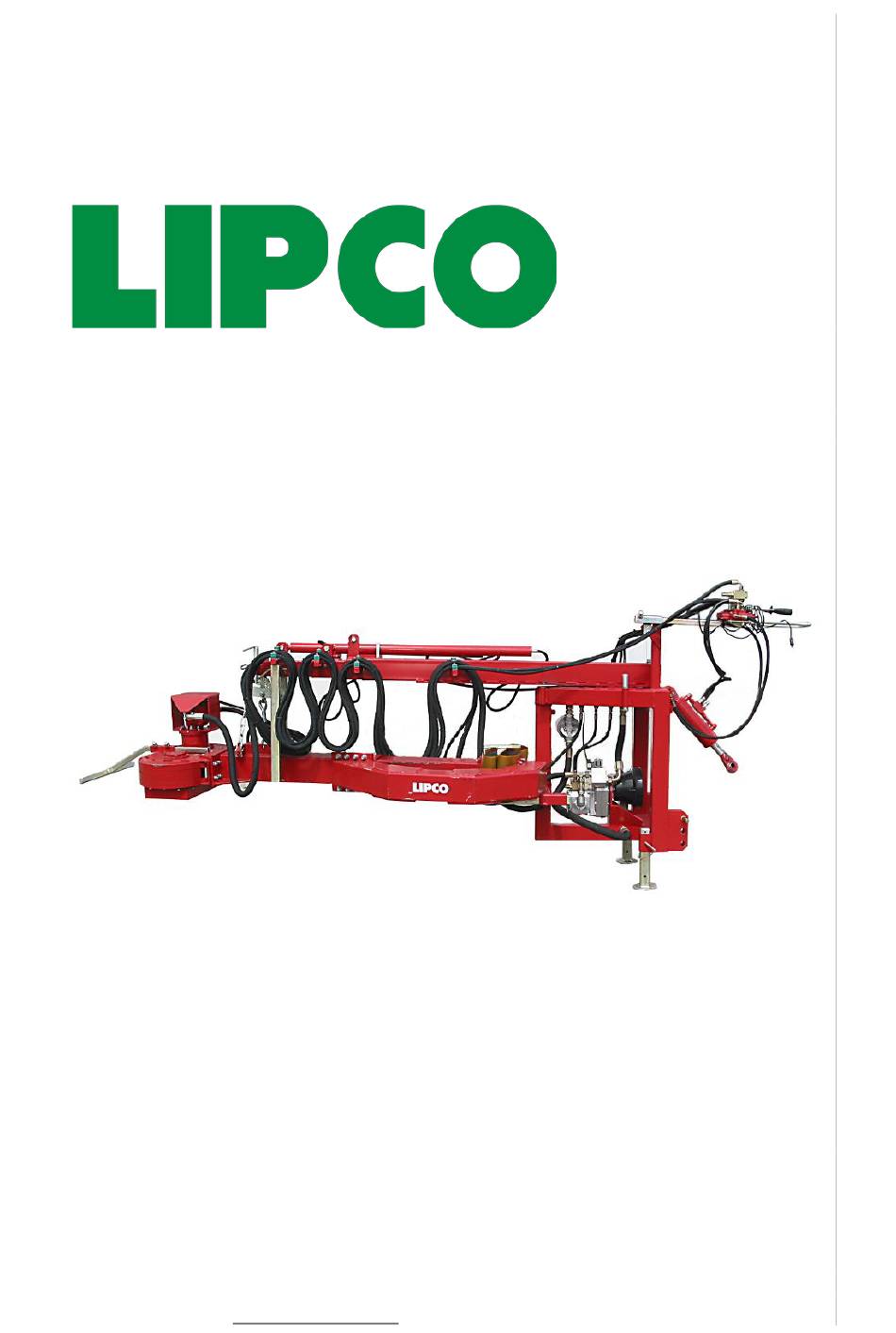

- Page 1 Translation of Hydraulic shaker HSA 10 original instructions LIPCO GmbH Am Fuchsgraben 5b D-77880 Sasbach Tel. +49 7841 6348-0 +49 7841 6348-300 E-mail mail@lipco.com www.lipco.com...
-
Page 2: Introduction
- will always be able to have a complete reference on hand. Note: The illustrations, descriptions and specifications in this manual are not binding. LIPCO reserves the right to make modifications without no- tice. 2 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 3: Table Of Contents
12. Operating HSA 10 13. Driving on public roads. 14. Lubrication chart 15. Maintenance 16. Machine storage 17. Machine disposal after end of lifetime 18. Notices 19. Warranty 20. EC declaration of conformity 3 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 4: Designated Use
It may be necessary to transport the LIPCO hy- draulic shaker HSA 30 on a flatbed truck. • Note LIPCO hydraulic shaker HSA 10 is also referred to in this op- erating manual only as HAS 10. 4 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 5: Warning Signs Attached To The Machine
When operating the hydraulic lift, stay outside the lift- ing range of the three-point suspension. Do not exceed the prescribed speed (540 rpm) when operating the unit! Never reach between the rotating universal joint shaft. 5 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 6: General Safety Regulations
• The operator is responsible for compliance with applicable acci- dent prevention regulations, in addition to the generally recog- nized safety, occupational health and traffic safety regulations! 6 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 7: Accident Prevention
• Prior to any operation, check PTO dive shaft length / overlapping. Possibly a length adjustment will be required. • Operate the machine only at the specified speed (max. 540 rpm)! 7 - 28 220018-00-EN BA HSA 10 / 28.09.2019... - Page 8 This concerns driving parallel to the slope or downslope. Any operation not adapted to local conditions can cause serious personal injuries or material damages because of tilting of the combination of tractor + HAS 10. 8 - 28 220018-00-EN BA HSA 10 / 28.09.2019...
-
Page 9: Technical Details - Standard Equipment
• Electrical operation including 4 function control box and 4 m ca- • Wireless control including 4 function control box • Lighting kit 12V (road traffic act), detachable, with magnet panel 9 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 10: Technical Data
Gripper pressure adjustable 0 - 180 bar Hydraulic pump 110 l Maximum allowable pressure 150 bar Standard – via PTO sahft Switching on shaking operation Special edition: electric operation via sole- noid valve 10 - 28 220018-00-EN BA HSA 10 / 28.09.2019... - Page 11 0,1 – 0,43 m pic arms 0,1 – 0,55 m Main dimensions: HSA 10 with 2 telescopic 1450 4400 3360 1710 1000 arms HSA 10 with 3 telescopic 1450 5400 3540 1710 1000 arms 11 - 28 220018-00-EN BA HSA 10 / 28.09.2019...
-
Page 12: Attachment To Tractor
• Note: Any dirt within the hydraulic circuit will damage the sealing of hy- draulic valves and hydraulic motor. Fig. 1 Return line blue protec- tive cap Pressure side red protective 12 - 28 220018-00-EN BA HSA 10 / 28.09.2019... - Page 13 Instructions Hydraulic shaker HSA 10 Note: Depending on category (CAT 1 / CAT 2) of tractor reductions will be required for upper link. 13 - 28 220018-00-EN BA HSA 10 / 28.09.2019...
-
Page 14: Attachment Of The Universal Joint Shaft
When connecting the universal joint shaft to the machine, make sure that the protective cover covers completely the universal joint shaft guard in all operating positions! • For your personal safety, replace damaged or worn protective de- vices immediately. 14 - 28 220018-00-EN BA HSA 10 / 28.09.2019... - Page 15 • HAS 10 is not in use, then locate the universal joint shaft in the adequate hook. 15 - 28 220018-00-EN BA HSA 10 / 28.09.2019...
-
Page 16: Operating Hsa
• Lift shaker using tractor hydraulics; push up the front parking supports (Fig. 5) to highest position and secure them! Fig. 5 • Remove rear sup- ports. (Fig. 6) Fig. 6 16 - 28 220018-00-EN BA HSA 10 / 28.09.2019... - Page 17 The gripper pressure is factory set to 130 bar. Depending on the sensitivity of the tree, the pressure can be increased by adjusting the pressure relief valve (Fig. 7). Fig. 7 17 - 28 220018-00-EN BA HSA 10 / 28.09.2019...
- Page 18 Shaking directions • Special edition: The shaking process is started via an electric on-off valve. For this special edition, hold control lever (“Close gripper”) also in posi- tion. 18 - 28 220018-00-EN BA HSA 10 / 28.09.2019...
-
Page 19: Driving On Public Roads
Transport locking • No other screws may be used as replacements. Only use the original screw recom- Fig. 9 mended by LIPCO! 19 - 28 220018-00-EN BA HSA 10 / 28.09.2019... - Page 20 Instructions Hydraulic shaker HSA 10 During driving on public roads, all 4 safety chains must always be hooked in and secured. Safety chains 4x Safety pins 6x Fig. 10 20 - 28 220018-00-EN BA HSA 10 / 28.09.2019...
-
Page 21: Lubrication Chart
1,5 ltr SAE 90 Extend telescope to the max. and lubricate Telescopes them with multi-purpose grease Oil level in- spection glass Hydraulic oil filler neck Shaker head drain plug Gearbox oil level inspection glass 21 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 22: Maintenance
HLP 46 35 ltr. 200.- h / 1x per year Filter cartridge CS 010 200.- h / 1x per year • Dispose drained hydraulic oil and filter cartridge according to legal requirements. 22 - 28 220018-00-EN BA HSA 10 / 28.09.2019... - Page 23 Kriti- sche Stelle im Seil, besonders auf Beschädigungen prüfen. Uncorrected damage to the rope suspension of the shaking head can lead to a hazardous situation during shaking opera- tion. Fig. 11 23 - 28 220018-00-EN BA HSA 10 / 28.09.2019...
-
Page 24: Machine Storage
17. Machine disposal after end of lifetime A disposal of the complete machine / or machine components and the operating supplies has to be done separated according to valid legal regulations. 24 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 25: Notices
Hydraulic shaker HSA 10 18. Notices …………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......…………………………………………………………………………......25 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 26: Warranty
Instructions Hydraulic shaker HSA 10 19. Warranty For more details please refer to: https://www.lipco.com/en/downloads/ 26 - 28 220018-00-EN BA HSA 10 / 28.09.2019... -
Page 27: Ec Declaration Of Conformity
DIN EN ISO 4254-6 • DIN EN ISO 4413 This declaration of conformity loses its validity, if changes or modifications on the machine were made, which are not approved in writing before by LIPCO. Willi Lipp - Technical director - Sasbach, 2002.11.30... - Page 28 28 - 28 Design: mail@bauer-ib.com...
