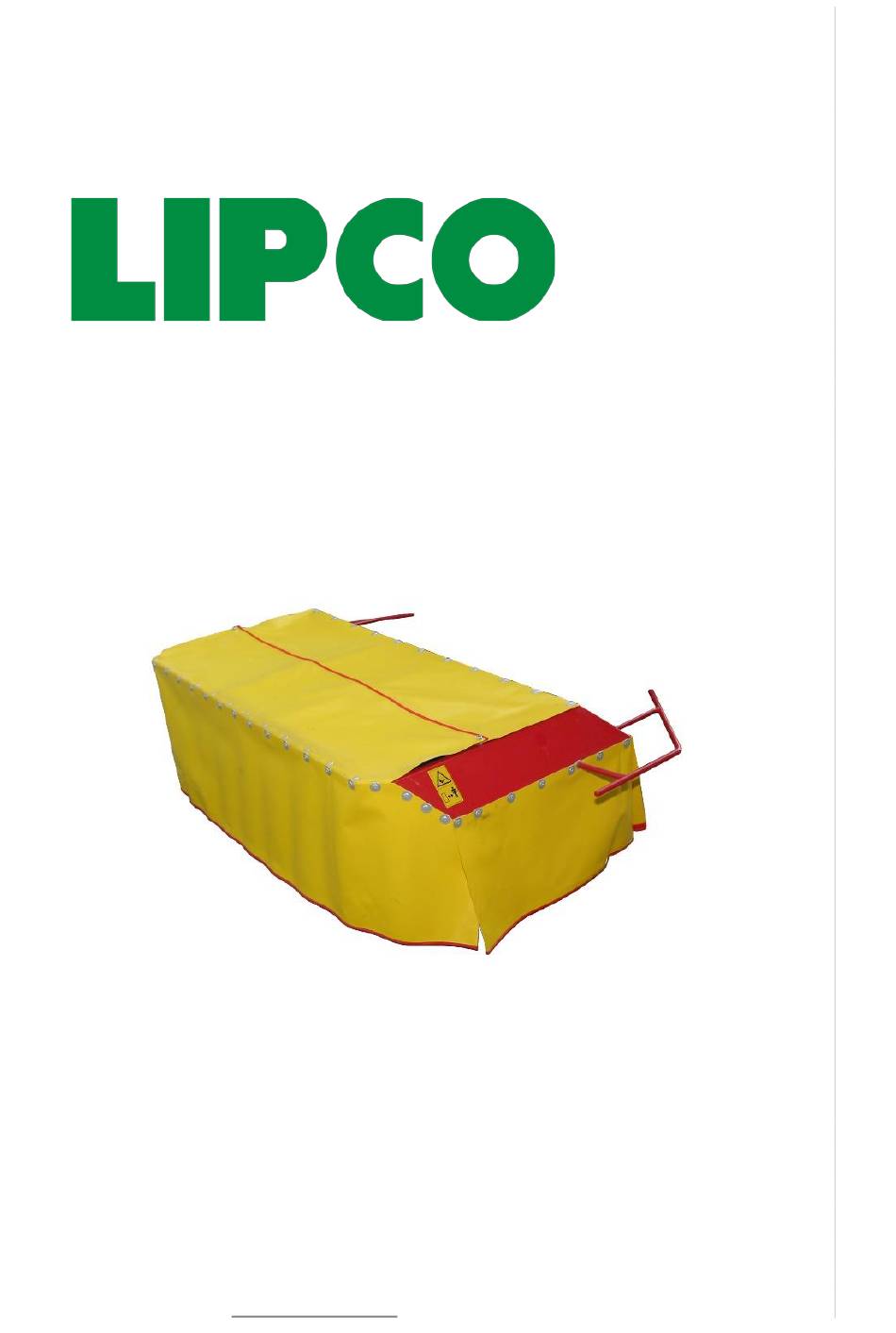

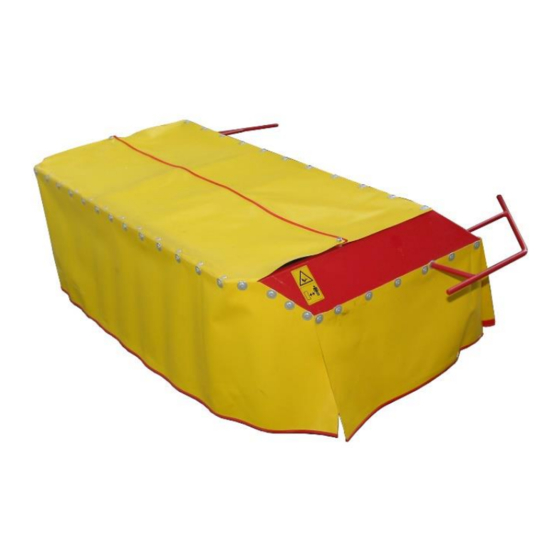

- Page 1 Translation of Compact disc mower KSM 130 original instructions LIPCO GmbH Am Fuchsgraben 5b D-77880 Sasbach Tel. +49 7841 6348-0 +49 7841 6348-300 E-mail mail@lipco.com www.lipco.com...
-
Page 2: Introduction
LIPCO Compact disc mower KSM 130. We hope that you will be happy with your choice. In order that your LIPCO Compact disc mower KSM 130 will serve you well for many years, we ask you to pay close attention to the operating instructions which you will find in this manual. -
Page 3: Table Of Contents
10. Operation of the cutter bar / after mowing 11. Maintenance 12. Oil change 13. Cutting operation faults 14. Instructions for repair shops 15. After use 16. Warranty 17. EC Declaration of Conformity 3 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 4: Designated Use
The manufacturer cannot be held liable for damage resulting from unauthorised modifications of the LIPCO Compact disc mower KSM 130. 4 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 5: Warning Signs Attached To The Machine
With the drive switched on and the tractor motor running, maintain sufficient distance to rotating tools. With the motor running, there is a risk of parts being hurled away – maintain safety distance. Wear eye protection. Wear ear protectors. 5 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 6: Safety Regulations
• The warnings and signs attached to the unit give important information on safe operation; observing these instructions ensures your safety! 6 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 7: Accident Prevention
• Before switching on the engine-driven machine/power takeoff shaft, make sure nobody is in the danger area of the unit! Take into account the direction of rotation of the power takeoff! 7 - 22 140050-01-EN BA KSM 130 / 04.06.2020... - Page 8 This is why they must be put into the protective position before commencing work! • Prior to startup and during work, the sliding blocks must lie on the ground! 8 - 22 140050-01-EN BA KSM 130 / 04.06.2020...
- Page 9 Approach them only after they have come to a halt! • After driving onto an obstacle, immediately switch off the cutter system and check it for damage! 9 - 22 140050-01-EN BA KSM 130 / 04.06.2020...
-
Page 10: Connection To The Engine-Driven Machine
Then secure the connection between the engine-driven machine and the unit. Fig. 1 • Before commencing work, the drive flange must be lubricated. (Fig. 1, Ref. E) 10 - 22 140050-01-EN BA KSM 130 / 04.06.2020... - Page 11 The cutter system should be inclined forward in the driving direction. This is accomplished by adjusting the cutter system via the threaded spindle (Fig. 2). Spindle for inclination adjustment Fig. 2 11 - 22 140050-01-EN BA KSM 130 / 04.06.2020...
-
Page 12: Technical Data
Compact disc mower KSM 130 8. Technical Data Type Weight Required Number of discs/blades (kg) power (kW / hp) (pcs.) KSM 130 10 / 14 3 / 6 Main dimensions KSM 130 1850 12 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 13: Operation Of The Cutter Bar / Prior To Mowing
Clean cutter bar to remove soil and remaining grass. Check all blades and blade holders with respect to their condition. Immediately change damaged parts. Do not spray the bearing areas directly with high-pressure cleaner. Maintenance instructions (refer to chapter 11. 13 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 14: Maintenance
(e.g. rocks). Damaged blades must be replaced immediately (risk of breaking!). • For reasons of safety, use original spare parts only. When replacing the blades, always replace both blades of each cutting disc (risk of imbalance!). 14 - 22 140050-01-EN BA KSM 130 / 04.06.2020... - Page 15 Drive flange: Lubricate once a month and turn it – must run smoothly when turning. (see Fig. 1 - E) • Remove drive flange once a year, clean it to remove dirt and regrease it. 15 - 22 140050-01-EN BA KSM 130 / 04.06.2020...
-
Page 16: Oil Change
The oil level, as measured in the oil charging hole, should be 12 • The drain screw (B) is located at the lower end of the cutter bar under the first cutter disc. 16 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 17: Cutting Operation Faults
• Set cutter bar inclination! • When doing so, observe the safety regulations in chapter 5. When replacing the blades, follow the instruction given in chapter “11. Maintenance”. 17 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 18: Instructions For Repair Shops
The angular ball bearing must be mounted in the bearing housing (8) such that the bearing inner rings face each other with their smaller side (10). 18 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 19: After Use
• Attention! When putting the device back into operation, please follow the instructions in chapter “11. Maintenance”. 19 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 20: Warranty
Instructions Compact disc mower KSM 130 16. Warranty For more details please refer to: https://www.lipco.com/en/downloads/ 20 - 22 140050-01-EN BA KSM 130 / 04.06.2020... -
Page 21: Ec Declaration Of Conformity
EN ISO 12100-1 / EN ISO 12100-2 • EN ISO 14121-1 This declaration of conformity loses its validity, if changes or modifications on the machine were made, which are not approved in writing before by LIPCO. Willi Lipp - Technical director - Sasbach, 2009.12.09... - Page 22 22 - 22 Design: mail@bauer-ib.com...
