Translation of the original
instructions
LIPCO GmbH
Am Fuchsgraben 5b
D-77880 Sasbach
Tel.
+49 7841 6348-0
Fax
+49 7841 6348-300
E-mail
mail@lipco.com
Web
www.lipco.com

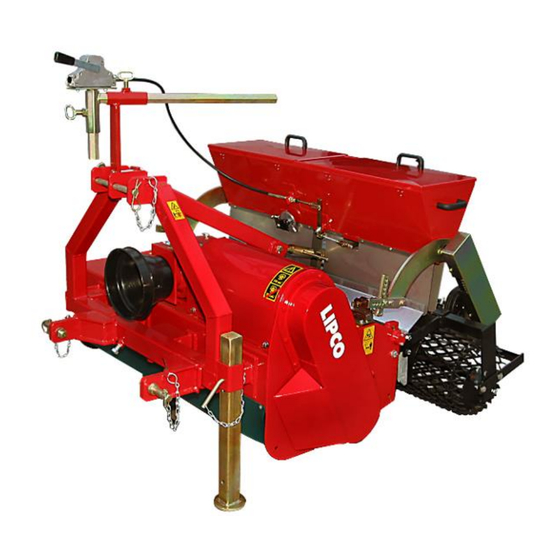

Sowing Machine SMD 100/110/120/140..MA
for mounting on the Reversing Harrow UFD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMD 100 MA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lipco SMD 100 MA

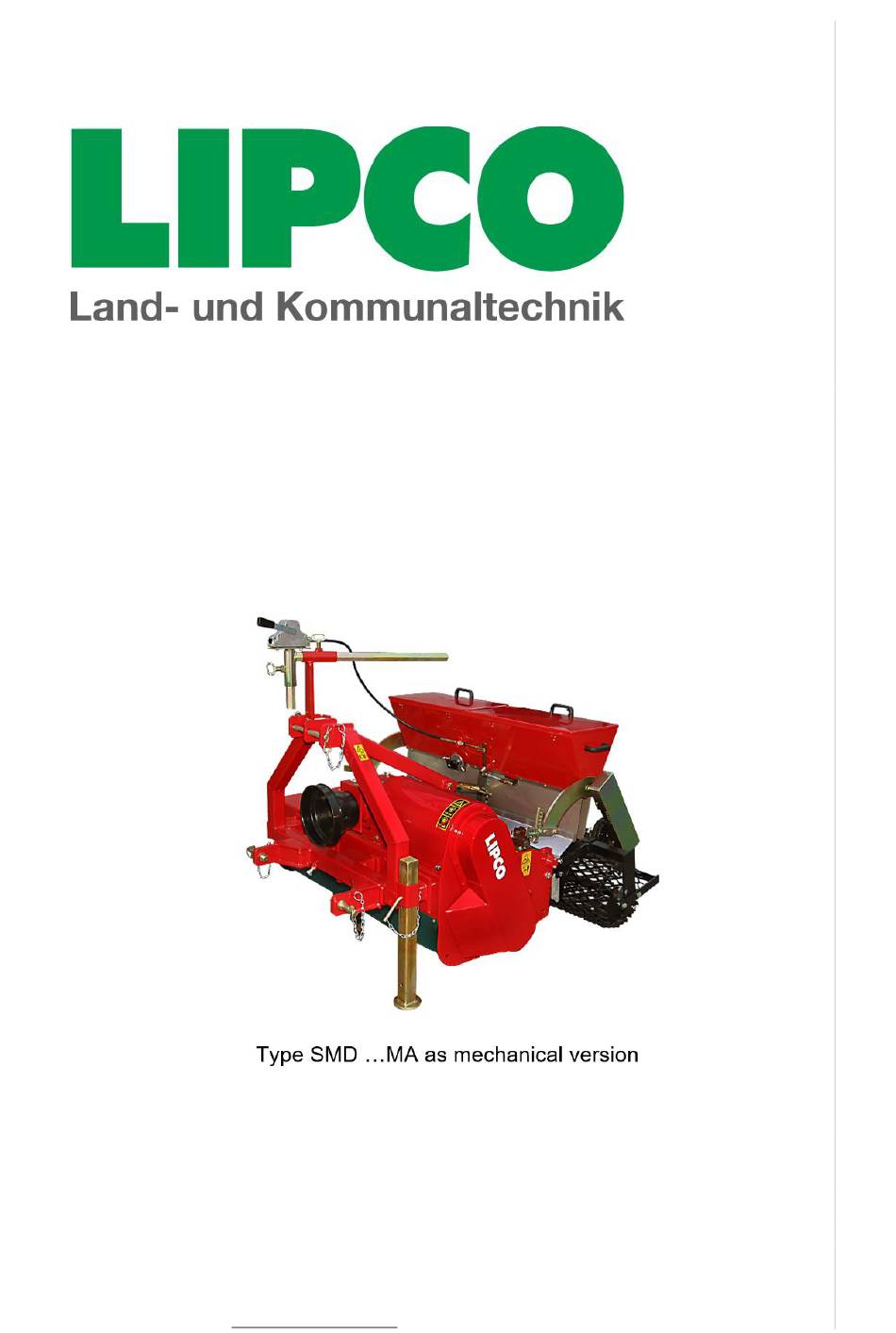

  • Page 1 Translation of the original Sowing Machine SMD 100/110/120/140..MA instructions for mounting on the Reversing Harrow UFD LIPCO GmbH Am Fuchsgraben 5b D-77880 Sasbach Tel. +49 7841 6348-0 +49 7841 6348-300 E-mail mail@lipco.com www.lipco.com...
  • Page 2: Introduction

    Instructions Sowing Machine SMD 100/110/120/140..MA 1. Introduction Dear Customer, We thank you for having chosen a LIPCO Sowing Machine SMD. We hope that you will be happy with your choice. In order that your LIPCO Sowing Machine will serve you well for many years, we ask you to pay close attention to the operating instructions which you will find in this manual.
  • Page 3: Table Of Contents

    Instructions Sowing Machine SMD 100/110/120/140..MA 2. Contents page Introduction Contents Designated use Warning signs attached to the machine Safety regulations Accident prevention Preparation Technical data Mounting the Sowing Machine on the Reversing Harrow UFD 10. Switching the Sowing Machine on and off 11.
  • Page 4: Designated Use

    Reversing Harrow UFD and connected to (small) tractors, is designed to be used for sowing seed over the entire area of grassland. LIPCO Sowing Machine SMD is not designed to apply plant protection products or bait. Any other use for purposes other than those described here is considered contrary to the designated use.
  • Page 5: Warning Signs Attached To The Machine

    Instructions Sowing Machine SMD 100/110/120/140..MA 4. Warning signs attached to the machine Before starting operation, the personnel must have read the operating and safety instructions and must observe them. 5 - 20 Design: mail@bauer-ib.com...
  • Page 6: Safety Regulations

    For your own safety, do not wear wide or loose clothes (e.g. scarves)! • Any work, maintenance and repair on the LIPCO Sowing Machine must be carried out by persons who are familiar with the unit and have been informed about possible risks! •...
  • Page 7: Accident Prevention

    Maintenance or repairs must be carried out by trained persons only. Spare parts must at least comply with the technical requirements specified by the manufacturer! This is only guaranteed for LIPCO original spare parts! • Switch off the tractor and pull the ignition key before making any adjustments, carrying out maintenance or cleaning! •...
  • Page 8 Instructions Sowing Machine SMD 100/110/120/140..MA • Do not wear wide or loose clothes (e.g. scarves)! • Do not, for any reason, climb onto the machine during operation! • In the transport position of the unit, sufficient lateral arresting of the tractor three-point suspension has to be ensured! •...
  • Page 9: Preparation

    Instructions Sowing Machine SMD 100/110/120/140..MA 7. Preparation • Make sure that all safety devices are in place and the unit is in perfect working order! • Check all screws for tight seat and opening slide for smooth running! • Caution! When fastening the Bowden cable, make sure no squeezing is produced! (Danger of kinking) 9 - 20 Design: mail@bauer-ib.com...
  • Page 10: Technical Data

    Instructions Sowing Machine SMD 100/110/120/140..MA 8. Technical data Type Weight Volume (kg) SMD 100 MA SMD 110 MA SMD 120 MA SMD 140 MA Main dimensions SMD 100 MA 1180 SMD 110 MA 1280 SMD 120 MA 1380 SMD 140 MA 1580 The dimensions only apply to the sowing machine SMD …...
  • Page 11: Mounting The Sowing Machine On The Reversing Harrow Ufd

    Sowing Machine SMD 100/110/120/140..MA 9. Mounting the Sowing Machine on the Reversing Harrow UFD The Sowing Machine is mounted on the LIPCO Reversing Harrow UFD, i.e. it can be mounted or dismounted easily. The feed brush is chain-driven. First, the mounting attachment and the protection funnel for the Sowing Machine must be fixed on the carrier machine.
  • Page 12 Instructions Sowing Machine SMD 100/110/120/140..MA Screw holder onto machine body Reversing Harrow. Then mount the Holder Sowing Machine and insert the safety cotter pins. (Fig. 2) Fig. 2 Fasten support Holder Bowden cable to the three- point frame, insert operating unit and arrest it using the wing screws.
  • Page 13: Switching The Sowing Machine On And Off

    Instructions Sowing Machine SMD 100/110/120/140..MA 10. Switching the Sowing Machine on and off Opening and closing by means of the slide take place via the Bowden cable on the Sowing Machine. (Fig. 4) Fig. 4 Slide for opening and closing 11.
  • Page 14: Determining The Seed Quantity

    13. Calculation of the seeding quantity for 1 m²: conversion factor Type: Conversion factor results from relation SMD 100 MA 1.06* between roller circumference SMD 110 MA 0.97* and hopper width) SMD 120 MA 0.88* SMD 140 MA 0.76*...
  • Page 15: Maintenance

    Instructions Sowing Machine SMD 100/110/120/140..MA 14. Maintenance Steps to be carried out in order to maintain the machine in good working condition: • Grease the roller bearings! (Fig. 6) • The drive chain of the Sowing Machine has to be oiled 2-3 times a year! (Fig.
  • Page 16: After Use

    Instructions Sowing Machine SMD 100/110/120/140..MA 15. After use • If the LIPCO Sowing Machine is to remain unused for a longer period, it is necessary to carry out the following steps: • Thoroughly wash and dry the LIPCO Sowing Machine! •...
  • Page 17: Warranty

    Instructions Sowing Machine SMD 100/110/120/140..MA 16. Warranty For more details please refer to: https://www.lipco.com/en/downloads/ 17 - 20 Design: mail@bauer-ib.com...
  • Page 18: Notices

    Instructions Sowing Machine SMD 100/110/120/140..MA 17. Notices 18 - 20 100900-03-EN BA SMD 100_110_120_140 MA / 24.01.2020...
  • Page 19: Declaration Of Conformity

    • EN 1553 4/00, pr EN (144045) 9/97 This declaration of conformity loses its validity, if changes or modifications on the machine were made, which are not approved in writing before by LIPCO. Willi Lipp - Technical director - Sasbach, 2002.11.30...
  • Page 20 20 - 20 Design: mail@bauer-ib.com...
