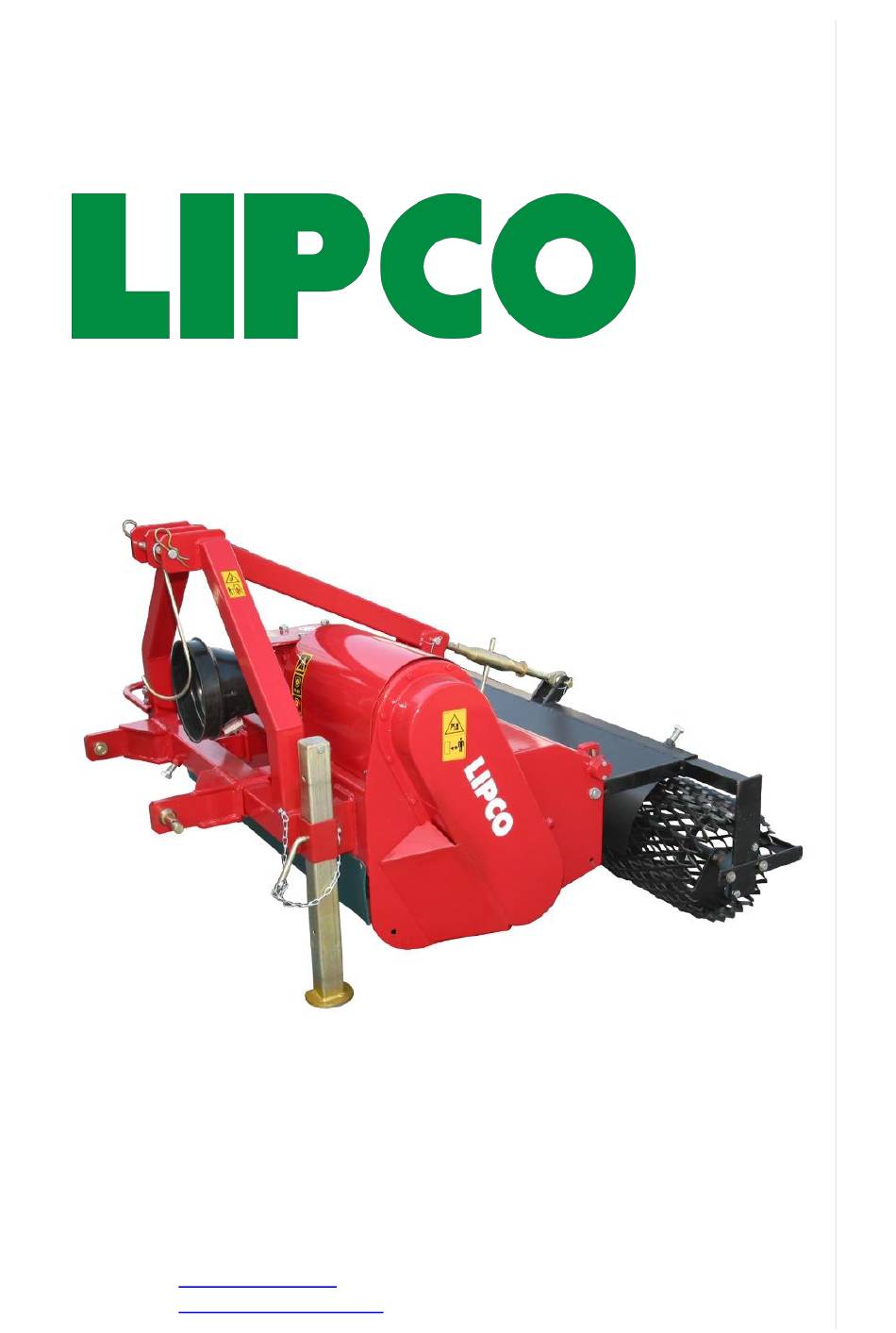

- Page 1 Translation of the original Reversing Harrow UFD 100/110/120/140 instructions LIPCO GmbH Am Fuchsgraben 5b D-77880 Sasbach Tel. +49 7841 6348-0 +49 7841 6348-300 E-Mail mail@lipco.com http://www.lipco.com...
- Page 2 Original instructions Reversing Harrow UFD 100/110/120/140 1. Introduction Dear Customer, We thank you for having chosen a LIPCO Reversing Harrow. We hope that you will be happy with your choice. In order that your LIPCO Reversing Harrow Type UFD will serve you well for many years, we ask you to pay close attention to the operating instructions which you will find in this manual.
-
Page 3: Table Of Contents
Original instructions Reversing Harrow UFD 100/110/120/140 Contents Contents Designated use Warning signs attached to the machine Safety regulations Accident prevention Design Features Preparation Technical Data 10. Connection of the machine to the tractor 11. Connecting the universal joint shaft 12. Adjustment of working depth 13. -
Page 4: Designated Use
Original instructions Reversing Harrow UFD 100/110/120/140 Designated use LIPCO Reversing Harrow UFD, when connected to engine- driven machines from 13 to 38 kW, is designed to till and level the ground in a single operation, thus preparing it for seeding. -
Page 5: Warning Signs Attached To The Machine
Original instructions Reversing Harrow UFD 100/110/120/140 4. Warning signs attached to the machine Before starting operation, the personnel must have read the operating and safety instructions and must observe them. Before commencing maintenance and repair work, switch off the engine and pull the key. - Page 6 Original instructions Reversing Harrow UFD 100/110/120/140 Operate reversing harrow onlythe unit at specified speed! (540 U/min.) Never reach between the rotating universal joint shaft. Do not climb onto the machine while the engine is running. 6 - 24 100102-02-EN BA UFD 100_110_120_140 / 09.08.2019...
-
Page 7: Safety Regulations
Original instructions Reversing Harrow UFD 100/110/120/140 5. Safety regulations The operation of machines containing rotating or moving tools always bears risks. Therefore, you should always follow the safety regulations: • Before starting operation, the personnel must have read the operating and safety instructions and observe them. - Page 8 Original instructions Reversing Harrow UFD 100/110/120/140 • The relevant accident prevention regulations as well as the other generally recognized maintenance, safety, industrial medicine and road traffic rules and instructions must be observed. • The warnings and signs attached to the unit give important information on safe operation;...
-
Page 9: Accident Prevention
Original instructions Reversing Harrow UFD 100/110/120/140 6. Accident prevention Most accidents that occur during work, maintenance or transport of a machine are due to non-observance of the most elementary rules of accident prevention. It is, therefore, necessary that all licensed users (relatives,... - Page 10 Original instructions Reversing Harrow UFD 100/110/120/140 • Do not transport any persons or objects on the unit during work or transport on the road! • Only work with completely protected drive, i.e. joint shaft with complete shaft protection and supplementary protection on tractor and unit.
-
Page 11: Design Features
Original instructions Reversing Harrow UFD 100/110/120/140 7. Design Features LIPCO Reversing Harrow Type UFD is the only machine that, when connected to any type of engine-driven machine from 13 to 38 kW, is capable of tilling, levelling, and preparing the earth for seeding in a single operation. -
Page 12: Preparation
Original instructions Reversing Harrow UFD 100/110/120/140 8. Preparation • Before using the unit, check whether all accident protection devices on tractor, machine and joint shaft are attached correctly and are in functioning order. Before operating the unit, it is imperative to replace or install damaged or missing components! •... -
Page 13: Technical Data
Original instructions Reversing Harrow UFD 100/110/120/140 9. Technical Data Type Weight Required Number of (kg) drive power discs/blades (kW) UFD 100 13.5 UFD 110 UFD 120 UFD 140 Main dimensions UFD 100 1380 1275 UFD 110 1380 1375 UFD 120... -
Page 14: Connection Of The Machine To The Tractor
Original instructions Reversing Harrow UFD 100/110/120/140 10. Connection of the machine to the tractor • Before starting the machine and the tractor, check road and operating safety! • Persons must never be allowed to stand between the tractor and the attachment unit without having secured the vehicle against rolling away by means of the locking brake and / or wheel cocks! •... - Page 15 Original instructions Reversing Harrow UFD 100/110/120/140 • This tractor symbol indicates the tractor side of the joint shaft. Always attach overload protections (e.g. shear pin coupling) on machine side! • Attach the holding chain so that a sufficient pivoting area of the universal joint shaft is guaranteed in all operating positions.
- Page 16 Original instructions Reversing Harrow UFD 100/110/120/140 • Lubricate the universal joint shaft before starting up, see lubrication plan! See also adequate PTO shaft instructions! Fig. 5 • Attention! Only use joint shaft types prescribed by the manufacturer! 16 - 24...
-
Page 17: Adjustment Of Working Depth
LIPCO Reversing Harrow can be attached eccentrically by means of the adjustable three-point frame (except for UFD 100). This is done by loosening the two lock screws and sliding the frame to the desired position. To lubricate the lateral adjustment, a lubrication nipple is mounted on the bottom side of the frame (Fig. -
Page 18: Maintenance
Original instructions Reversing Harrow UFD 100/110/120/140 13. Maintenance Steps to be carried out in order to maintain the machine in good working condition: • Check the correct connection of the universal joint shaft and the safety devices! Attention: Depending on availability,... - Page 19 Original instructions Reversing Harrow UFD 100/110/120/140 • Check the gear oil level in the angular gear via the corresponding plug. The angular gear should be filled with gear oil to the lower edge of the filler neck. • oil change after 30-50 operating hours.
-
Page 20: Replacement Of The Cutting Blades
Clean and lubricate the universal joint shaft! • Grease all unpainted metal parts to protect them against corrosion, cover the LIPCO Reversing Harrow and store it in a dry place so that it will be ready for use any time. •... -
Page 21: Guarantee
Original instructions Reversing Harrow UFD 100/110/120/140 16. Guarantee For more details please refer to: https://www.lipco.com/en/downloads/ 21 - 24 100102-02-EN BA UFD 100_110_120_140 / 09.08.2019... -
Page 22: Notices
Original instructions Reversing Harrow UFD 100/110/120/140 17. Notices 22 - 24 100102-02-EN BA UFD 100_110_120_140 / 09.08.2019... -
Page 23: Ec Declaration Of Conformity
E-Mail mail@bauer-ib.com http://www.lipco.com Denomination: LIPCO Reversing Harrow UFD 100 / 110 / 120 / 140 Serial no: Year of manufacture: The manufacturer declares expressly, that the machinery fulfills all the relevant provisions of the • Directive 2006/42/CE To implement the safety and health requirements as stated in the CE... - Page 24 24 - 24 Design: mail@bauer-ib.com...
