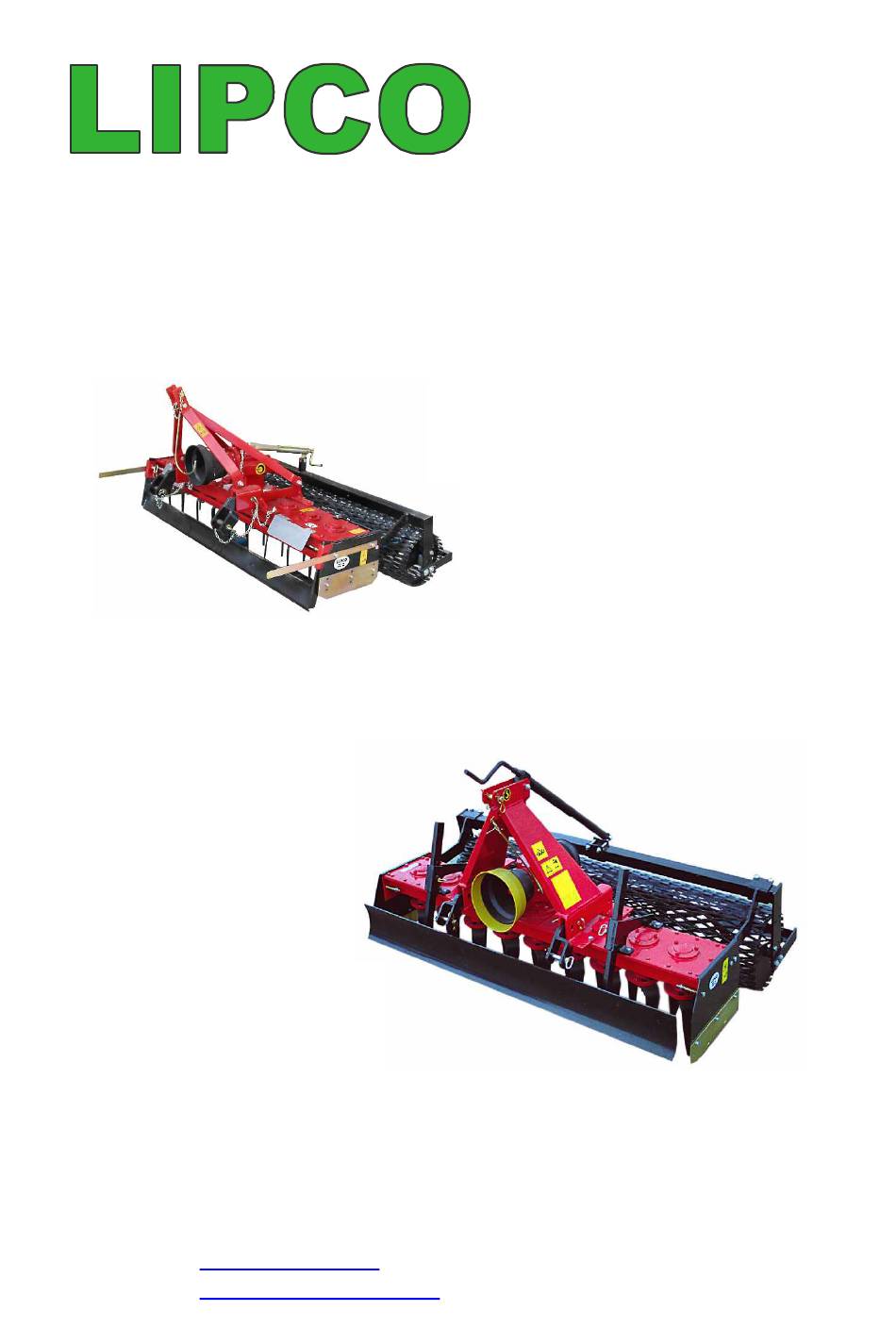

Operating instructions Multipurpose Gyration Harrow Type UKD-L
UKD heavy
Version
LIPCO GmbH
Am Fuchsgraben 5b
D-77880 Sasbach
Tel.
+49 (0) 7841 6068-0
Fax
+49 (0) 7841 6068-10
email
mail@lipco.com
Internet
http://www.lipco.com/
Multipurpose Gyration Harrow Type UKD-S
UKD light
Version
90/110/125/140/155
130/150/190
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lipco UKD-S Series
Summary of Contents for Lipco UKD-S Series
- Page 1 Operating instructions Multipurpose Gyration Harrow Type UKD-L 90/110/125/140/155 Multipurpose Gyration Harrow Type UKD-S 130/150/190 UKD light Version UKD heavy Version LIPCO GmbH Am Fuchsgraben 5b D-77880 Sasbach Tel. +49 (0) 7841 6068-0 +49 (0) 7841 6068-10 email mail@lipco.com Internet http://www.lipco.com/...
- Page 2 Operating instructions Multipurpose Gyration Harrow UKD L/S 2 - 28 06.07.2004 / 00...
- Page 3 Operating instructions Multipurpose Gyration Harrow UKD L/S Introduction Dear Customer, We thank you for having chosen a We hope that you will be happy with your choice. In order that your will serve you well for many years, we ask you to pay close attention to the Operating instructions which you will find in this manual.
-
Page 4: Table Of Contents
Operating instructions Multipurpose Gyration Harrow UKD L/S Contents Page 1. Designated Use 2. Warning signs attached to the machine 3. Safety regulations 4. Accident prevention 5. Construction features 6. Preparation 7. Technical Data 8. Connection of the machine to the tractor 9. -
Page 5: Designated Use
Operating instructions Multipurpose Gyration Harrow UKD L/S 1. Designated Use , when connected to any type of engine-driven machine from 10 to 35 kW, is designed to till and level the ground in a single operation, thus preparing it for seeding. -
Page 6: Warning Signs Attached To The Machine
Operating instructions Multipurpose Gyration Harrow UKD L/S 2. Warning signs attached to the machine Before starting operation, the personnel must have read the operating and safety instructions and must observe them. When operating the hydraulic lift, stay outside the lifting range of the three-point suspension. Never reach between the rotating propeller shaft. - Page 7 Operating instructions Multipurpose Gyration Harrow UKD L/S Do not climb onto the machine while the engine is running. With the drive switched on and the tractor engine running, maintain sufficient distance to rotating tools. 7 - 28 06.07.2004 / 00...
-
Page 8: Safety Regulations
Operating instructions Multipurpose Gyration Harrow UKD L/S 3. Safety regulations The operation of machines containing rotating or moving tools always bears risks. Please always follow the safety regulations: • Before starting operation, the personnel must have read the operating and safety instructions and observe them. •... - Page 9 Operating instructions Multipurpose Gyration Harrow UKD L/S • The relevant accident prevention regulations as well as the other generally recognised maintenance, safety, industrial medicine and road traffic rules and instructions must be observed. • The warnings and signs attached to the unit give important information on safe operation;...
-
Page 10: Accident Prevention
Operating instructions Multipurpose Gyration Harrow UKD L/S 4. Accident prevention Most accidents that occur during work, maintenance or transport of a machine are due to non-observance of the most elementary rules of accident prevention. It is, therefore, necessary that all licensed users (relatives, employees, colleagues) read and observe the rules that follow below: •... - Page 11 Operating instructions Multipurpose Gyration Harrow UKD L/S • Do not wear wide or loose clothes (e.g. scarves)! • Do not transport any persons or objects on the machine during work or transport on the road! • Only work with completely protected drive, i.e. joint shaft with complete shaft protection and supplementary protection on tractor and unit.
-
Page 12: Construction Features
Operating instructions Multipurpose Gyration Harrow UKD L/S 5. Construction features is the only machine that, when connected to any type of engine-driven machine from 10 to 35 kW, is capable of tilling, levelling, and preparing the earth for seeding in a single operation. As shown in Fig. -
Page 13: Preparation
Operating instructions Multipurpose Gyration Harrow UKD L/S 6. Preparation • Before using the unit, check whether all accident protection devices on tractor, machine and joint shaft are attached correctly and are in functioning order. Before operating the unit, it is imperative to replace or install damaged or missing components! •... -
Page 14: Technical Data
Operating instructions Multipurpose Gyration Harrow UKD L/S 7. Technical Data Light Version incl. grid roller and levelling plate Type: Weight Rrequired Number (kg) power (kW) of tines (pcs.) UKD-L 90 10.5 UKD-L 110 13.5 UKD-L 125 UKD-L 140 18.5 UKD-L 155 Main dimensions UKD-L 90 1050... - Page 15 Operating instructions Multipurpose Gyration Harrow UKD L/S Heavy Version incl. grid roller and levelling plate Type: Weight Required Number (kg) power (kW ) of tines (pcs.) UKD-S 130 UKD-S 150 UKD-S 190 Heavy version incl. cage drum roller without levelling plate Type: Weight Required...
- Page 16 Operating instructions Multipurpose Gyration Harrow UKD L/S Attention: As for the trailer loads and semi-trailer loads, the regulations and instructions by the traction vehicle manufacturer must be adhered to. 16 - 28 06.07.2004 / 00...
-
Page 17: Connection Of The Machine To The Tractor
Operating instructions Multipurpose Gyration Harrow UKD L/S 8. Connection of the machine to the tractor • Before starting the machine and the tractor, check road and operating safety! • Persons must never be allowed to stand between the tractor and the attachment unit without having secured the vehicle against rolling away by means of the locking brake and / or wheel cocks! •... -
Page 18: Connecting The Universal Joint Shaft
Operating instructions Multipurpose Gyration Harrow UKD L/S 9. Connecting the universal joint shaft • When the unit has been coupled to the tractor, check the exact length of the universal joint shaft. Very important: Highest possible overlapping has to be aimed at. During operation, the maximum extension of the joint shaft should be half the overlapping distance of the sliding profile. - Page 19 Operating instructions Multipurpose Gyration Harrow UKD L/S • This tractor symbol indicates the tractor side of the joint shaft. Always attach the overload protection on machine side! • Lubricate joint shaft prior to startup, see lubrication plan! (Fig. 5) Fig. 5 •...
-
Page 20: Adjustment Of Working Depth
Operating instructions Multipurpose Gyration Harrow UKD L/S 10. Adjustment of working depth Rotate the adjustment spindle to set the desired working depth.. For machines equipped with adjustment rod, the working depth is adjusted by repositioning the linch pin on the adjustment rod (Figs. 7 + 8). - Page 21 Operating instructions Multipurpose Gyration Harrow UKD L/S The levelling plate (Fig. 9) allows levelling uneven ground and distributing the earth. Make sure that the earth to be moved has already been cultivated. When working on hard ground, the levelling plate should be attached in the uppermost position in order to prevent damage.
-
Page 22: Maintenance Of The Machine
Operating instructions Multipurpose Gyration Harrow UKD L/S 11. Maintenance of the machine Steps to be carried out in order to maintain the machine in good working condition: • Grease the roller bearings (Fig. 10). Fig. 10 Lubricating nipple • Check the correct connection of the universal joint shaft and the safety devices. - Page 23 Operating instructions Multipurpose Gyration Harrow UKD L/S • Check the level of liquid grease in the gearbox via the corresponding plug (Fig. 11). This operation must be carried out when the machine has already been running for a few minutes and the grease has warmed up and become distributed evenly.
-
Page 24: Replacement Of Tines
Operating instructions Multipurpose Gyration Harrow UKD L/S 12. Replacement of tines When replacing the tines, make sure that the machine is secured against unintentional tilting! When working with the unit lifted, always secure the unit mechanically by means of adequate supporting elements! When attaching new tines, make sure that the lock nuts engage firmly in the recesses, preventing them from turning and getting... - Page 25 Operating instructions Multipurpose Gyration Harrow UKD L/S 25 - 28 06.07.2004 / 00...
-
Page 26: Guarantee
Operating instructions Multipurpose Gyration Harrow UKD L/S 14. Guarantee LIPCO products come with a guarantee against factory or assembly defects. The guarantee concerns the replacement of demonstrably defective parts. The guarantee period depends on the legal situation in effect at the time of delivery of the machines to the customer. -
Page 27: Ec Declaration Of Conformity
Internet http://www.lipco.com/ ............................(Nome and complete address of the company) hereby declare in sole responsibility that the product LIPCO Multipurpose Gyration Harrow Type: UKD-L 90, UKD-L 110, UKD-L125, UKD-S 130, UKD-L 140, UKD-S 150,UKD-L 155, UKD-S 190 ............................(Product, type) to which this declaration refers, complies with the relevant basic safety and health requirements of the CE Directive 98/37/CE. - Page 28 28 - 28 06.07.2004 / 00...
