MultiConnect ® microCell Cellular Modem
Overview
The MultiConnect microCell (MTCM2) is a compact communications
device that provides cellular capabilities for fixed and mobile applications.
Package Contents
Your package includes the following (varies with model):
Device 1- MultiConnect microCell cellular modem
Antennas 2 - External antennas
Documents 1 - Quick Start, 1 - Warranty information
Documentation
The following documents are available at
https://www.multitech.com/brands/multiconnect-microcell. Select your
model to find the documents specific for that device.
Document Description
MultiConnect Hardware, regulatory,
microCell MTCM2- and getting started
L4G1 User Guide information.
MultiConnect Steps for getting started.
microCell MTCM2- Ships with the device
L4G1 Quick Start and is available online.
Quectel EGxx AT Multiple documents
Commands Manual, listing AT Commands,
USB Installation USB installation guides,
Guides, and other and other protocols used
related manuals to communicate with
your device. Provided in
a zip file.
Note: If this quick start has been updated, it will be available at that
location.
Quick Start
MultiTech Systems MultiConnect ® microCell Cellular Modem

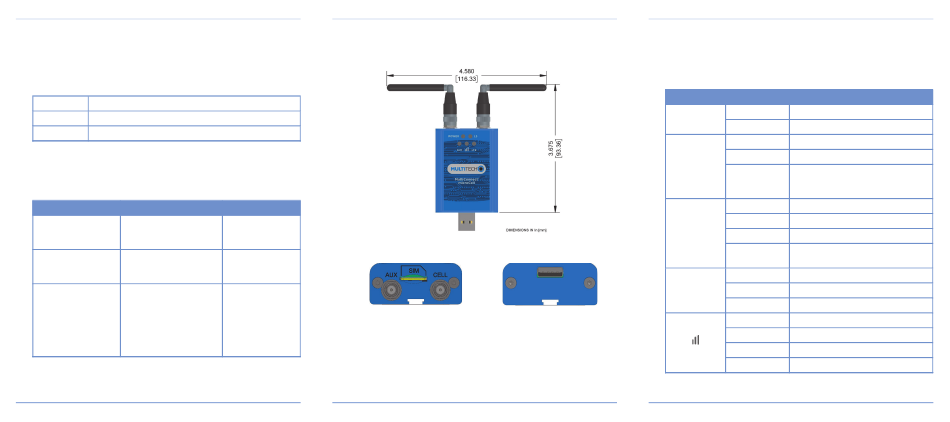

Dimensions
With antennas attached, the dimensions are as follows. Refer to the user
guide for more detailed dimensions.
Part Number
S000728
Side Panels
82104400L
N/A
Connectors
The device has the following connectors:
■
USB 1 USB connector,
■
SMA 2 female SMA connectors, labeled CELL and AUX
■
SIM 1 micro-SIM slot, between the SMA connectors
MultiTech Systems
Quick Start
MultiConnect ® microCell Cellular Modem
LEDs
The MTCM2 has the following LEDs:
Note:
■
Slow is 1 second on 1 second off
■
Fast is 200 milliseconds on 200 milliseconds off
LED Status Description
Power On Device has power
Off Device does not have power
Link Status On Radio is not registered
(LS)
Flash Slow Registered
Off Radio is turned off, in PSM mode,
receiving a firmware update, or SIM
is not inserted.
LTE On LTE
Flash Fast 3G
Flash Slow 2G
Off SIM not inserted or radio
technology unknown
SIM On Ready
Flash Slow Other
Off SIM not inserted
Signal On Excellent
Strength
Flash Fast Good
Flash Slow Fair
Off No signal or SIM not inserted
Quick Start
