Summary of Contents for Multitech MultiConnect microCell MTCM2-L6G1

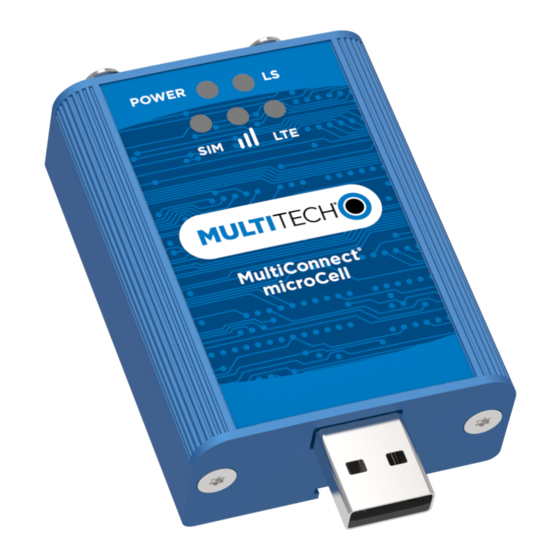

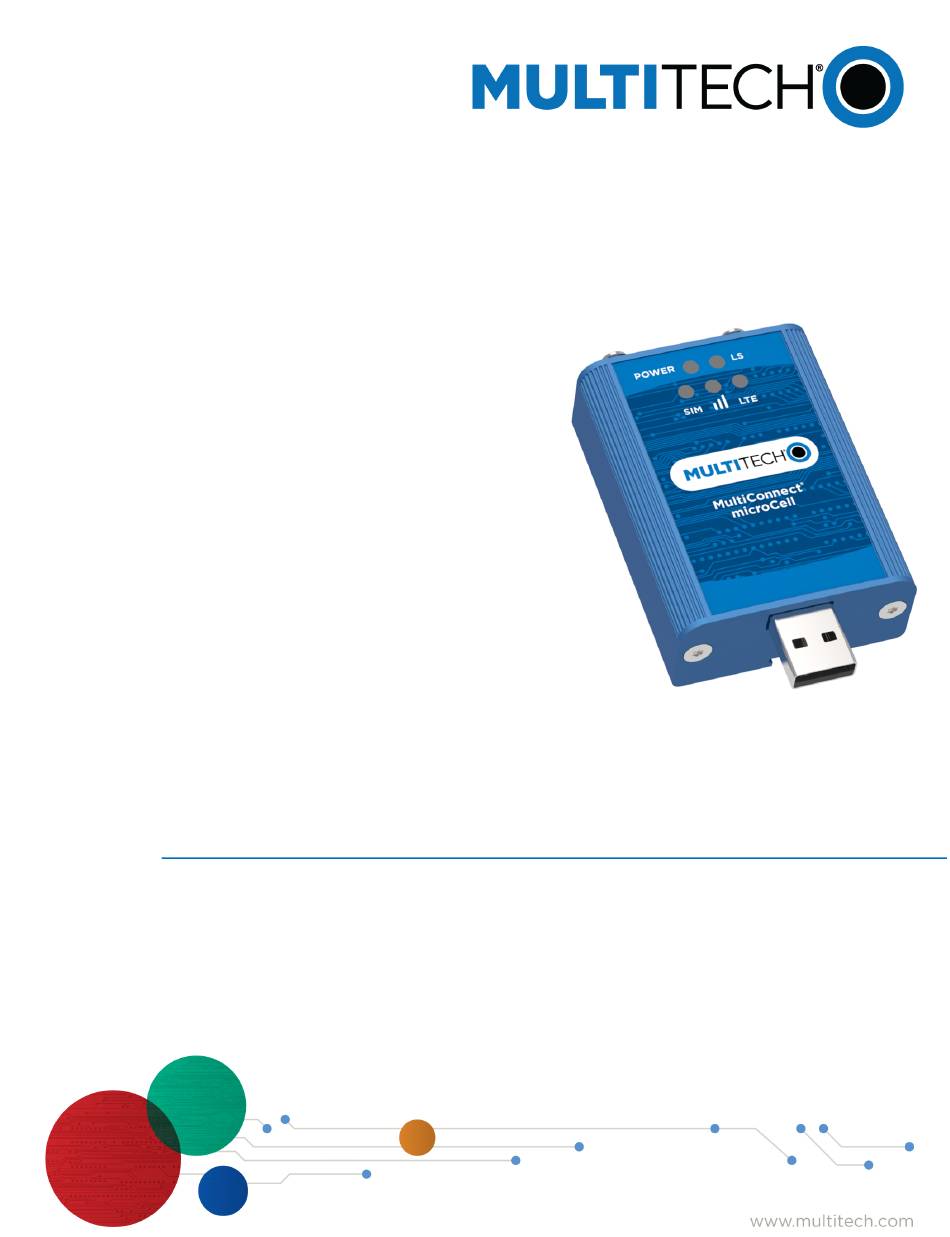

- Page 1 ® MultiConnect microCell MTCM2-L6G1 User Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 About the MultiConnect microCell Modem ......................... 5 Documentation Overview ............................. 5 Dimensions..................................6 MTCM2-L6G1 Specifications ............................7 MTCM2-L6G1 Power Draw ............................8 Side Panels and Connectors............................8 Side Panels ................................. 8 Connectors .................................. - Page 4 CONTENTS Waste Electrical and Electronic Equipment Statement ....................19 WEEE Directive................................19 Instructions for Disposal of WEEE by Users in the European Union ................ 19 REACH Statement ............................... 19 Registration of Substances............................19 Restriction of the Use of Hazardous Substances (RoHS) .................... 20 Information on HS/TS Substances According to Chinese Standards .................
-
Page 5: Chapter 1 - Product Overview
It is intended for use in settings such as vending, smart parking, medical, smart inventory tracking equipment and commercial applications. Documentation Overview The following documents are available at https://www.multitech.com/brands/multiconnect-microcell. Select your model to find the documents specific for that device. Document... -
Page 6: Dimensions
PRODUCT OVERVIEW Dimensions ® MultiConnect microCell MTCM2-L6G1 User Guide... -
Page 7: Mtcm2-L6G1 Specifications
PRODUCT OVERVIEW MTCM2-L6G1 Specifications Category Description General Standards 3GPP E-UTRA Release 10 USB Interface is CDC-ACM and CDC-ETHER compliant TCP/IP Functions FTP, SMTP, SSL, UDP Frequency Bands LTE: B42/B43 CBRS: B48 Speed Data Speed LTE: Max 200Mbps (DL)/Max 15Mbps (UL) Physical Description Weight Device only 2.4 oz (66 g);... -
Page 8: Mtcm2-L6G1 Power Draw
PRODUCT OVERVIEW MTCM2-L6G1 Power Draw Note: MultiTech recommends that you incorporate a 10% buffer into your power source when determining product load. Radio Protocol 3G On/Off Live Average TX Pulse Total Inrush Total Inrush Mode Connection, Measured Amplitude Charge Duration... -
Page 9: Led Descriptions
PRODUCT OVERVIEW LED Descriptions The MTCM2 has the following LEDs: Note: Slow is 1 second on 1 second off Fast is 200 milliseconds on 200 milliseconds off Status Description Power Device has power Device does not have power Link Status (LS) Radio is not registered Flash Slow Registered... -
Page 10: Additional Signal Led Information
PRODUCT OVERVIEW Additional Signal LED Information Signal LED is based on +CESQ RSRP and RSRQ: RSRP RSRQ -10+ Fast -105 -11 to -15 Slow -120 -16 to -19 < -120 < -19 ® MultiConnect microCell MTCM2-L6G1 User Guide... -
Page 11: Chapter 2 - Safety Warnings
SAFETY WARNINGS Chapter 2 – Safety Warnings Radio Frequency (RF) Safety Due to the possibility of radio frequency (RF) interference, it is important that you follow any special regulations regarding the use of radio equipment. Follow the safety advice given below. Operating your device close to other electronic equipment may cause interference if the equipment is inadequately protected. -
Page 12: Interference With Pacemakers And Other Medical Devices
SAFETY WARNINGS Interference with Pacemakers and Other Medical Devices Potential interference Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI). The FDA helped develop a detailed test method to measure EMI of implanted cardiac pacemakers and defibrillators from cellular devices. -
Page 13: Chapter 3 - Installing Drivers
Windows 8 Windows 7 Before connecting your device. Click on your model's page at https://www.multitech.com/brands/multiconnect-microcell Under Downloads, select the sqn_setup_LR4.2.2.0-48388-usb-drivers.exe. Double-click the exe file to launch the installer. Click Yes and then click Next. Read the license agreement. Select I accept the agreement and then click Next. -
Page 14: Uninstall Driver Before Installing Update
INSTALLING DRIVERS Select a directory. Click OK. Click Install. Depending your Windows version, you see a Windows Security window. Check Always trust software from Sequans Communications and then click Install. Click Finish. Uninstall driver before installing update Note: If you previously installed USB drivers for this device, uninstall them before installing or re-installing this driver. -
Page 15: Chapter 4 - Installing The Device
INSTALLING THE DEVICE Chapter 4 – Installing the Device Installing a SIM Card This model requires a CBRS SIM card, which is supplied by your service provider. To install the SIM card: Locate the SIM card slot on the side of the modem. The slot is labeled SIM. Slide the SIM card into the SIM card slot with the contact side facing up as shown. -
Page 16: Troubleshooting The Connection
INSTALLING THE DEVICE AT+CIMI AT+CPIN? Setup and check APN using command AT+CGDCONT=1,”IP”,”apn name” AT+CGDCONT? AT+CGCONTRDP Check signal strength AT+CESQ Check network registration AT+CEREG? AT+COPS? Check modem setting for auto network connection AT+SQNAUTOCONNECT? AT^AUTOATT? Troubleshooting the Connection If the device does not connect to your network: Check the SIM card. -
Page 17: Chapter 5 - Antenna Information
ANTENNA INFORMATION Chapter 5 – Antenna Information Antenna The antenna intended for use with this unit meets the requirements for mobile operating configurations and for fixed mounted operations, as defined in 2.1091 and 1.1307 of the FCC rules for satisfying RF exposure compliance. If an alternate antenna is used, consult user documentation for required antenna specifications. -
Page 18: Chapter 6 - Regulatory Information
REGULATORY INFORMATION Chapter 6 – Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. -
Page 19: Waste Electrical And Electronic Equipment Statement
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 20: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 21: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 22: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...
