S.O.P. - How to assemble BP P96T-16x9Ah
Warning:
Be careful when connect batteries, do not make batteries have short circuit.

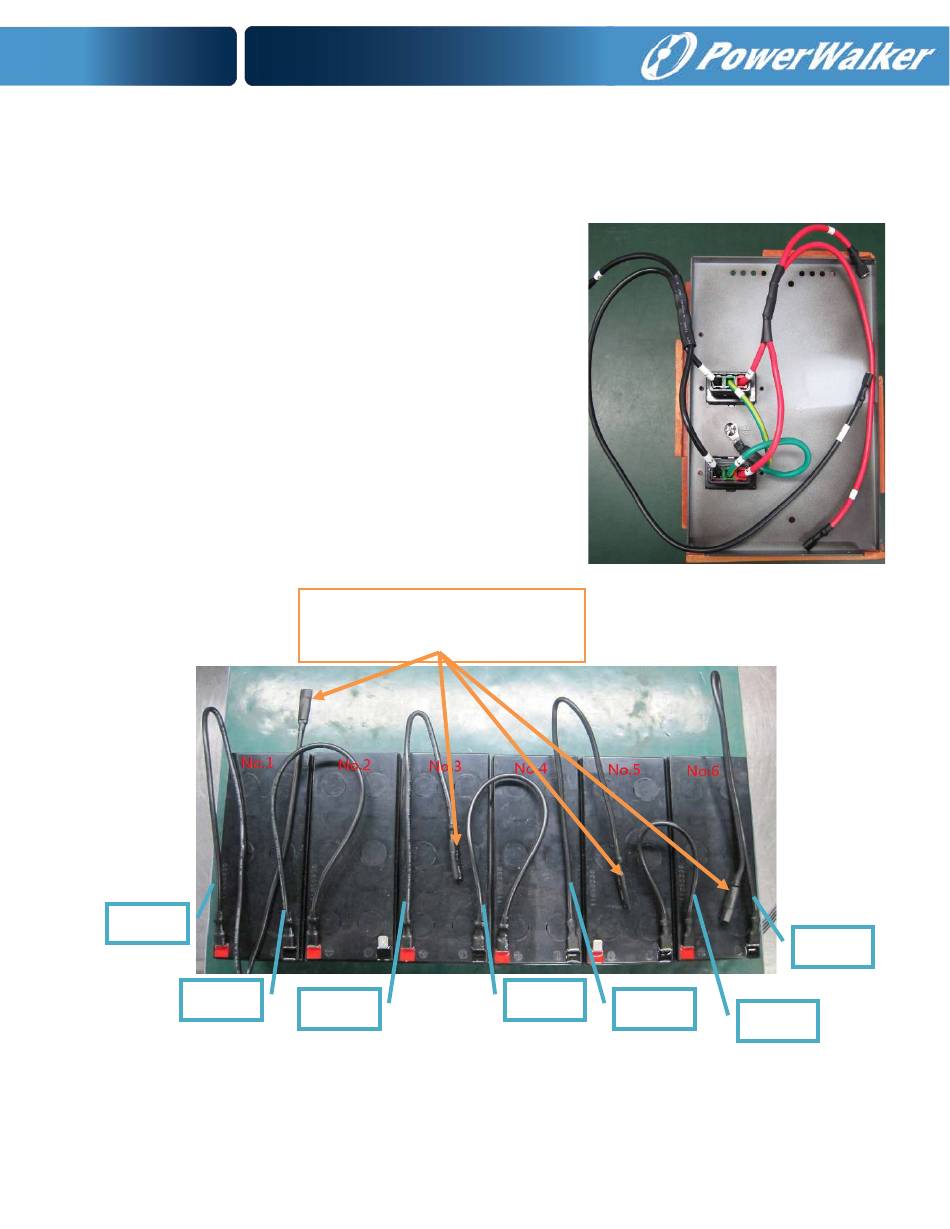

1. The receptacle's wires have been assembled, please
do not dismantle them.
2. Please assemble the 6PCS batteries with black wire and
place 6PCS batteries into the Battery Case as below.
560mm
300mm
Note:
BAT No.1 (-) BAT No2. (+)
BAT No.3 (-) BAT No4. (+)
BAT No.5 (-) BAT No6. (+)
The connectors should insulate
with thermal tube.
260mm
260mm
300mm
370mm
200mm
Advertisement
Related Manuals for PowerWalker BP P96T
Summary of Contents for PowerWalker BP P96T
- Page 1 S.O.P. - How to assemble BP P96T-16x9Ah Warning: Be careful when connect batteries, do not make batteries have short circuit. 1. The receptacle’s wires have been assembled, please do not dismantle them. 2. Please assemble the 6PCS batteries with black wire and place 6PCS batteries into the Battery Case as below.
- Page 2 Note: BAT No.2 (-) BAT No3. (+) BAT No.4 (-) BAT No5. (+)
- Page 3 3. Please fix them and do the opposite side. Pass through the cables 560mm & 370mm to the hole Tie cables 560mm & 300mm (No.4 to No.5) together. 4. Please assemble 10pcs batteries into the Battery Case’s left side and assemble with fixing plates as below.
- Page 4 5. Please connect batteries on the left side with wires as below: Note: BAT No.9 (-) BAT No10. (+) ; BAT No.10 (-) BAT No11. (+) BAT No.11 (-) BAT No12. (+) ; BAT No.12 (-) BAT No13. (+) ; BAT No.13 (-) ...
- Page 5 BAT No.15 (-) BAT No16. (+) Ensure voltage over 80V between BAT No.9 (+) and BAT No.16 (-) Note: BAT No.6 (-) / cable 370mm BAT No7. (+) BAT No.1 (+) / cable 560mm BAT No8. (-) Ensure voltage over 80V between BAT No.7 (-) and BAT No.8 (+) Bat receptacle’s Shorter black wire 3# ...
- Page 6 Note: Tie cables together So you finish assembling batteries and you can fix the cover now.
