Outlet box
Black ("AC IN L")
Receiver
Red (to motor)
Gray (to motor)
Yellow (to motor)
Yellow (motor)
Gray (motor)
Red (motor)

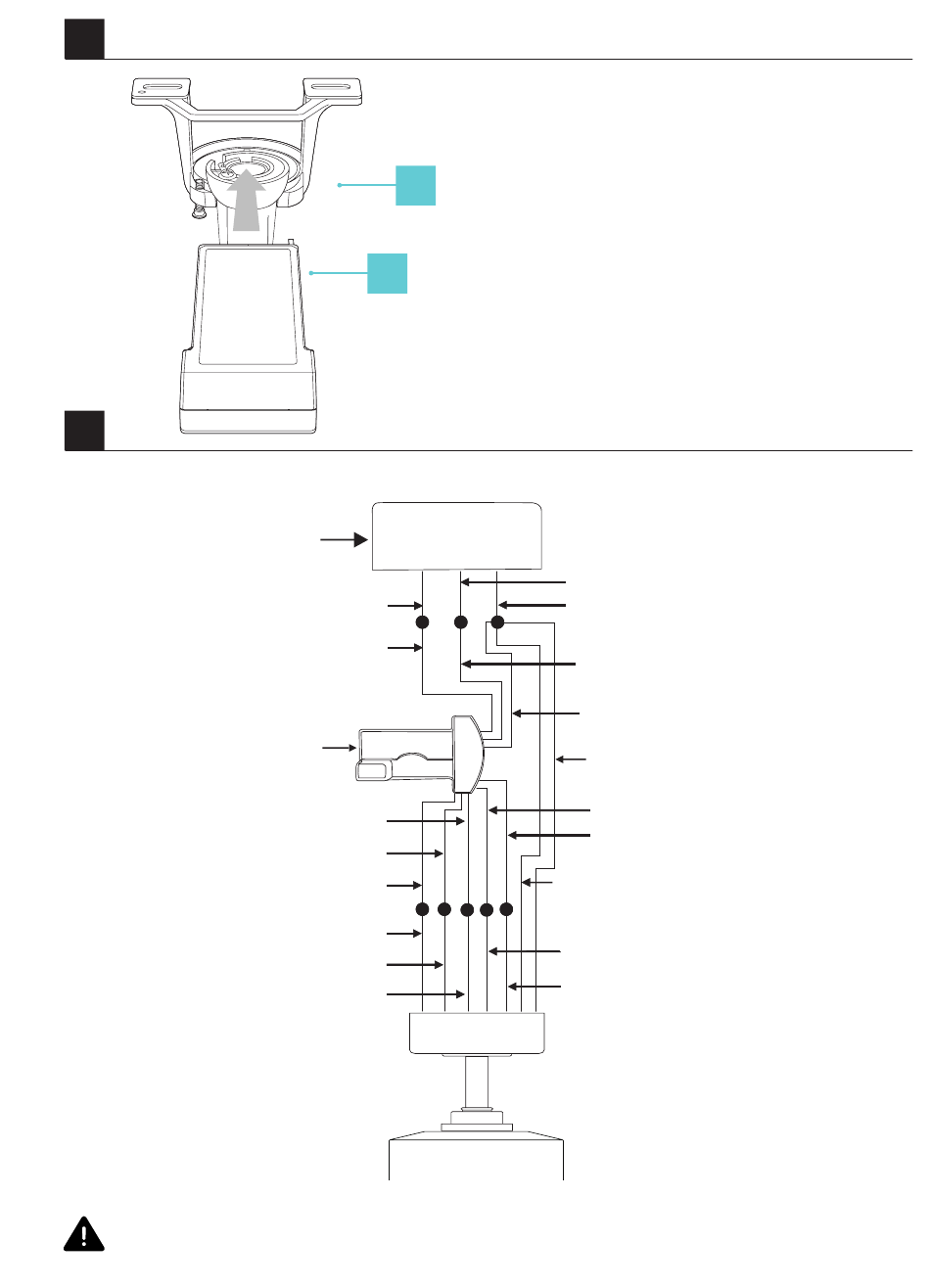

Follow the steps below to connect the fan to your household wiring. Use the plastic wire nuts with your fan.
Secure the plastic wire nuts with electrical tape. Make sure there are no loose strands or connections.
FH-W 1 8 1 1
1
2
Black (hot)
1.
Mounting Bracket
2. Receiver
White (neutral)
Green (Ground)
White ("AC IN N")
Green (Ground)
To hanger ball
Green (Ground)
To hanger bracket
White (for light)
Blue (for light)
Green (Ground)
White (for light)
Blue (for light)
