Summary of Contents for FIBARO FGWP-102

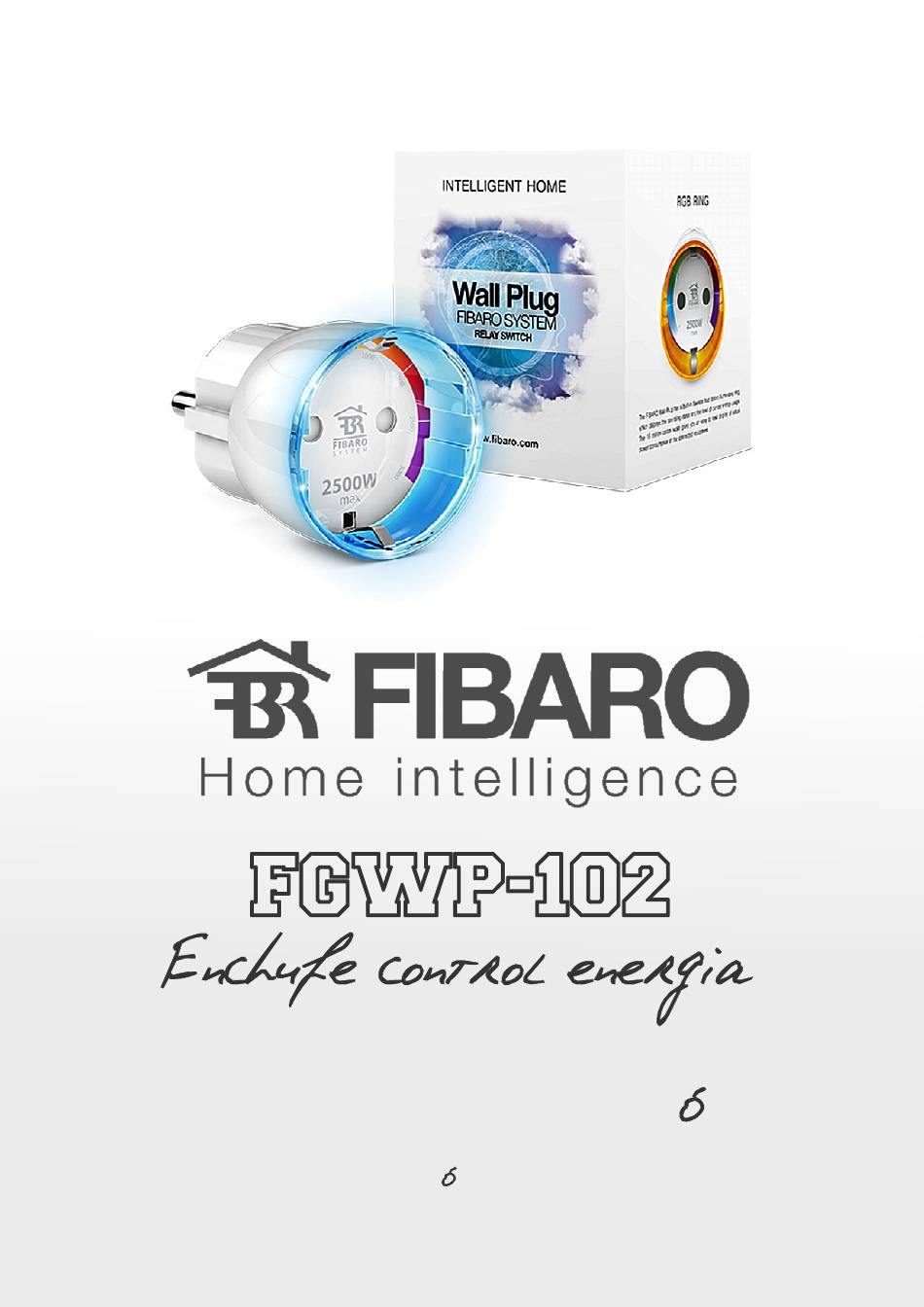

- Page 1 Manual de Operaci n Versi n 1.1...
-
Page 2: Table Of Contents
O P E R A T I N G M A N U A L FIBARO WALL PLUG FGWP-102 CONTENTS v2.1 #1: Description and features #7: Association #2: Basic activation #8: Z-Wave range test #3: Adding the device #9: Advanced parameters... - Page 3 General information about the FIBARO System FIBARO is a wireless smart home automation system, based on the Z-Wave protocol. All of available devices can be controlled through a computer (PC or Mac), smartphone or tablet. Z-Wave devices are not only receivers, but can also repeat the signal, increasing the Z-Wave network’s range.
-
Page 4: 1: Description And Features
#1: Description and features FIBARO Wall Plug is a universal, Z-Wave Plus compatible, remotely controlled outlet adapter. This device may be applied wherever you want to control electrical devices with up to 2500W load. The Wall Plug is equipped with a power and energy metering function. -
Page 5: 2: Basic Activation
#2: Basic activation 1. Plug the device into a socket nearby the main Z-Wave controller. NOTE 2. Set the main controller in (security/non-security) add mode (see When powered, the the controller’s manual). device will indicate Z-Wave status with 3. Quickly, triple click the B-button located on the casing. colour of LED ring: •... -
Page 6: 3: Adding The Device
#3: Adding the device Adding (Inclusion) - Z-Wave device learning mode, allowing to add NOTE the device to existing Z-Wave network. Adding security To add the device to the Z-Wave network: mode must be per- 1. Plug the device into a socket nearby the main Z-Wave controller. formed up to 2 meters from the controller. -
Page 7: 4: Removing The Device
#4: Removing the device Removing (Exclusion) - Z-Wave device learning mode, allowing to NOTE remove the device from existing Z-Wave network. Removing the Wall Plug To remove the device from the Z-Wave network: from the Z-Wave net- work restores all the 1. -
Page 8: 5: Operating The Device
#5: Operating the device Controlling the Wall Plug using the B-button: CAUTION Wall Plug is equipped with a B-button, which allows to use the menu To avoid risk of electri- and additionally perform the following actions: cal shock, do not ope- 1x click: turn controlled device On/OFF, confirm selected menu op- rate the device with tion (if menu is active) - Page 9 3. Release the B-button after LED ring starts pulsing white. To restore visual indications perform above procedure again. Controlling the Wall Plug with FIBARO Home Center controller: The Wall Plug after successful adding is represented in the home Center interface with a single icon. It allows to turn on and off the device and displays current active power and cumulative energy consumption.
-
Page 10: 6: Power And Energy Consumption
#6: Power and energy consumption The Wall Plug allows to monitor the active power and energy con- sumption. Data is sent to the main Z-Wave controller, e.g. home Center. Measuring is carried out by the most advanced micro-con- troller technology, assuring maximum accuracy and precision. Electric active power - power that energy receiver is changing into a work or a heat. -
Page 11: 7: Association
#7: Association Association (linking devices) - direct control of other devices within NOTE the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter Association ensures or scene (may be controlled only through a Z-Wave controller). direct transfer control commands between devices, is The Wall Plug provides the association of three groups: performed without... -
Page 12: 8: Z-Wave Range Test
#8: Z-Wave range test The Wall Plug has a built in Z-Wave network main controller’s range CAUTION tester. To make Z-Wave range test possible, the de- vice must be added Follow the below instructions to test the main controller’s range: to the Z-Wave control- ler. -
Page 13: 9: Advanced Parameters
FIBARO interface as simple options that may be chosen by selecting the appropriate box. In order to configure the Wall Plug (using the FIBARO home Center controller): 1. Go to the device options by clicking the icon: 2. - Page 14 3. Overload safety switch CAUTION This function allows to turn off the controlled device in case of ex- The device has a pro- ceeding the defined power. Controlled device will be turned off even tection that will turn if “Always On” function is active (parameter 1). the load off in the case of detecting current Controlled device can be turned back on via B-button or sending a...
- Page 15 12. Power reporting interval NOTE This parameter defines the time interval of sending at most 5 stand- By default the Wall ard power reports when the power changes by the value set in pa- Plug sends up to 5 re- rameter 11.
- Page 16 Available settings: 0 - control as the Wall Plug 1 - control opposite to the Wall Plug 1 [byte] Default setting: Parameter size: 21. DOWN value - „On/Off (Power)” association group (3) Lower power threshold, used in parameter 23. DOWn value cannot be higher than a value specified in parameter 22.
- Page 17 24. SWITCH ON value - „On/Off” association groups NOTE The value of BASIC SET command frame sent to the devices associat- Setting parameter 24 ed in „On/Off” association groups (2, 3). to appropriate value will result in: „On/Off (Button)” association group - in accordance with parameter 20. 0 - turning off associ- „On/Off (Power)”...
- Page 18 COLOUR SETTINGS 40. Power load for violet colour This parameter determines maximum active power value, which when exceeded, causes the LED ring flash violet. Function is active only when parameter 41 is set to 1 or 2. Available settings: 1000-30000 (100.0-3000.0W, step 0.1W) Default setting: 25000 (2500W) Parameter size: 2 [bytes]...
- Page 19 OTHERS 50. Associations in Z-Wave network security mode This parameter defines how commands are sent in specified asso- ciation groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. This parameter does not apply to 1st „Lifeline”...
-
Page 20: 10: Specifications
#10: Specifications Power supply: 230v AC, 50/60 hz NOTE In case of loads other Rated load current 11A - continuous load than resistive please (for resistive load): observe cosφ and, if necessary, use load Power consumption: up to 1.6W lower than rated. It is recommended not to Power output (for resistive 2.5kW at continuous load... -
Page 21: 11: Regulations
All information, including, but not limited to, information regarding the features, functionality, and/or other product specification are subject to change without notice. Fibaro reserves all rights to revise or upda- te its products, software, or documentation without any obligation to notify any individual or entity. - Page 22 c/ Garcilaso, 213 2º 1ª · 08027 Barcelona · Tel (+34) 934-081-741 · ww.afbdomotics.com...
