FIBARO FGWPx-102 Operating Manual

Universal, z-wave plus compatible,remotely controlled outlet adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CONTENTS

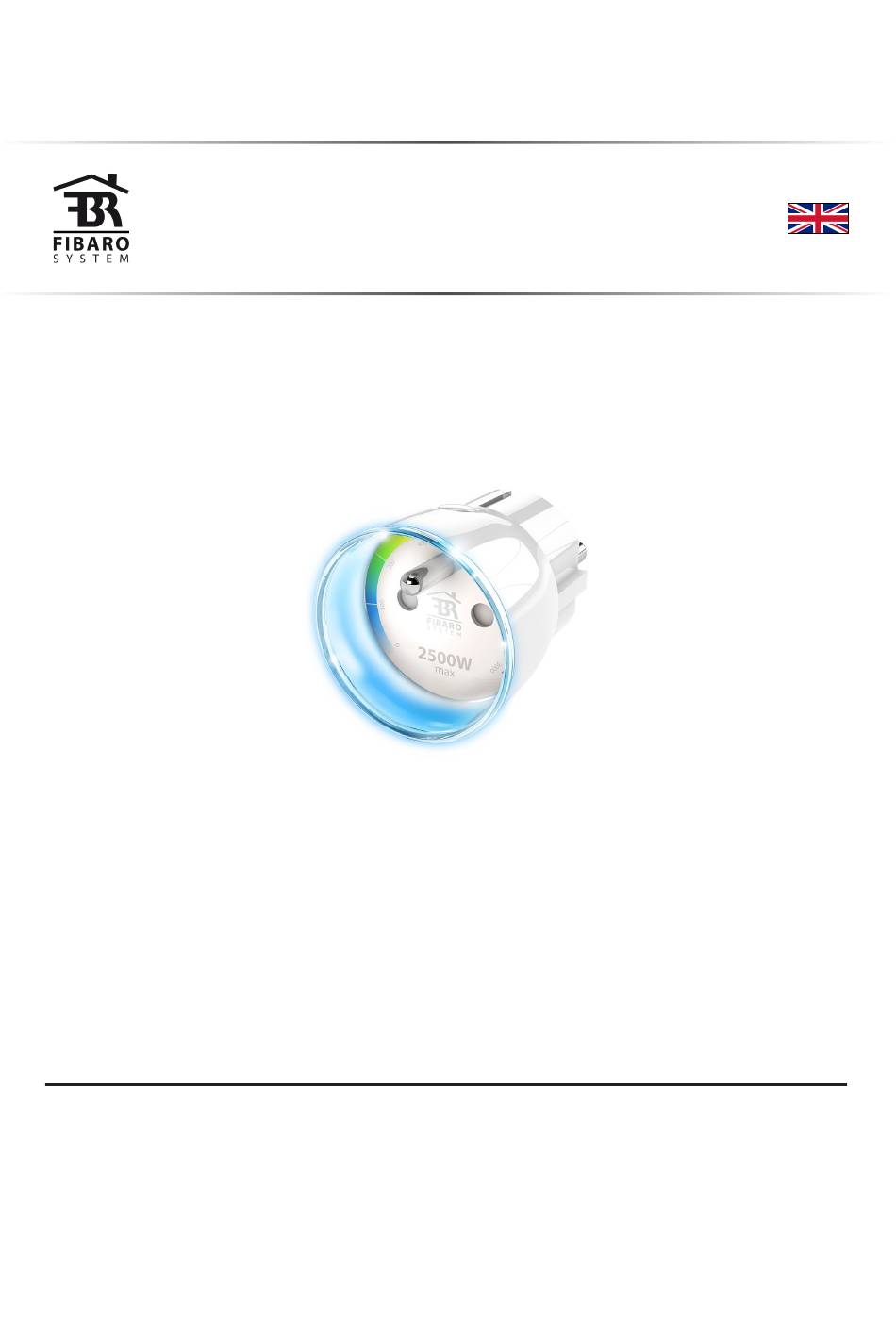

O P E R A T I N G
M A N U A L
FIBARO WALL PLUG
FGWPx-102
4
5
6
7
9
10
ENG
v2.0
11
12
19
20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FGWPx-102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FIBARO FGWPx-102

Summary of Contents for FIBARO FGWPx-102

  • Page 1: Table Of Contents

    O P E R A T I N G M A N U A L FIBARO WALL PLUG FGWPx-102 CONTENTS v2.0 #1: Description and features #7: Z-Wave range test #2: Basic activation #8: Advanced parameters #3: Adding/removing the device #9: Specifications...
  • Page 3 General information about the FIBARO System FIBARO is a wireless smart home automation system, based on the Z-Wave protocol. All of available devices can be controlled through a computer (PC or Mac), smartphone or tablet. Devices are not only receivers, but can also repeat the signal, increasing the Z-Wave network’s range.

  • Page 4: 1: Description And Features

    #1: Description and features FIBARO Wall Plug is a universal, Z-Wave Plus compatible, remotely controlled outlet adapter. This device may be applied wherever you want to control electrical devices with up to 2500W load. The Wall Plug is equipped with a power and energy metering function.

  • Page 5: 2: Basic Activation

    #2: Basic activation 1. Plug the device into a socket nearby the main Z-Wave controller. NOTE 2. Set the main Z-Wave controller in add mode. When powered, the device will indicate 3. Quickly, triple click the B-button located on the casing. Z-Wave status with colour of LED ring: •...

  • Page 6: 3: Adding/Removing The Device

    #3: Adding/removing the device Adding (Inclusion) - Z-Wave device learning mode, allowing to add NOTE the device to existing Z-Wave network. Adding security To add the device to the Z-Wave network: mode must be per- 1. Plug the device into a socket nearby the main Z-Wave controller. formed up to 2 meters from the controller.

  • Page 7: 4: Operating The Device

    3x click: add/remove the device to/from a Z-Wave network Holding: enter/navigate through menu Visual indications: FIBARO Wall Plug is equipped with a LED ring, signalling sensor’s op- erating modes and current active power consumption. In addition the visual indicator may inform of the Z-Wave network range.
  • Page 8 4. Click the B-button to confirm selection. Controlling the Wall Plug with FIBARO Home Center controller: FIBARO Wall Plug after successful adding is represented in the home Center interface with a single icon. It allows to turn on and off the device and displays current active power and cumulative energy consumption.

  • Page 9: 5: Power And Energy Consumption

    #5: Power and energy consumption Wall Plug allows to monitor the active power and energy consump- tion. Data is sent to the main Z-Wave controller, e.g. home Center. Measuring is carried out by the most advanced micro-controller tech- nology, assuring maximum accuracy and precision. Electric active power - power that energy receiver is changing into a work or a heat.

  • Page 10: 6: Association

    BASIC SET command frames). commands are sent only in case of manual operation through the FIBARO Wall Plug in 2nd and 3rd group allows to control B-button. up to 10 regular or multichannel devices per an association group, with 3rd association group the exception of “LifeLine”...

  • Page 11: 7: Z-Wave Range Test

    #7: Z-Wave range test FIBARO Wall Plug has a built in Z-Wave network main controller’s CAUTION range tester. To make Z-Wave range test possible, the de- vice must be added Follow the below instructions to test the main controller’s range: to the Z-Wave control- ler.

  • Page 12: 8: Advanced Parameters

    #8: Advanced parameters FIBARO Wall Plug allows to customize its operation to user’s needs. The settings are available in the FIBARO interface as simple options that may be chosen by selecting the appropriate box. In order to configure FIBARO Wall Plug (using the FIBARO home Center controller): 1.
  • Page 13 Circuit ic reports in the Z-Wave controller. needs additional short FIBARO Wall Plug reports the power load with specified frequency. circuit and overload Below configuration parameters allow to specify how and how fre- protection! quently power load will be reported.
  • Page 14 Available settings: 1-99 - power change in percent 100 - reports are disabled 15 (15%) 1 [byte] Default setting: Parameter size: 12. Power reporting interval This parameter defines how frequently standard power reports (pa- rameter 11) are sent. By default the Wall Plug sends up to 5 reports each 30 seconds, provided the power load changes by 15%.
  • Page 15 Control opposite to the Wall Plug: • switching the Wall Plug on – switch the devices off • switching the Wall Plug off – switch the devices on Available settings: 0 - control as the Wall Plug 1 - control opposite to the Wall Plug Default setting: Parameter size: 1 [byte]...
  • Page 16 24. SWITCH ON value - „On/Off” association groups NOTE The value of BASIC SET command frame sent to the devices associat- Setting parameter 24 ed in „On/Off” association groups (2, 3). to appropriate value will result in: „On/Off (Button)” association group - in accordance with parameter 20. 0 - turning off associ- „On/Off (Power)”...
  • Page 17 Available settings: 1-32400 (in seconds) 600 (10min) Parameter size: 2 [bytes] Default setting: GROUP 40. COLOUR SETTINGS 40. Power load for violet colour This parameter determines active power value, which when exceeded, causes the LED ring flash violet. Function is active only when parame- ter 41 is set to 0 or 1.
  • Page 18 GROUP 50. OTHERS 50. Associations in Z-Wave network security mode This parameter defines how commands are sent in specified asso- ciation groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. This parameter does not apply to 1st „Lifeline”...

  • Page 19: 9: Specifications

    #9: Specifications Power supply: 220-240 v AC +/-10%, 50/60 hz NOTE In case of loads other Rated load current: 11A - continuous load than resistive please observe cosφ and, if Power consumption: up to 1.6W necessary, use load lower than rated. It is Power output (for resistive 2.5kW at continuous load recommended not to...

  • Page 20: 10: Guarantee

    If remote support is insufficient, the Customer shall fill the guarantee claim form (using our website - www.fibaro.com) in order to obtain claim authorization. When the guarantee claim form is submitted correctly, the Customer shall receive the claim confirmation with a unique number (Return Merchandise Authorization -RMA).
  • Page 21 - the Device was misused or the manual was not observed, - the Device was provided by the Customer incomplete, without accessories or nameplate, - it was determined that the fault was caused by other reasons than a material or manufacturing defect of the Device - the guarantee document is not valid or there is no proof of purchase, 13.
