3.2. CHANNEL ASSIGNMENT

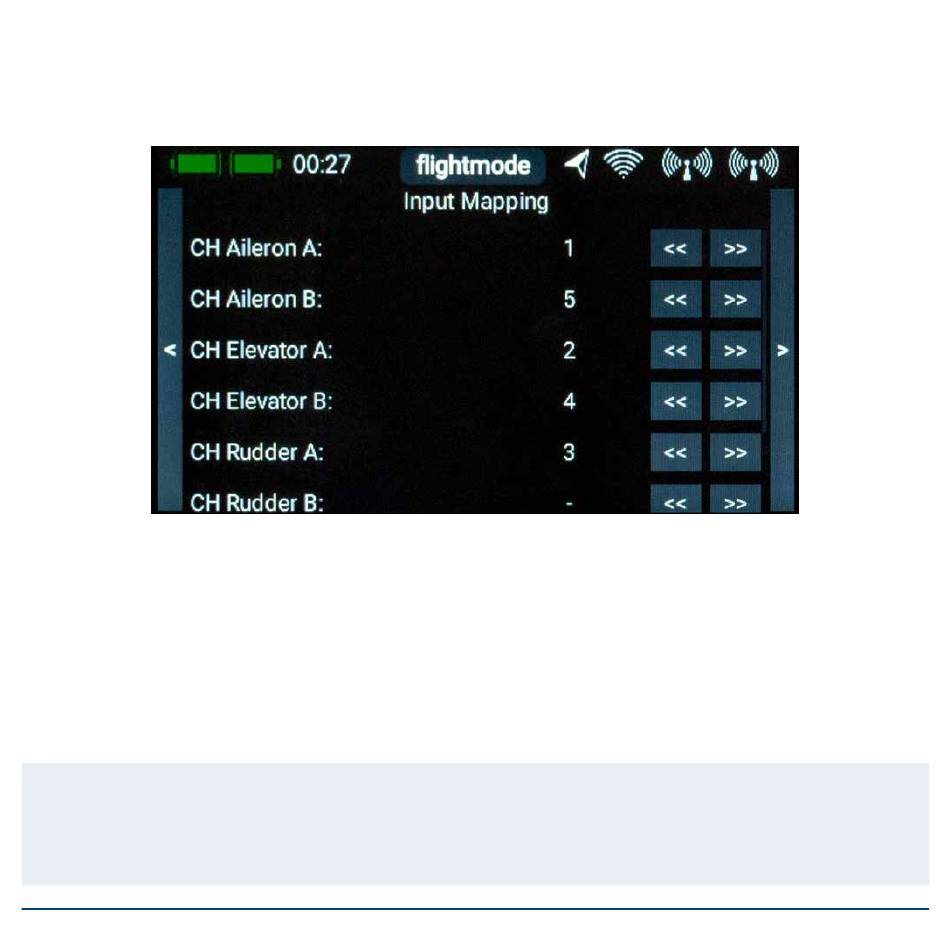

Tap repeatedly on the right arrow until you come to the channel assignment / Input
Mapping display.
At this point you should select the outputs which are to be connected to the corre-
sponding gyro outputs. This means: if you have set the two aileron servos to 1 and
5, then you should enter 1 for Aileron A, 5 for Aileron B.
The Gain channel is a fundamental necessity. In the CORE's Function menu all you
have to do is set up a function controlled by a rotary or linear control and one servo
output (up to +/- 200%). This servo output can be assigned to the Gain channel in
this menu.
Note: take care not to tap too quickly in sequence in the Telemetry menu, since
all values are sent to the receiver by radio, and the altered value is sent back by
the receiver. Other functions in the menu are also affected in many cases, so
