- Page 1 Instruction Manual PBS-TAV...
-
Page 2: Mechanical Installation

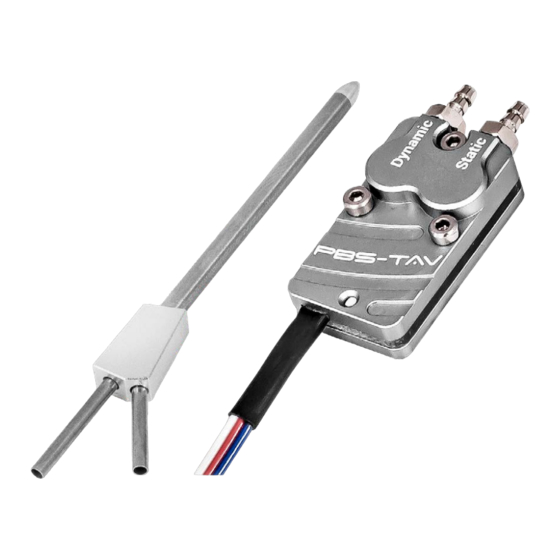

Congratulations on your decision to install a PowerBox PBS-TAV sensor in your model. TAV stands for True Airspeed Vario, and, as the name implies, the PBS-TAV sensor is able to measure the model’s flying speed, altitude and rate of climb. Since the speed and height information are presented with unprecedented precision, the climb rate can be calculated from the data with Total Energy Compensation. - Page 3 - CORE P²BUS If you intend to use the PBS-TAV purely as a telemetry sensor, plug it directly into the recei- ver’s P²BUS input; the system is automatically detected. You may need to carry out a rescan the first time you plug it in.
- Page 4 The PBS-TAV detects the S.BUS2 automatically. As standard the PBS-TAV is generated as GPS-1675 on Slot 8. It is possible to change the Start slot to Slot 16 or Slot 24 with the help of Terminal and the USB Interface Adapter.
- Page 5 Total Energy Compensation using Terminal. - Graupner HoTT In the HoTT system the PBS-TAV is registered as GPS and vario. The alarm thresholds and the channel for the electronic adjustment of Total Energy Compensation can be set with the help of Terminal.
- Page 6 Once you have set the value by test-flying the model, you can set the factor permanently in the PBS-TAV. The set-up channel is then automatically disabled and displayed as –. PowerBox-Systems − World Leaders in RC Power Supply Systems...
-
Page 7: Technical Data
5. TECHNICAL DATA Operating voltage 4.0 V - 9.0 V Current consumption operation max. 30 mA Supported remote control systems PowerBox, Jeti, Futaba, Multiplex, Graupner Supported telemetry systems P²-BUS, FastTrack, Jeti-EX, S.BUS2, M-Link, HoTT Dimensions 30 x 17 x 9 mm Weigh 14 g Temperature range... -
Page 8: Service Note
They are guaranteed “Made in Germany”! That is why we are able to grant a 24 month guarantee on our PBS-TAV from the initial date of purchase. The guarantee covers proven material faults, which will be corrected by us at no charge to you. -
Page 9: Liability Exclusion
For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the PBS-TAV , or which are connected with such use in any way. Regardless of the legal arguments employed, our obligation to pay compensation is limited to the invoice total of our products which were involved in the event, insofar as this is deemed legally permissible. - Page 10 01/2022 PowerBox-Systems GmbH Ludwig-Auer-Straße 5 86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
