- Page 1 Instruction Manual GPS ii...
-
Page 2: Product Description

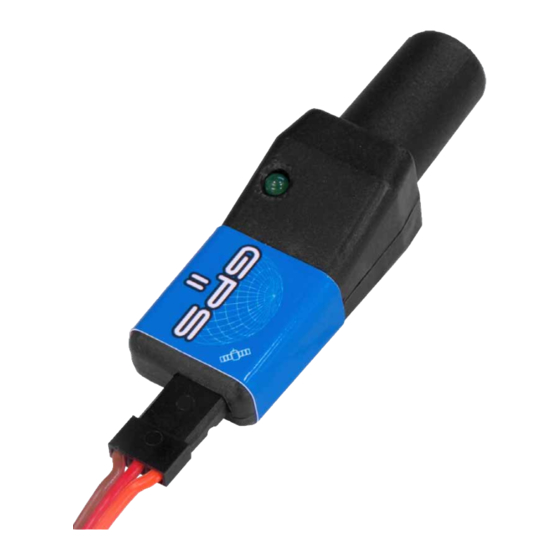

1. PRODUCT DESCRIPTION The GPS sensor was originally introduced to provide a means of speed-depen- dent gain adjustment for our iGyro, but the GPS II is an entirely new development, and can now be used with all current telemetry systems. - Page 3 Features: - Latest generation of GPS - Helical aerial for panoramic reception (even inverted) - Reception even under difficult conditions - Fast response to speed changes - GPS status indicator LED - Accurate 3D speed - Altimeter function - Distance function - Distance covered - Geo co-ordinates - Supports the following telemetry systems:...
- Page 4 Patch-lead socket 3. INITIAL STEPS, SETTING UP THE UNIT By default the GPS II is set up to work with the iGyro and the M-Link telemetry system. If the GPS is required to work with a different telemetry system, it must first be set up to suit.
- Page 5 The next step is to start the Terminal program: www.powerbox-systems.com...
- Page 6 The GPS configuration option is used to set up the GPS II for your intended pur- pose. PowerBox-Systems − World Leaders in RC Power Supply Systems...
- Page 7 Futaba S-BUS 2: no configuration possible; all alarms are set up at the trans- mitter. Jeti EX BUS: alarms can be entered both at the GPS II and at the transmitter. Graupner HoTT: alarms are set up at the GPS II.
- Page 8 4. INSTALLATION, CONNECTIONS Since the GPS II features a radial aerial, it can be installed in any attitude. Ideally the aerial should face up or to one side. The only important point to observe when installing the unit is that there should be no shielding materials in the vicinity, as large areas of carbon fibre or metal have an adverse effect on reception.
- Page 9 If new functions become available, or improvements are made to the performan- ce of the GPS II, these can be loaded in just a few minutes by means of a software update. Once again this requires PowerBox Terminal and a USB interface.
- Page 10 Once the correct file is located, click on: Carry out update now The GPS II is ready for use again when the status indictor reaches 100%. 7. INFORMATION ON ACCURACY There is a widespread belief that GPS cannot measure speed accurately in three-dimensional space, but this is not so.
-
Page 11: Specification
14 g incl. patch-leads Dimensions: 58 x 18 x 17 mm 9. SET CONTENTS - Y-lead - GPS II - Self-adhesive pad - Patch-lead, 24 cm - Operating instructions 10. SERVICE NOTE We are anxious to offer good service to our customers, and to this end we have set up a Support Forum which deals with all queries concerning our products. -
Page 12: Guarantee Conditions
11. GUARANTEE CONDITIONS At PowerBox-Systems we insist on the highest possible quality standards in the development and manufacture of our products. They are guaranteed “Made in Germany”! That is why we are able to grant a 36 month guarantee on our GPS ll from the initial date of purchase. -
Page 13: Liability Exclusion
12. LIABILITY EXCLUSION We are not in a position to ensure that you observe our instructions regarding installation of the GPS ll, fulfil the recommended conditions when using the unit, or maintain the entire radio control system competently. For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the GPS ll, or which are connected with such use in any way. - Page 14 11/2017 PowerBox-Systems GmbH certificated according to DIN EN ISO 9001:2008 Ludwig-Auer-Straße 5 D-86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-22 45 9 www.powerbox-systems.com...
