Ricoh 3800H Maintenance Manual

G776-8517B

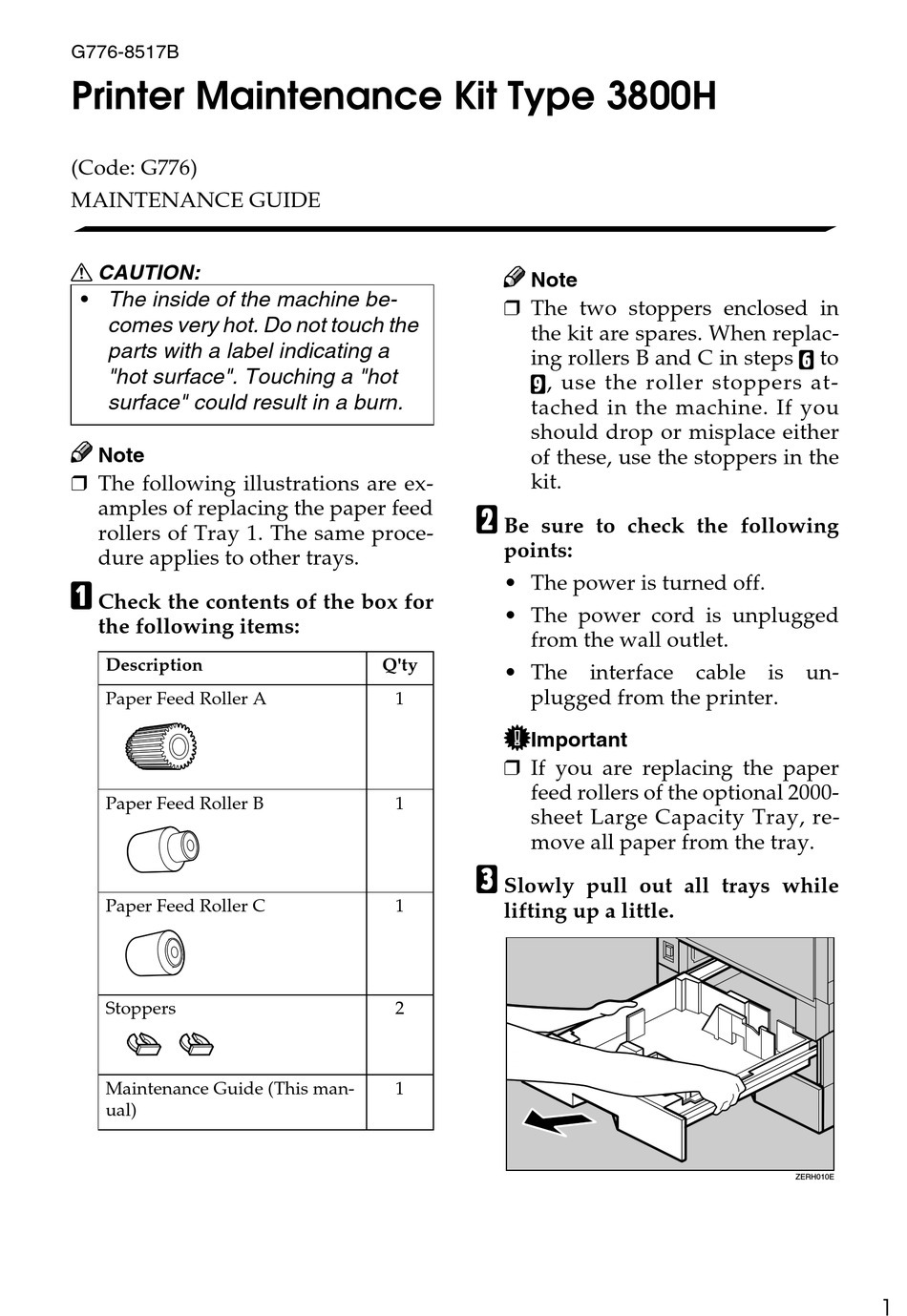

Printer Maintenance Kit Type 3800H
(Code: G776)
MAINTENANCE GUIDE
R CAUTION:
• The inside of the machine be-
comes very hot. Do not touch the
parts with a label indicating a
"hot surface". Touching a "hot
surface" could result in a burn.
Note
❒ The following illustrations are ex-
amples of replacing the paper feed
rollers of Tray 1. The same proce-
dure applies to other trays.
A
Check the contents of the box for
the following items:
Description
Paper Feed Roller A
Paper Feed Roller B
Paper Feed Roller C
Stoppers
Maintenance Guide (This man-
ual)
Note
❒ The two stoppers enclosed in
the kit are spares. When replac-
ing rollers B and C in steps
I
, use the roller stoppers at-
tached in the machine. If you
should drop or misplace either
of these, use the stoppers in the
kit.
B
Be sure to check the following
points:
• The power is turned off.
• The power cord is unplugged
from the wall outlet.
Q'ty
• The interface cable is un-
plugged from the printer.
1
Important
❒ If you are replacing the paper
feed rollers of the optional 2000-
1
sheet Large Capacity Tray, re-
move all paper from the tray.
C
Slowly pull out all trays while
1
lifting up a little.
2
1
F
to
ZERH010E
1
