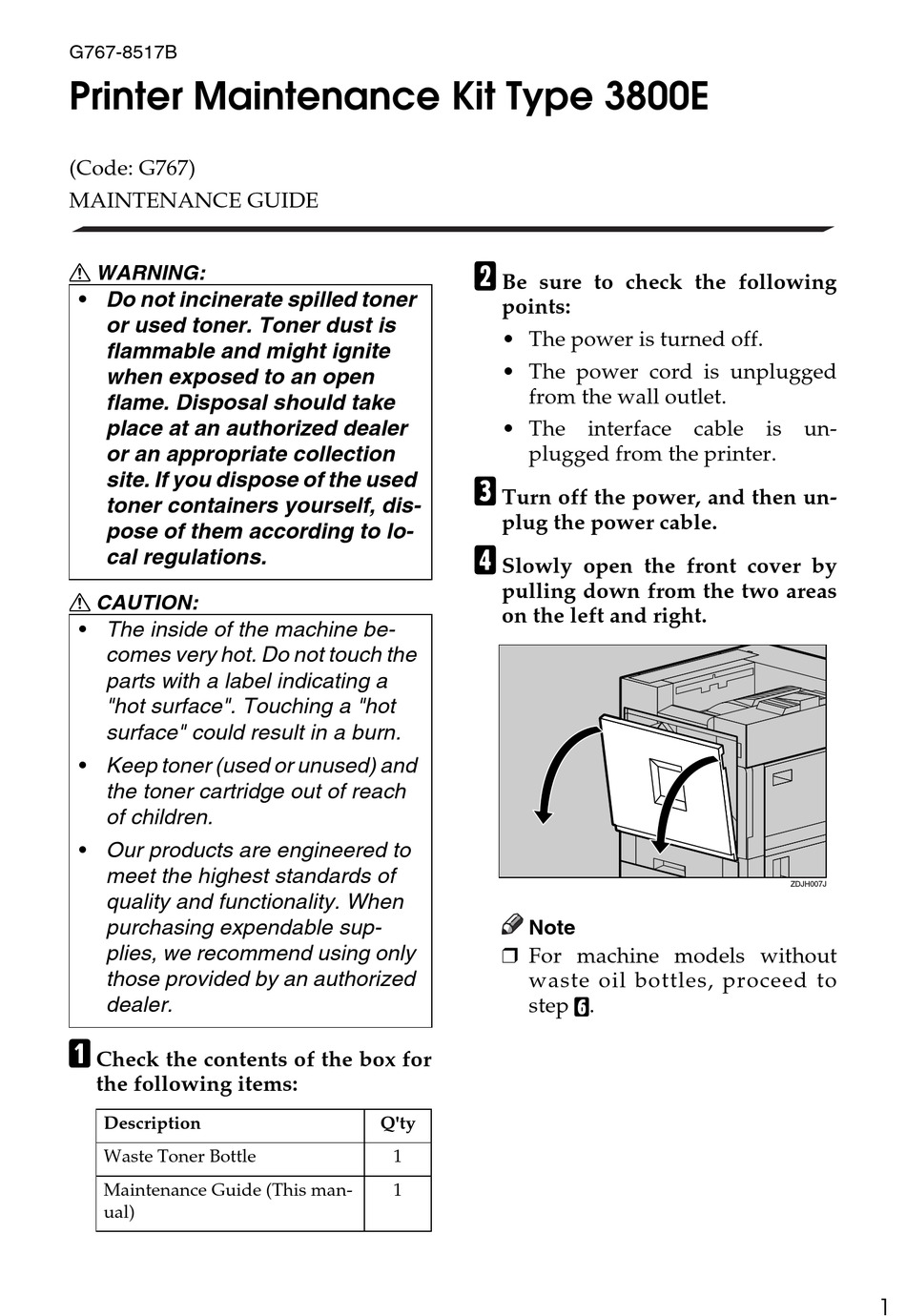

G767-8517B
Printer Maintenance Kit Type 3800E
(Code: G767)
MAINTENANCE GUIDE
R WARNING:
• Do not incinerate spilled toner
or used toner. Toner dust is
flammable and might ignite
when exposed to an open
flame. Disposal should take
place at an authorized dealer
or an appropriate collection
site. If you dispose of the used
toner containers yourself, dis-
pose of them according to lo-
cal regulations.
R CAUTION:
• The inside of the machine be-
comes very hot. Do not touch the
parts with a label indicating a
"hot surface". Touching a "hot
surface" could result in a burn.
• Keep toner (used or unused) and
the toner cartridge out of reach
of children.
• Our products are engineered to
meet the highest standards of
quality and functionality. When
purchasing expendable sup-
plies, we recommend using only
those provided by an authorized
dealer.
A A A A
Check the contents of the box for
the following items:
Description
Waste Toner Bottle
Maintenance Guide (This man-
ual)
B B B B
Be sure to check the following
points:
• The power is turned off.
• The power cord is unplugged
from the wall outlet.
• The interface cable is un-
plugged from the printer.
C C C C
Turn off the power, and then un-
plug the power cable.
D D D D
Slowly open the front cover by
pulling down from the two areas
on the left and right.
Note
❒ For machine models without
waste oil bottles, proceed to
step
Q'ty
1
1
F
.
ZDJH007J
1
