FrontRow symbio 5201R Installer's Manual page 20

Install the Receiver (cont.)
6. Connect free end of UTP Cat 5e to CA1000 or CM3000 amplifier as shown in
the following figures:

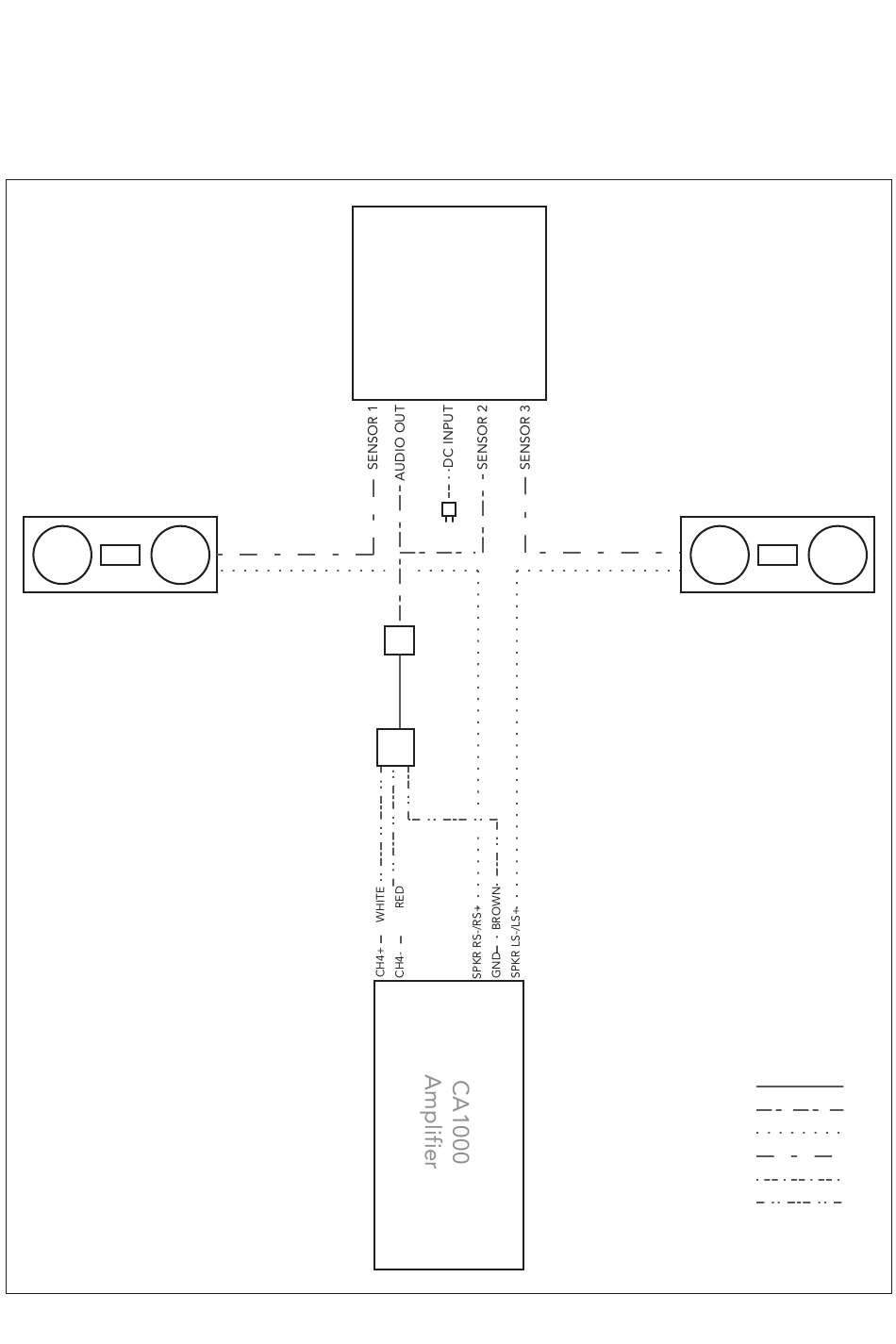

CA1000 Symbio-ezRoom basic connections
Symbio Wireless
Mic Receiver
IR Speaker IR Speaker
RJ45-RJ45 Adapter
TB8
UTP Cat 5e cable
NOTE: This is a schematic
Adapter cable
illustration intended to clarify
Speaker cable
the relationship of components
Sensor cable
to each other. The locationof jacks
Power cable
shown here may not reflect their
TB8 wire
true position on specific devices.
18
