FrontRow symbio 5201R Installer's Manual page 18

Install the Wall Sensor

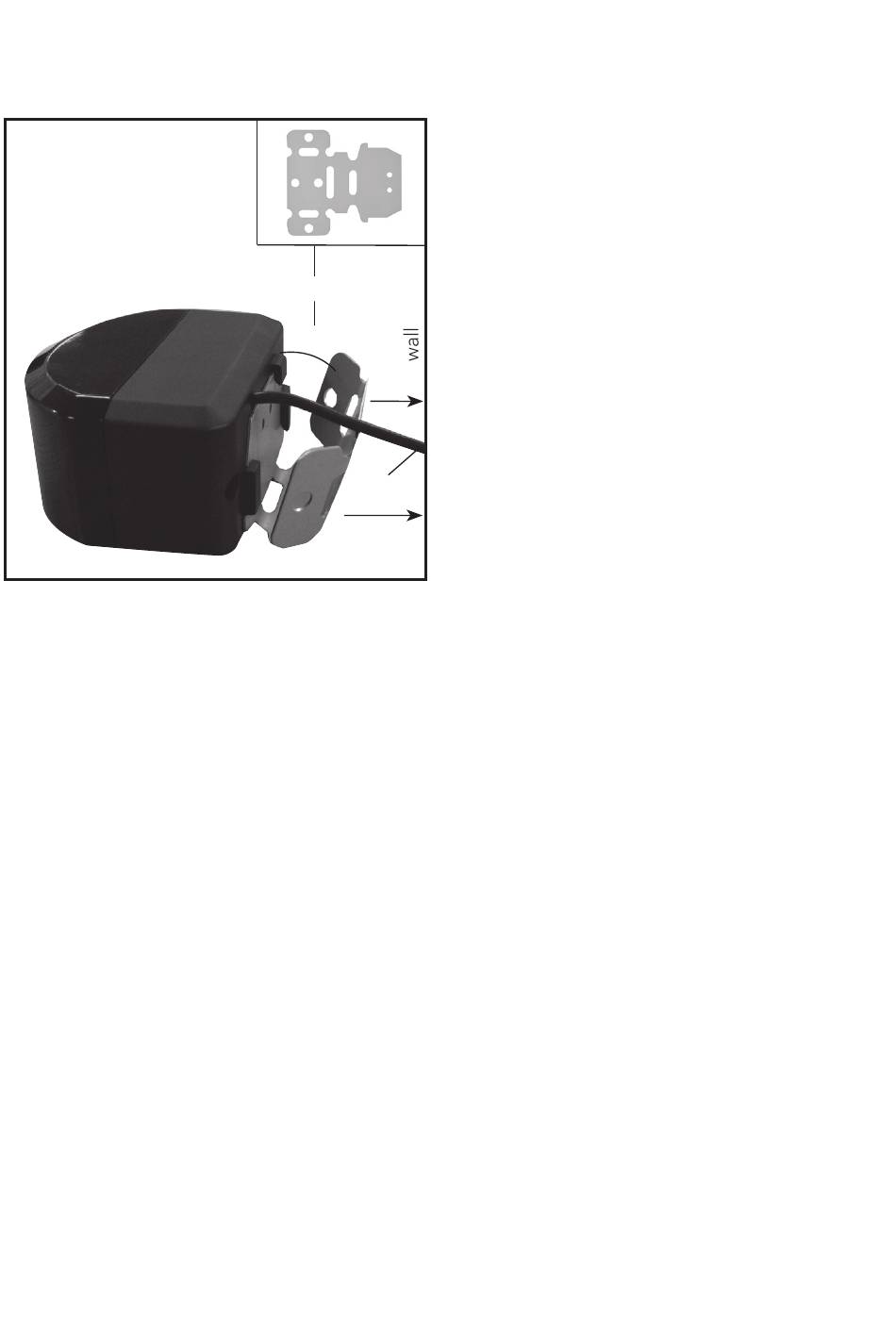

wall sensor features
ceiling
1
wall sensor bracket (bent)
2
sensor connector
16
1
bend
2
If you're installing wall sensors:
1. Locate the spots you marked in chapter 4
for sensor placement.
2. Bend sensor bracket so that when placed
on the wall, the sensor will face the center
of the section of the room it's serving (see
chapter 4).
3. Slide bracket onto the back of the sensor.
4. Attach the sensor to the cable leading to
the receiver.
5. Press the bracket onto the wall firmly.
Use mounting screws provided to secure
bracket to wall.
