Install the Receiver

1. Position the receiver
1. Place the receiver near the FrontRow CA1000 or CM3000 amplifier to
reduce cable length as much as possible. The receiver does NOT need to be
user-accessible.
2. Ensure that the receiver is installed in compliance with all applicable electrical
and fire standards.
3. Connect power supply to receiver and plug into power outlet.
DO NOT bundle the FrontRow power supply (or any power supply) along with the
sensor cable.
DO NOT place the FrontRow power supply (or any power supply) directly next to or
on top of the receiver.

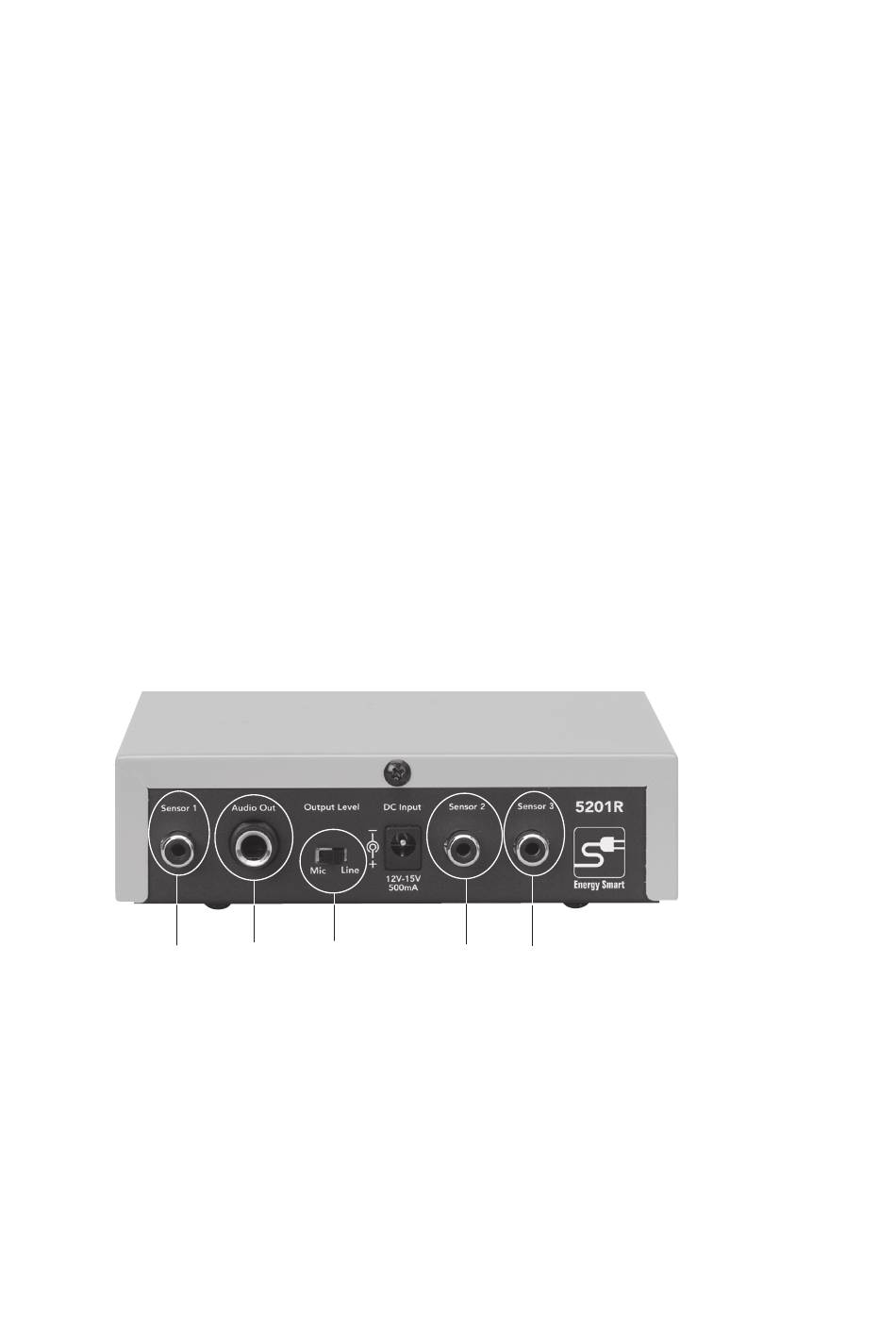

2. Connect cables to receiver
1. Set the Mic/Line switch to Line
2. Connect sensor cables to sensor inputs Sensor 1 and/or Sensor 3
3. Connect adapter cable to Audio Out and Sensor 2.
2
4. Connect RJ45-RJ45 adapter to
adapter cable
5. Connect UTP Cat 5e cable to RJ45-RJ45 adapter
1
3 2
3
