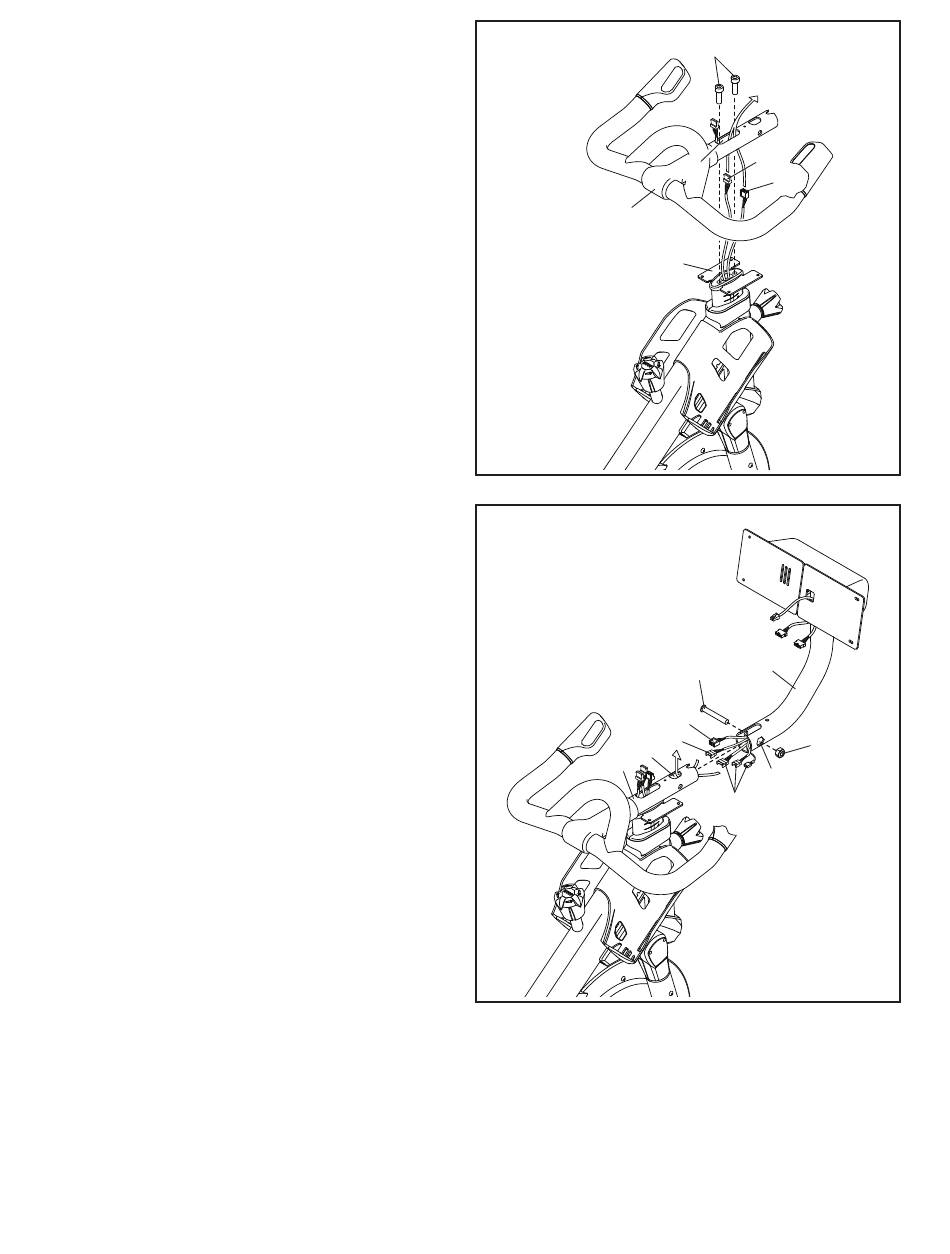

3. While a second person holds the Handlebar
(97) near the Handlebar Post (7), route the Main
Wire (146) and the Ethernet Cable (147) upward
through the long slot (A) in the Handlebar.
Tip: Avoid pinching the wire and the cable.
Attach the Handlebar (97) to the Handlebar
Post (7) with two M10 x 30mm Screws (121).
IMPORTANT: Firmly tighten the Screws.
4. While a second person holds the Console
Arm (66) near the Handlebar (97), insert the
Extension Cable (151), the Control Extension
Wire (153), and the Extension Wire (150) into
the end of the Handlebar.
Tip: Avoid pinching the wires and the cable.
Slide the Console Arm (66) onto the Handlebar
(97). Then, pull the Extension Cable (151), the
Control Extension Wire (153), and the Extension
Wire (150) upward through the short slot (B) in
the Handlebar.
Attach the Console Arm (66) with an
M10 x 55mm Bolt (102) and an M10 Locknut
(116). Make sure that the Locknut is in the
hexagonal hole (C); firmly tighten the Bolt.
3
97
Avoid pinching
the wire and
the cable
4
Avoid pinching
the wires and
the cable
B
97
8
121
146
A
147
7
66
102
151
153
116
C
150
