Freemotion CoachBike b22.7 Owner's Manual page 10

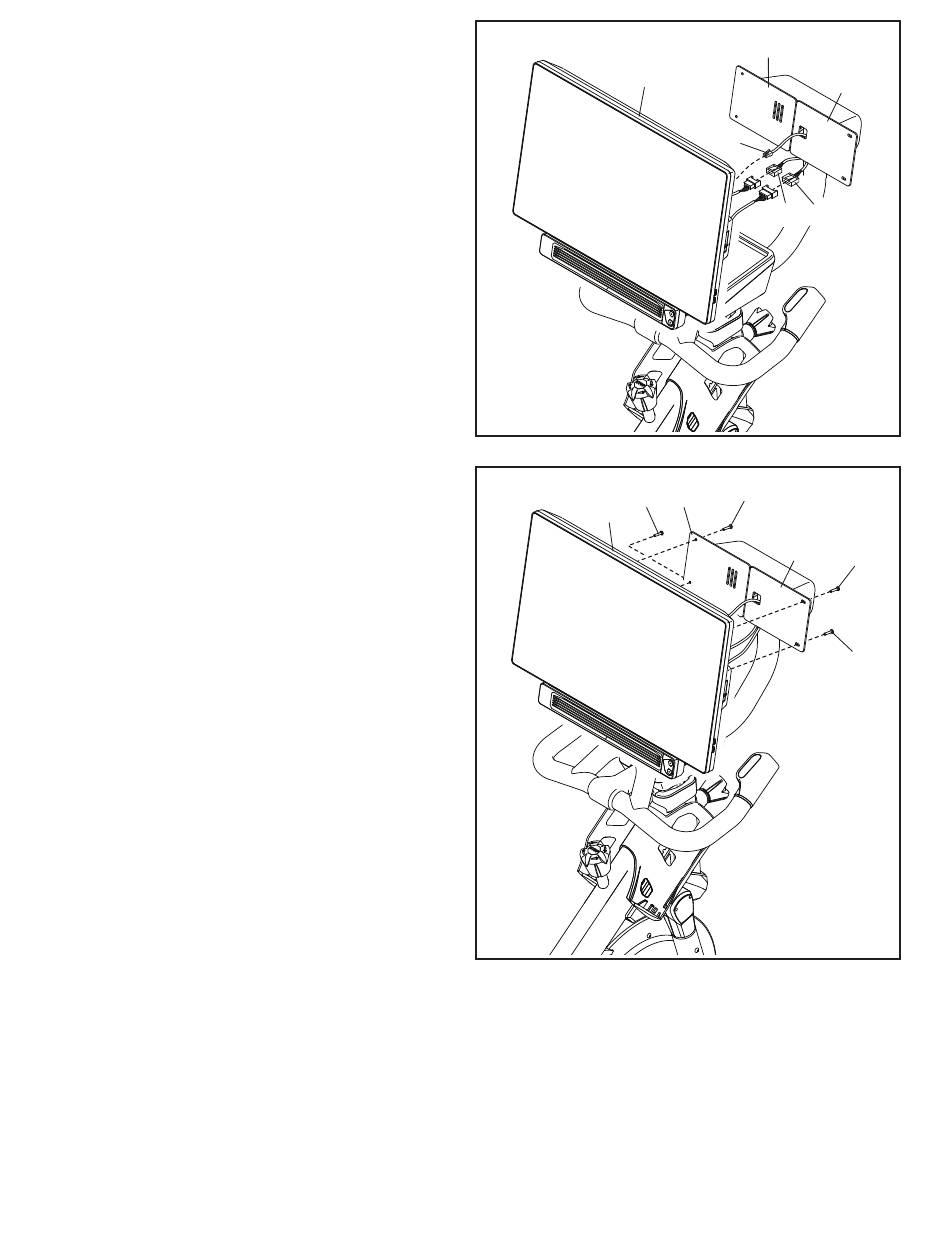

7. Have a second person hold the Console (10)
near the Left and Right Console Brackets
(94, 95).
Plug the Extension Cable (151) into the recep-
tacle on the back of the Console (10).
Then, connect the Control Extension Wire (153)
and the Extension Wire (150) to the matching
wires on the back of the Console (10).
8. Tip: Avoid pinching the wires and the cable.
If necessary, tilt the Left and Right Console
Brackets (94, 95) to make this step easier.
Attach the Console (10) to the Left and Right
Console Brackets (94, 95) with four M4 x 20mm
Machine Screws (9). After you start all four
Machine Screws, make sure that the Console
is level from side to side. Then, tighten the
Machine Screws.
7
10
8
9
10
10
94
95
151
153 150
9
94
95
Avoid pinching
the wires and
the cable
9
9
