Table of contents Safety ..................3 Description .................5 Correct use ................6 Technical data TruTool F 125..........7 Tool assembly..............8 Adjusting the hammer............8 Operation ................10 Maintenance ..............11 Replacing plastic buffers............11 Replacing the carbon brushes...........11 Original accessories and wearing parts......12 Warranty Replacement parts list...
Safety Read the Operator's Manual and the general safety rules USA/CAN (Material number 1239438, red document) in their entirety before starting up the machine. Follow precisely the directions contained therein. Rest of the world Read the Operator's Manual and the safety instructions (Material number 125699, red document) in their entirety before starting up the machine.
Page 4
Always guide the electric cord away from the back of the machine and do not pull it across sharp edges. Arrange for start-ups and checks on manual electric tools to be carried out by a trained specialist. Only used the original accessories provided by TRUMPF. Safety E520EN_03.DOC...

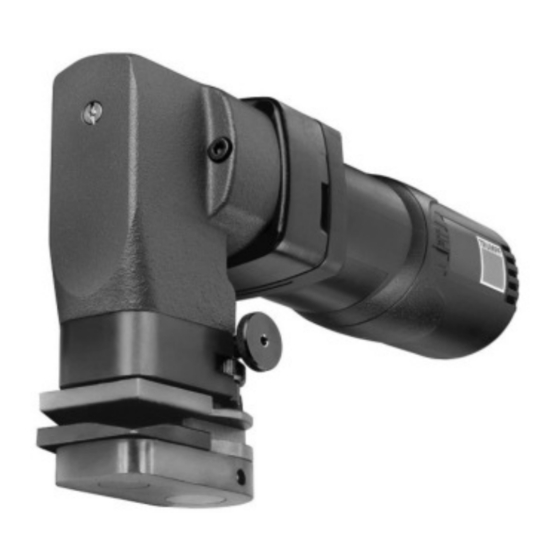

Description Eccentric shaft On/Off switch Knurled nut for adjusting the Flanged plate Knurled screw for loosening or hammer opening Hammer Up locking the adjustment Hammer Down mechanism for the hammer Carrier plate opening TruTool F 125 Fig. 38113 Description E520EN_03.DOC...
Risk of injury! For processing and materials, only use machines which are named in "Correct use". Warning The TRUMPF Fold closer is an electric hand tool used for the following applications: • Closing (hammering together) of pre-bent standing seams and angled standing seams on correspondingly pre-machined workpieces, e.g.
Technical data TruTool F 125 Rest of the world Values Values Values Values Voltage 230 V 120 V 110 V 120 V Frequency 50/60 Hz 50/60 Hz 50 Hz 50/60 Hz Maximum sheet 1.25 mm 1.25 mm 1.25 mm 0.051 in thickness Max.
Tool assembly Adjusting the hammer Standing seam 43 Knurled nut 49 Carrier plate 46 Knurled screw 50 Hammer down 47 Hammer up Standing seam Fig. 11400 Adjusting hammer for 1. Loosen small knurled screw (46). standing seam 2. With the motor running, set the hammer opening to the desired seam thickness using the large knurled nut (43).
Page 9
Angled standing seam 46 Knurled screw 49 Supporting body plate 47 Hammer up 50 Hammer down Fig. 11401 The clearance between the upper and lower hammer must be adjusted depending on the sheet thickness and/or seam thickness. Adjusting the hammer 1.
Operation Switching on the Move the On/Off switch to the front. TruTool F 125 Working with the 1. Guide the machine to the workpiece with the flattened edge TruTool F 125 foremost once the full rpm has been achieved. 2. Guide the machine along the lock seam.
Maintenance Risk of possible injury due to improper repairs! The machine does not function properly. Repairs should be carried out only by a trained specialist. Warning Are the lock seams no longer closing properly? A worn-out plastic buffer is the cause. Mount new plastic buffer.
Required delivery type (e.g. air mail, courier, express mail, – ordinary freight, parcel post). 4. Send the order to the TRUMPF representative office. For TRUMPF service addresses, see the address list at the end of the document. Original accessories and wearing parts E520EN_03.DOC...
