GS2200M SKB Hostless
HomeKit AEK/ADK
Quick Start Guide
This Quick Start Guide will walk you through the steps required to
demonstrate HomeKit AEK/ADK on GS2200M SKB (Starter Kit
Board).
The GS2200M_SKB has the GainSpan Wi-Fi module and the
Apple Wireless Accessory Configuration Chip (WAC) installed on
the board.
Your kit contains:
• Quick Start Guide (this document)
• GS2200M_SKB with WAC
• Serial Cable (USB to Mini-USB)
Copyright © 2017 Telit. All rights reserved.
1
Build the AEK/ADK Package
1
Step

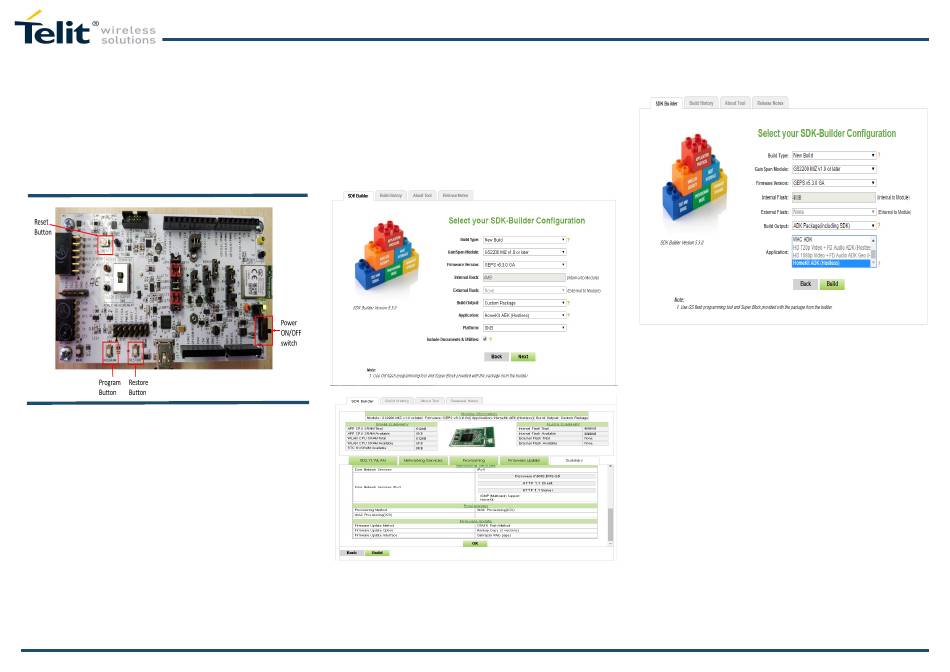

Login at https://wifi.telit.com/secure/login, select SDK
Builder tab and proceed to select the following options as seen
below:
If you do not have a login, sign up and register for a portal account
at:
https://wifi.telit.com/secure/register
For AEK Package:
2
Step
For AEK package,
• Click Next to navigate to the Build option.
• Click OK, and then click Build to generate the Home-
Kit binaries.
For ADK Package (including SDK):
For ADK including SDK package,
Click Build option to generate the HomeKit binaries.
The build configuration is submitted and a confirmation e-mail is sent
notifying that the HomeKit AEK package or the HomeKit ADK
(including SDK) package is complete and ready to download.
Download and unzip the package, for firmware binaries.
2
Program the SKB
1
Step
Plug the mini-USB cable, one end of the USB port to
GS2200 SKB USB and the other end of the USB port to the
computer or laptop.
2
Step
Ensure the Power Measurement Switch SW6 is in the
"ACTIVE" Position.
3
Step
Switch SKB power switch to the 'ON' position and check
if the green LED near the switch is illuminated.
1VV0301421, Rev 1.2
