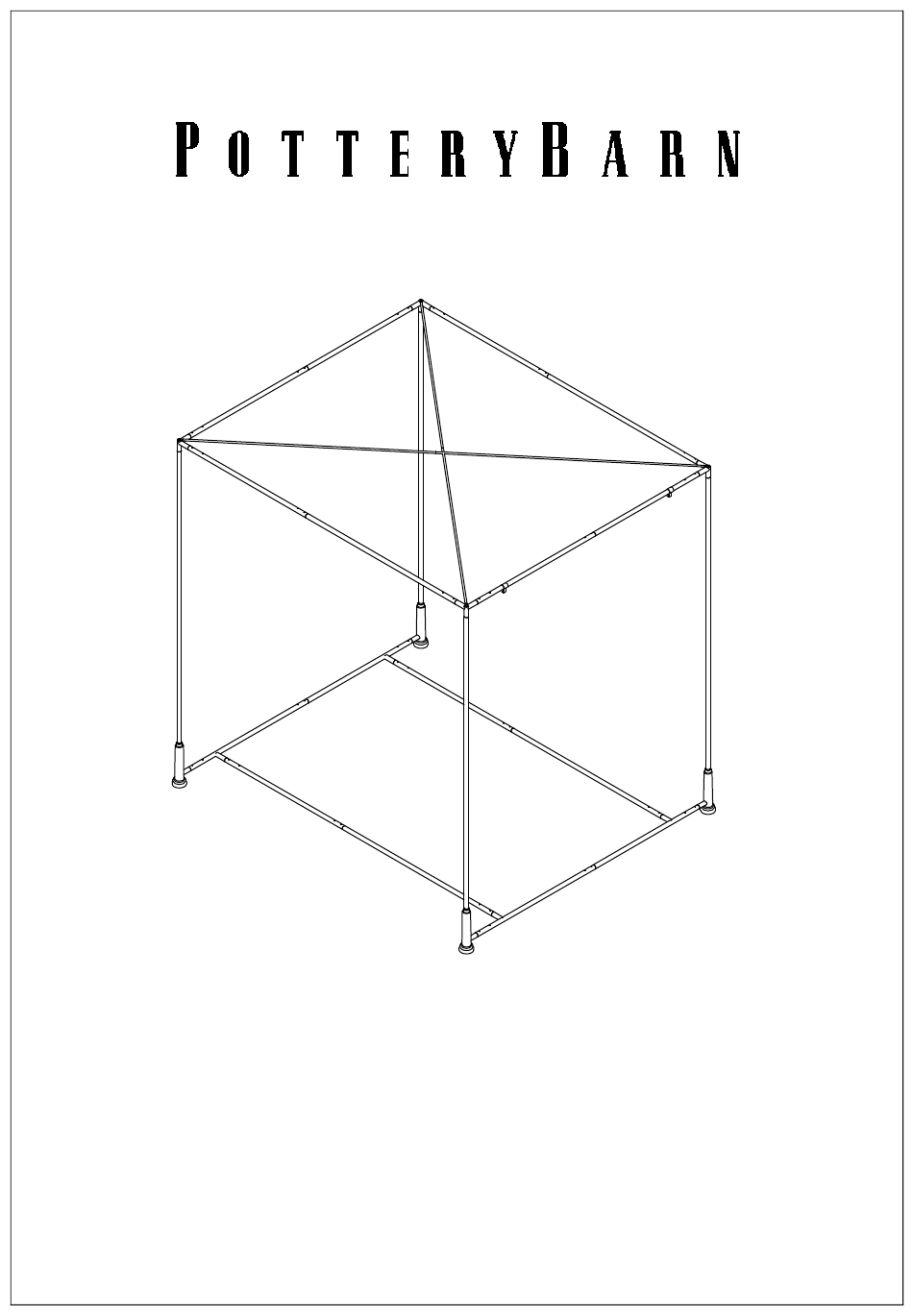

- Page 1 Canopy Bed Frame Date: 8‐Jun‐15 www. potterybarn.com ...
- Page 2 Important Safety Instructions: WARNING : Do not allow children to climb on, pull on, or hang from canopy. Failure to follow these instructions can result in serious bodily injury Please read all instructions carefully before assembling. For your safety, assembly by 4 or more adults is strongly recommended.
- Page 3 Parts Included: Part Description Rail A Rail B Rail C Rail D Rail E Rail F Post Corner Mounting Bracket Rail J Rail K Rail L Rail M Rail N Tools Required (Not included): Ladders Stud finder Pencil Phillips Head Screwdriver Date: 8‐Jun‐15 www. potterybarn.com ...
- Page 4 Assembly Instruction Steps: 1. Attach Rail (A) to Rail (C) as shown, choose the correct holes for your bed size, insert Bolt (a) and tighten with 4mm Allen Wrench (f). Repeat this step for Rail (B&D) and 2 sets of Rail (E&F). 2X ...
- Page 5 2. Attach Rail (E) to Rail (J) as shown, choose the correct holes for your bed size, insert Bolt (a) and tighten with 4mm Allen Wrench (f). Repeat this step to have 4 groups of Rail (E&J). The two holes are for Queen and King size The two holes are for CK size Choose the correct holes for your bed size as shown Date: 8‐Jun‐15...
- Page 6 3. Attach the Assembly (A&C) and (B&D) to Assembly (E&J) as shown, insert Bolt (a) and tighten with 4mm Allen Wrench (f). 4. Attach Post (G) to the assembly in step 3 as shown, insert Bolt (a) and tighten with 4mm Allen Wrench (f). Date: 8‐Jun‐15 www. potterybarn.com ...
- Page 7 5. Insert Mounting Bracket (I) to Rail (E) and Rail (F) as shown. NOTE: Screw or unscrew the small bolt on the bracket with 2mm Allen Wrench (h) to tighten or loosen the bracket on the rail. Attach Corner (H) to the Group (E&F) and Group (E&J). Insert Bolt (a) and tighten with 4mm Allen Wrench (f). 6.
- Page 8 7. Rails (K&L) are for Queen Size, Rails (M&N) are for King & CK Size. Choose the correct rails for your bed. (Illustration only shows Queen Size) Attach Rail (K) to Rail (L) as shown, insert Round Head Bolt (b) and tighten with Phillips Head Screwdriver 8.
- Page 9 9. Attach the Canopy to the top corner with 4 persons as shown, insert Long Bolt (c) thru Flat Washer (d) and tighten with 4mm Allen Wrench (e). Finally fully tighten all bolts. Date: 8‐Jun‐15 www. potterybarn.com ...
- Page 10 Mount The Canopy To The Wall: NOTE: For safe mounting it is essential to use the proper hardware for your wall type. The hardware included is meant for drywall or wood stud mounting only. If walls are concrete, brick or plaster, please consult your local hardware store for assistance in selecting the appropriate hardware.
- Page 11 4. For drywall mounting: using a screwdriver to engage a Toggle (j) and position the toggle tip against the wall at the insertion mark. Gently push the toggle into the wall as you rotate the toggle clockwise. Continue rotating until the large flange of the toggle is flush with the wall. 5.
- Page 12 WARNING : Do not allow children to climb on, pull on, or hang from canopy. Failure to follow these instructions can result in serious bodily injury 7. The assembly is now complete. Care Instructions: Dust often using a clean, soft, dry and lint-free cloth. ...
