Summary of Contents for Pottery Barn CLASSIC MINI SINK CONSOLE

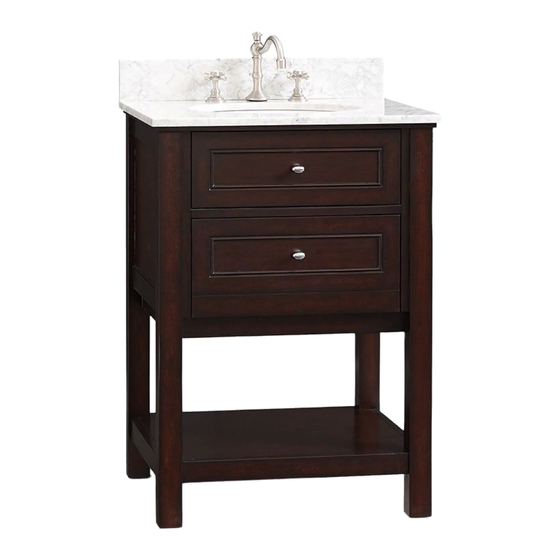

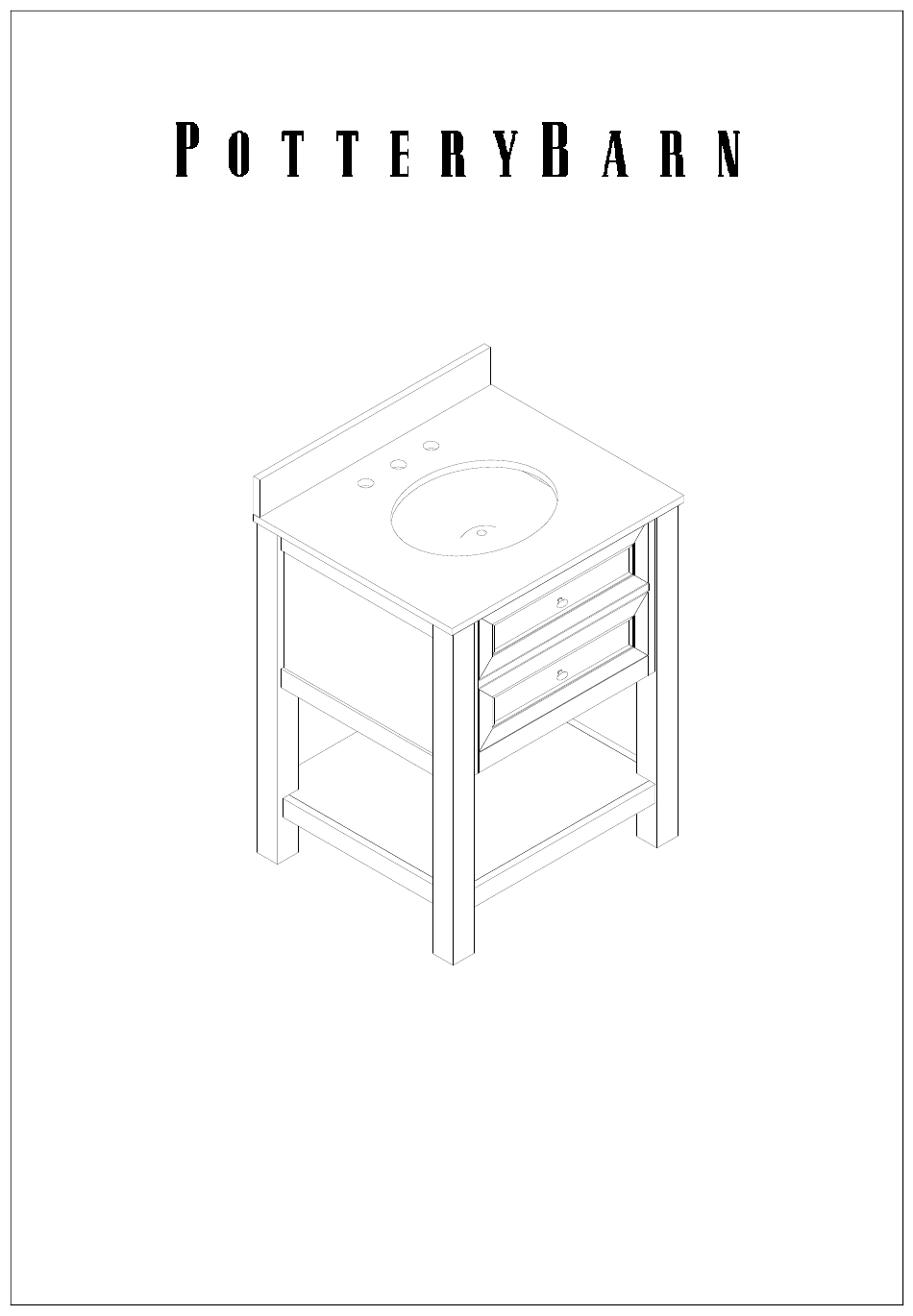

- Page 1 CLASSIC MINI SINK CONSOLE Date: 11‐Mar‐14 www. potterybarn.com Page 1 of 8 Rev: ...
- Page 2 Important Safety Instructions: Keep natural stone materials in its packaging until installation and store on its edge. When removing natural stone product from its package, always ensure it is removed vertically CAUTION: on its long edge. Always carry natural stone product vertically on its long edge. ...
- Page 3 PROFESSIONAL INSTALLATION REQUIRED - Contractor and Plumber needed for Installation. Please read all instructions carefully before assembling. For your safety, assembly by two or more adults is strongly recommended. Keep instructions for future use. Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 4 Tools Required (Not Included): Open Wrench Flat Head Screwdriver Phillips Head Screwdriver Assembly Instruction Steps: Position the basin (D) by placing over the marble top (A) cutout. Remove top washer and nut from anchor (E). Carefully set the threadless anchor end into the predrilled holes at backside of countertop. E ...
- Page 5 Basin installation: Place the L shape brackets (F), top washer and nut in succession through the other end of anchor. Secure by tightening the nut with a wrench. Note: position the basin (D) squarely under the cutout before fixing L shape brackets tightly, don’t tighten the brackets at this stage.
- Page 6 If needed, mounting blocks need to be centered on the sides and even with the top of the console. Use a dry cloth to wipe off any dirt or dust from the top edge of console, apply high quality silicone or acrylic based bath sealant to top edge of console.
- Page 7 Care Instructions: Console Care: Wipe cabinet with a soft, dry cloth. To protect the finish, avoid the use of all chemical and household cleaners and abrasives as they may damage finish. Marble Care: Marble is a natural material, the amount of veining and coloration will vary which is part of its inherent beauty. Marble is sensitive to acid, as it’s kind of natural stone, and consists mainly of calcium carbonate;...
- Page 8 CLASSIC MINI SINK CONSOLE 127mm= from side of marble top to side of the basin 330mm= from side of marble top to basin drain hole 354mm= from front of marble top to basin drain hole 111mm= from front of marble top to the front of the basin 204mm= from center of basin drain hole to back of marble top Date: 11‐Mar‐14...
