Side table

Advertisement

Pre-Assembly:

Please read all instructions carefully before
beginning assembly
This table requires two people to do the assembly.
Do not fully tighten all bolts until all parts are in
place. Failure to follow these instructions may
cause the bolts to misalign or may cause difficulty
during assembly.
Use the parts and hardware lists to identify and
separate each of the components included.
Save all packing materials until the table is fully
assembled to avoid accidentally discarding any
small parts or hardware.

Parts Included:

(1) Tabletop -A

Hardware Included:

(12) Flat Washer - D
(4) Fitting - H

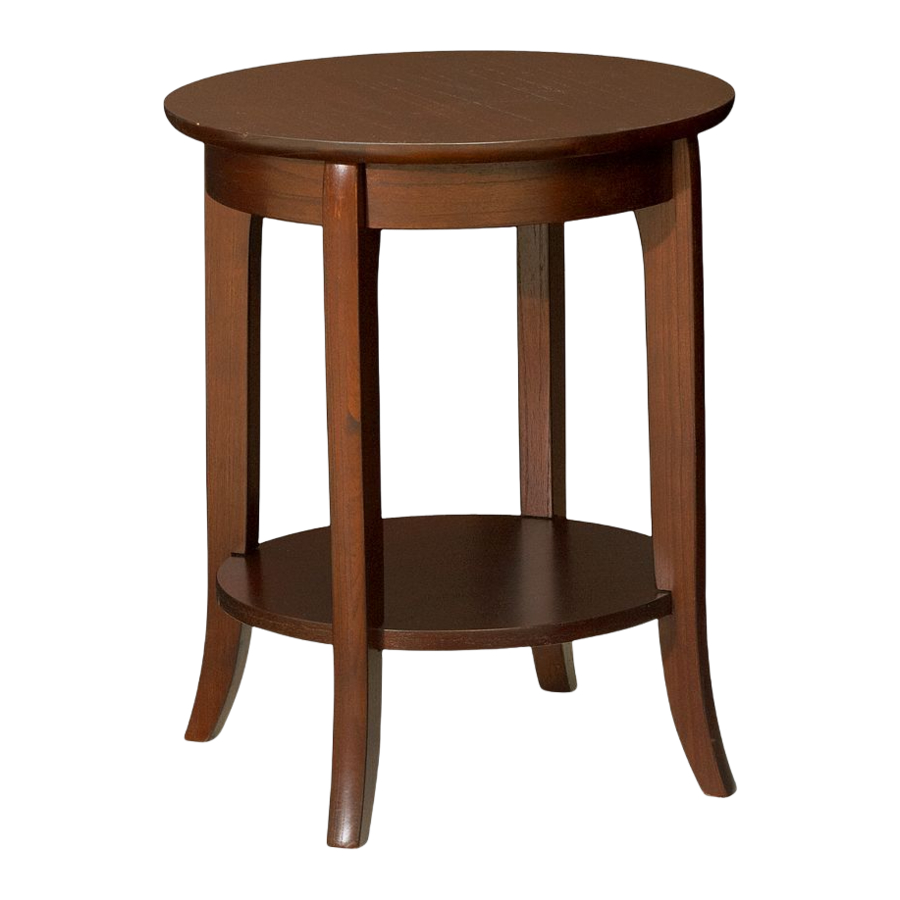

Chloe Side Table
(1) Shelf -B
(12) Lock Washer - E
(4) Nut - I
(4) Legs -C
(8) Allen Head Bolt
(M6 x 50 mm) - F
(1) Allen Wrench (3mm
thickness) - J
1/5
(1) Allen Key - G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chloe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pottery Barn Chloe

  • Page 1 Chloe Side Table Assembly Instructions Pre-Assembly: • Please read all instructions carefully before beginning assembly • This table requires two people to do the assembly. • Do not fully tighten all bolts until all parts are in place. Failure to follow these instructions may cause the bolts to misalign or may cause difficulty during assembly.
  • Page 2 Assembly Instructions: 1. Carefully place the tabletop (A) upside down on a carpeted or scratch-free work surface. (Fig. 1) 2. Attach one leg (C) to the tabletop (A). Insert a lock washer (E) and a flat washer (D) into each Allen bolt (F). Insert (2) Allen bolts with washers through the pre-drilled holes on the apron and into the leg.
  • Page 3 4. Attach the remaining legs (C) to the tabletop (A) and the shelf (B). (Fig. 3, 4, & 5) Fig. 3 Fig. 4 Fig. 5...
  • Page 4 5. Insert (2) Allen bolts with washers through the pre-drilled holes on the tabletop (A) apron and into the leg. Use hand to screw half way then use the Allen key (G) to continue tightening but do not fully tighten at this time. Repeat for the remaining corners of the tabletop (A).
  • Page 5 7. Tighten and secure all connections. Grip the table on both ends and carefully turn upright. (Fig. 8) Fig. 8 8. Assembly is complete. (Fig. 9) Fig. 9 Care Instructions: • For daily cleaning, wipe with a soft damp cloth. •...
