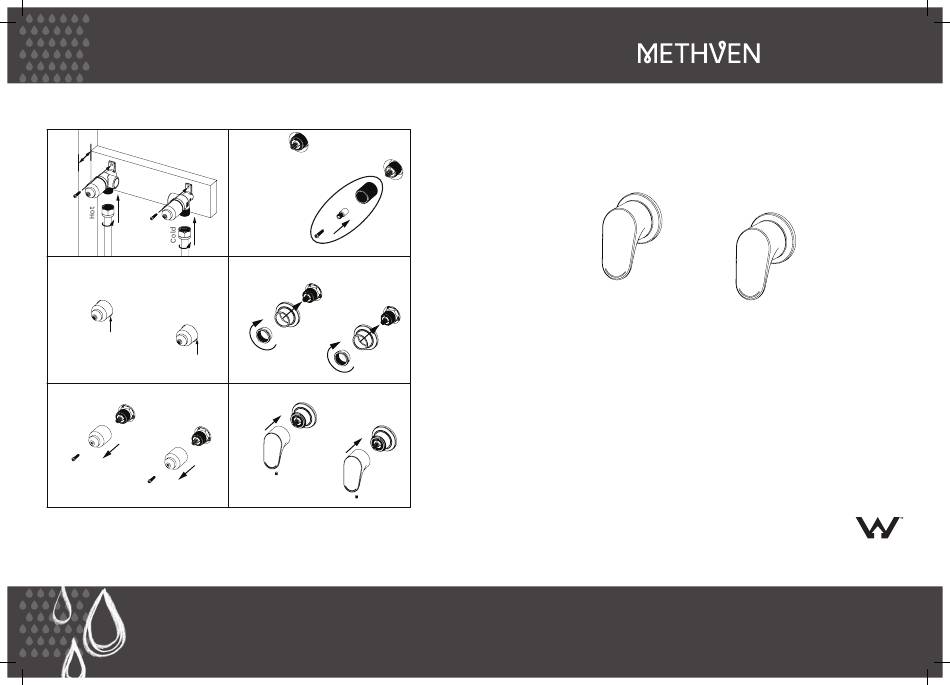

METHVEN 01-8840 Installation Manual

Installation
Distance from mounting stud to
1.
front of wall lining: Std - 54-62mm
Ext - 62-74mm
2.
Ø 35mm
Ø 35mm
3.
Do not discard screws
Note: It is the responsibility of the installer to ensure a water proof seal is achieved between the
faceplate and the finished surface of the wall. If in any doubt about the quality of the seal, the
faceplate should be removed and then reinstalled using silicone to ensure a seal is achieved.
JUNE 2012
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
4.
For deeper
installations, remove
short threaded head
works collars and
replace with optional
04-9646 Spindle
Extension Kit (kit
sufficient to extend
two headworks)
(Available seperately)
5.
6.
MA018840

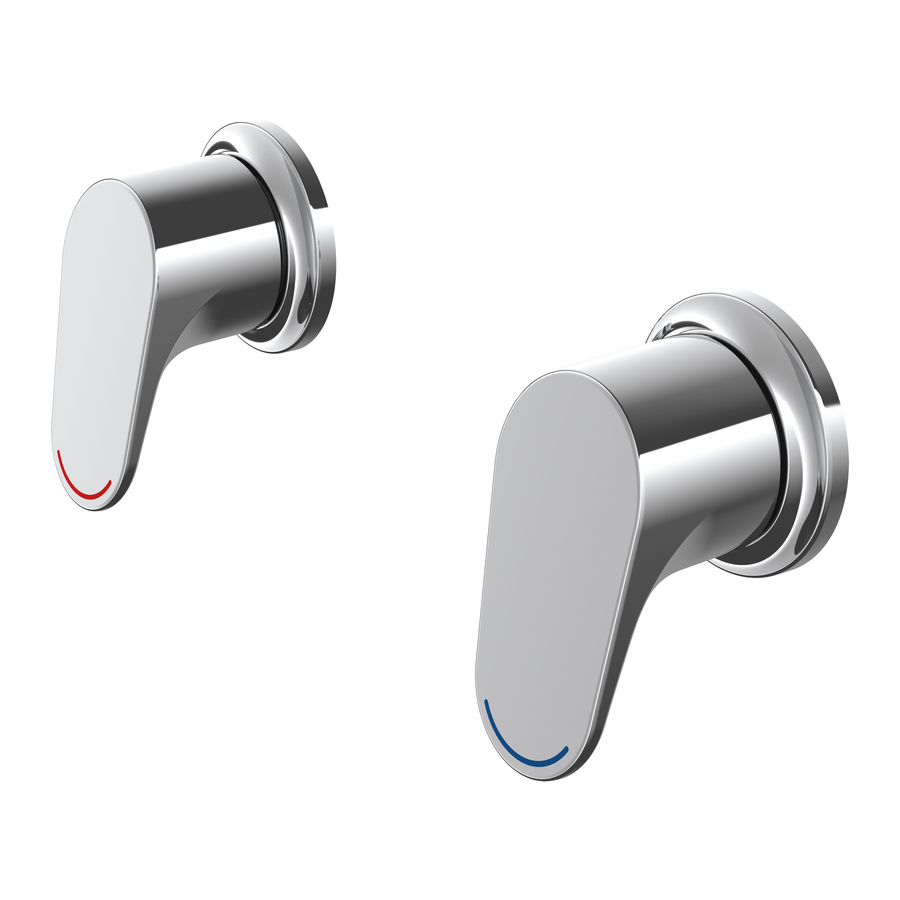

Maku Wall Top Assembly
01-8840 (Pair)
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic head works.
Do not remove the ceramic head works from the wall top assemblies when installing.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
