METHVEN 01-2053 Installation Manual

Installation
1. Leave protective cover in place.
2. Screw the body assembly (1) on to the
mounting stud positioned to observe the
installation depth, ID (to front of finished
wall lining e.g. tiles) range as follows:
Range of Install Depth, ID = 62 ± 12mm
3. Connect body assembly (1) into system.
4. Cut holes in lining as pictured.
5. Trim the brass nipple to 15 +/- 2mm
protruding from finished wall lining.
Lubricate the o-ring in the faceplate (2).
Place the faceplate (2) over the the body
assembly (1) until flat on the finished wall
surface. Remove protective cover prior to
next step.
6. Screw on half dome (3). Fit handle (5) and
fasten grub screw with hex key supplied.
Screw on lever (6) onto grub screw in handle
(5). Screw spout (4) on using Teflon tape or
similar to ensure a seal.
JUNE 2014
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com

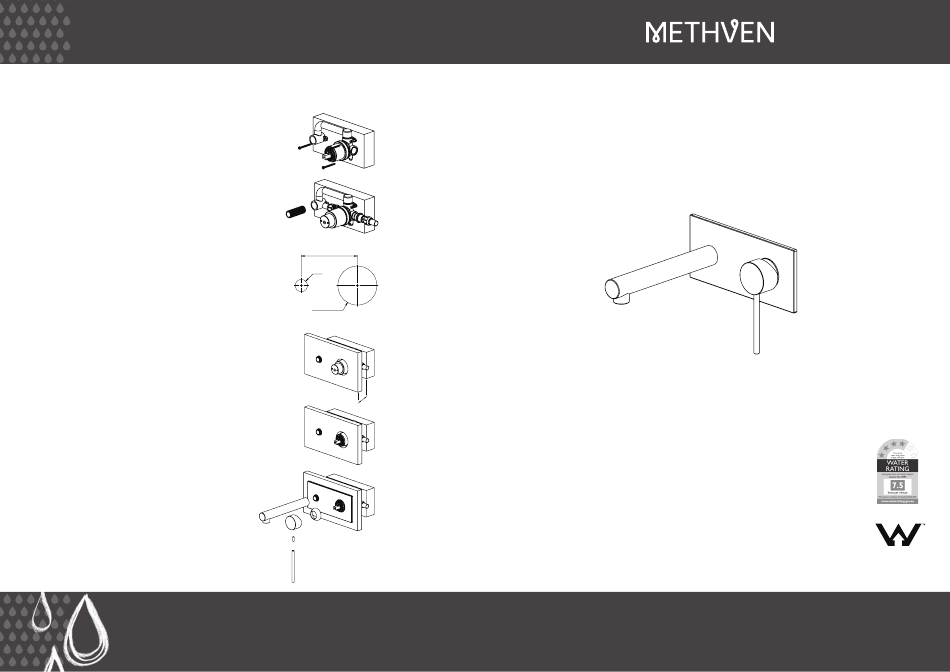

1.
2.
3.
115
25
ø 60 ± 5mm
4.
5. ID
6.
MA433098

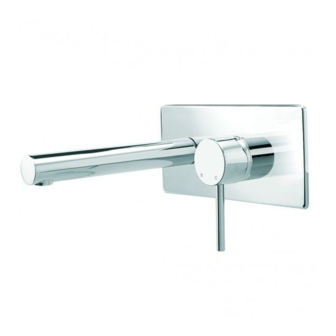

Minimalist Plate Mount Basin Mixer
Minimalist Plate Mount Bath Mixer
Basin: 01-2053
Bath: 01-2404
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic cartridge.
Do not remove the ceramic cartridge from the mixer when installing.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
Email: info@au.methven.com
Applies to basin mixer only
WMKA21005
