ATC -2000 User Manual page 3

Number is same as your remote control application
using.

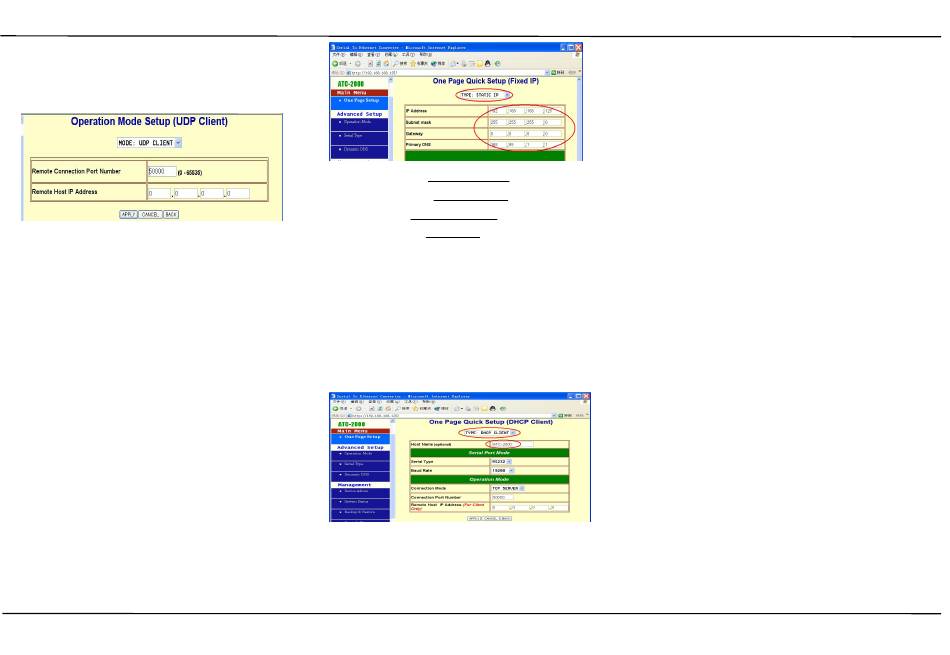

UDP Client
Remote Connection Port Number: default 50000, range 0 to
65535
Remote Host IP Address: default 0.0.0.0
If your device is acted as active to report real-time status to
remote and the data be guaranteed to be received by peer is
not your concern, then you can set ATC-2000 as TCP Client.
Be sure the value of item Remote Connection Port Number
is same as your remote control application using and set the
correct value of Remote Host IP Address.
IP Configuration
The ATC-2000 support three IP connection types: Static IP,
DHCP and PPPoE. These types are listed in the drop-down
menu for the IP Configuration setting. Each setup screen and
available features will differ depending on what kind of IP
connection types you select. Default is Static IP
Static (or Fixed) IP
IP Address: default 192.168.168.125
Subnet mask: default 255.255.255.0
Gateway: default 192.168.168.254
Primary DNS: default 168.95.1.1
If you are connecting through a static or fixed IP from your
network environment, perform these steps：
Step 1: Enter IP address
Step 2: Enter Subnet mask
Step 3: Enter Gateway IP address
Step 4: Enter Primary DNS IP address
Step 5: click Apply button
DHCP
Host Name (Optional): default ATC, maximum length
15 characters
If there is a DHCP Server existing in your network
environment or you subscribe a CABLE service from your ISP,
Copyright©2014 Reserved by ATC Technology
Serial-to-Ethernet Device Servers
you can set IP configuration to DHCP to get a dynamic IP
address. The Host Name is an optional item, depending on
your DHCP Server setting.
Serial Type
The ATC-2000 support three serial types: RS232, RS422 and
RS485, These types are listed in the drop-down menu for the
Serial Type setting. Each setup screen and available features
will differ depending on what kind of Serial Types you select
and ATC-2000 product model you buy. Default is RS232
Baud Rate: default 115200, range 1200bps to 230.4Kbps
Data Bits: 5, 6, 7, 8 (default)
Parity Check: None (default), even, odd
Stop Bits: 1 (default), 2
Flow Control: None (default), CTS/RTS (or Hardware),
XON/XOFF (or Software)
Force Packet Transmit Time (ms): default 40, range 20 to
65535
The timing of transmitting an Ethernet packet, in order to get
3
the whole data in on packet, you can tune this setting value to
fit the data length of your device per transmission. The more
small value be set will get more less data in one packet.
RS422
The settings are similar with RS232.
RS485
RS485 Transmission Delay Time (ms): default 0, range 0 to
65535
Due to different device has different capability in handling data
received from serial port. So you can tune this setting value to
slow down the speed of ATC-2000 to fit the speed of your
device handling.
