ATC -2000 User Manual page 2

10M/100M Indication LINK speed,Green ON LINK 100M
Ethernet
ACT Data Sending/Receiving between Seria and the
Ethernet
PWR Indication Power
4.0 Configure your ATC-2000
Use this section to set up your computer to assign it a static IP
address in the 192.168.168.1 to 192.168.168.254 range with a
subnet mask of 255.255.255.0. This is necessary to ensure
that your computer can communicate with your ATC-2000.
Your computer must have an Ethernet card and TCP/IP
installed. TCP/IP should already be installed on computer
using Windows 98/2000/XP and later operating systems.
Step 1：Open your web browser and type
http://192.168.168.125 in the browser's address box. This
address is the factory set IP Address of your ATC-2000. Press
"Enter".
Step 2：The "Username and Password required"
box will appear. Typing "admin" (default username) in the
Username field and typing "admin" (default password) in the
Password field. Click "OK". The setup screen will then appear.
This chapter will show you how to configure ATC-2000
to function in your network and gain access to your
device through Intranet or Internet.

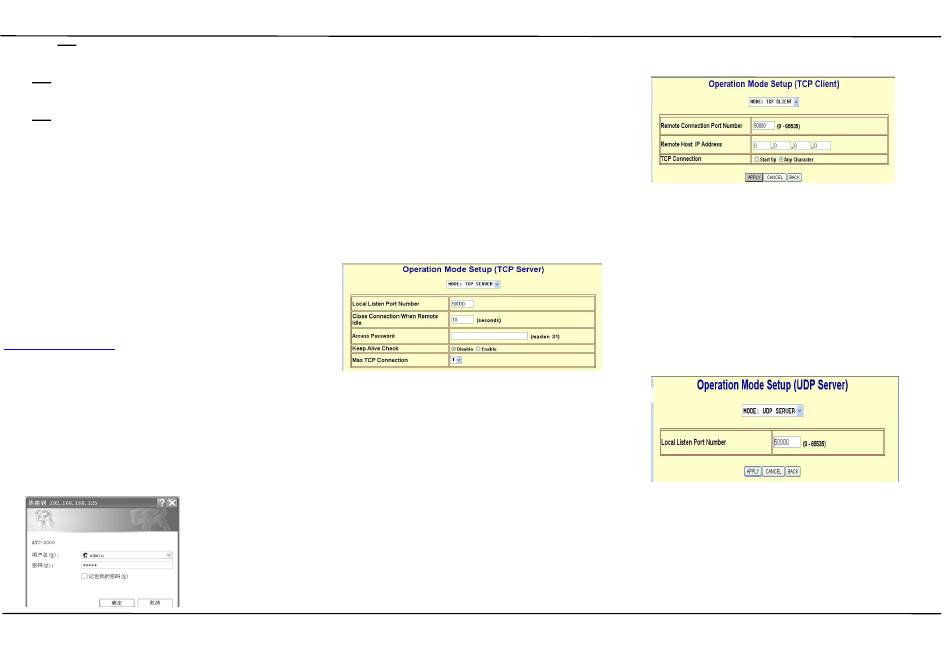

4.1 Operation mode
The ATC-2000 support four operation mode: TCP
Server, TCP Client, UDP Server and UDP Client. These
modes are listed in the drop-down menu for the
Operation Mode setting. Each setup screen and
available features will differ depending on what kind of
operation mode you select. Default is TCP Server.
TCP Server
Listen Port Number: default 50000, range 0 to 65535
If your device is acted as passive to accept commands from
prompt
remote and the data be guaranteed to be received by peer is
your concern, then you can set ATC-2000 as TCP Server. Be
sure the value of item Listen Port Number is same as your
remote control application using.
Close Connection When Remote Idle (second): default 300,
range 0 to 32768
If you want to keep the connection between ATC-2000 and
your remote control application always on, then set the value
of item Close Connection When Remote Idle to 0, otherwise,
when the idle time of no any traffic on line reach the setting
Copyright©2014 Reserved by ATC Technology
Serial-to-Ethernet Device Servers
value, ATC-2000 will terminate this connection.
TCP Client
Remote Connection Port Number: default 50000, range 0 to
2
65535
Remote Host IP Address: default 0.0.0.0
If your device is acted as active to report real-time status to
remote and the data be guaranteed to be received by peer is
your concern, then you can set ATC-2000 as TCP Client. Be
sure the value of item Remote Connection Port Number is
same as your remote control application using and set the
correct value of Remote Host IP Address.
UDP Server
Listen Port Number: default 50000, range 0 to 65535
If your device is acted as passive to accept commands
from remote and the data be guaranteed to be received
by peer is not your concern, then you can set ATC-2000
as UDP Server. Be sure the value of item Listen Port
