This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

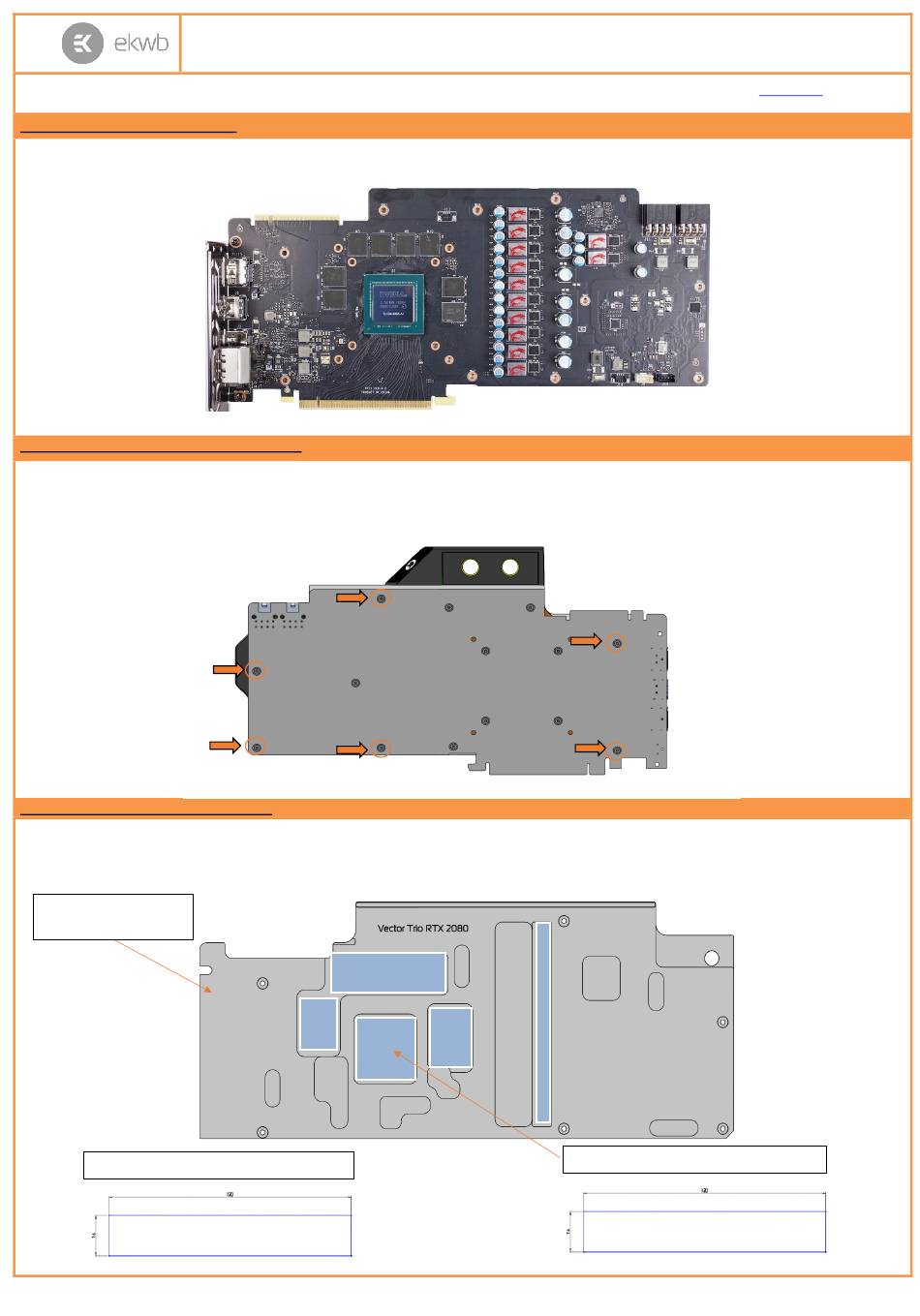

STEP 1: GENERAL INFORMATION. Sample picture of RTX Trio 2080 graphics card.
STEP 2: PREPARING YOUR GRAPHICS CARD
First install EK-Vector TRIO RTX 2080 series water block according to its installation manual. If you have it already installed, please check the picture
below to see which mounting screws are to be left in their position and which are to be removed. Please remove the six (6) M2.5x4 AX1 screws and their
PVC washers as well (marked with arrow).
STEP 3: APPLYING THE THERMAL PADS
EK-Vector TRIO RTX 2080
enclosed thermal pad. Please install enclosed 1,5mm thick thermal pad (Thermal Pad F – 1,5mm (120x16)) and 2mm thick thermal pad (Thermal
Pad F –2mm (120x16)) as shown on the picture below. You may need to trim the excess thermal pad.
PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION!
EK–VECTOR TRIO RTX 2080
BACKPLATE
1.Thermal Pad F-1.5mm EAN(3830046996749)
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-Vector TRIO RTX 2080
features passive cooling of the printed circuit board and its components therefore it is mandatory to install the
1
Backplate:
1
1
1
2
2.Thermal Pad F-2.0mm EAN(3830046996756)
www.ekwb.com
for updates. Before

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3831109816202 and is the answer not in the manual?

Questions and answers

Summary of Contents for ekwb 3831109816202

  • Page 1 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
  • Page 2 EK blocks are sealed with warranty void circular label, which proves that the block has withstood a pressure leak test. Removing it will void leak-free guarantee and not the guarantee on the product itself. Any other RMA issues can be reported to EK Support at http://www.ekwb.com/support for further analysis.

This manual is also suitable for:

Ek-vector trio rtx 2080
