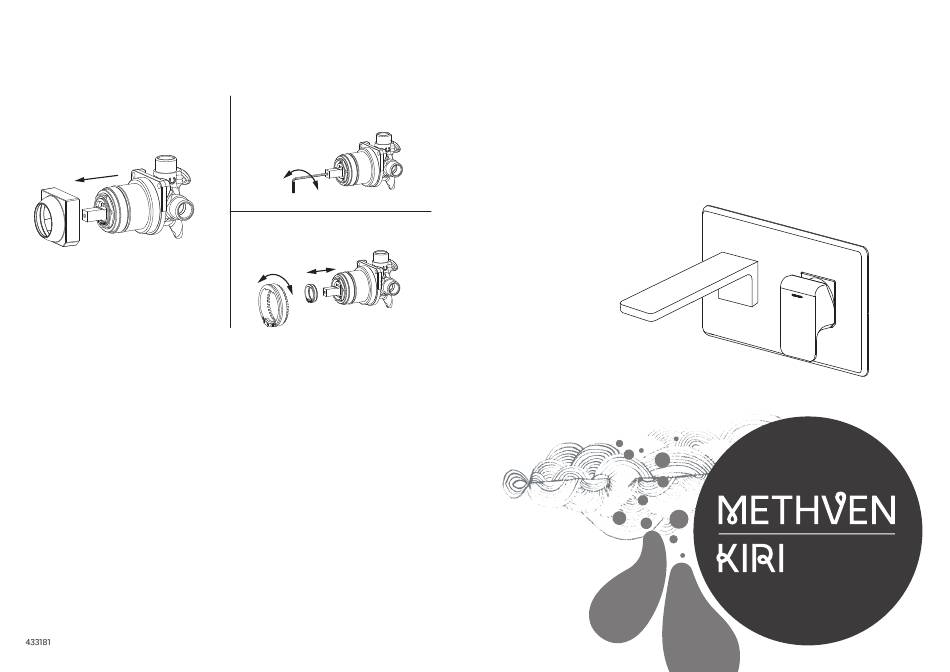

Ceramic Cartridge Adjustment
Do not remove the ceramic cartridge from the body assembly while carrying out the
following adjustments. Note, the cartridge is factory set for maximum temperature.
Remove half-dome (if attached)
Methven warrants this product against manufacturing defects and that it is suitable for use
under the operating conditions specified in this instruction sheet.
For your warranty please refer to www.methven.com or call Customer Service
New Zealand
Australia
0800 804 222
1300 638 483
Flow limiting adjustment
1.5mm
Allen key
-
+
Mix temperature limiting adjustment
-
+
USA
UK
1800 975 5409
0800 195 1602
Issue B

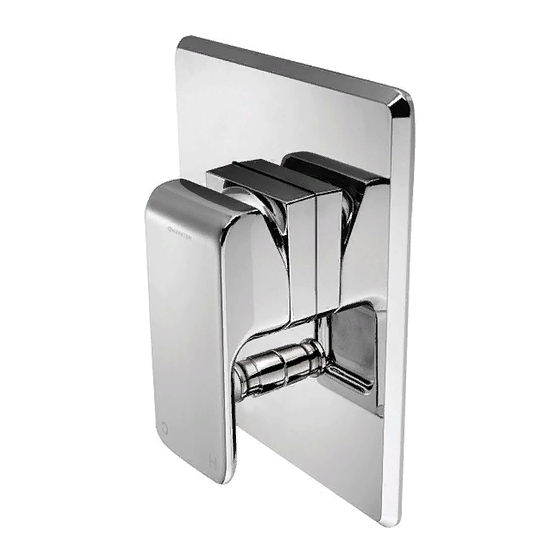

KIRI WALL MOUNTED SINGLE LEVER MIXER
INSTALLATION GUIDE
TECHNICAL SPECIFICATIONS
Suitable for mains pressure only
Operating Pressure:
Min. 150 kPa, Max. 1000 kPa.
Recommended 150-500kPa.
Install a pressure limiting valve if supply
exceeds 1000kPa.
Operating Temperature:
Recommended 50°C at the mixer.
Max 80°C .
Inlet Connections:
All ½" BSP.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for METHVEN KIRI KIWSLCP
Summary of Contents for METHVEN KIRI KIWSLCP
- Page 1 Mix temperature limiting adjustment Inlet Connections: All ½" BSP. Methven warrants this product against manufacturing defects and that it is suitable for use under the operating conditions specified in this instruction sheet. For your warranty please refer to www.methven.com or call Customer Service...
- Page 2 Please read all of the instructions before installation Use of this product in non-domestic applications voids warranty. All pipe work must be thoroughly flushed prior to the installation of the mixer. NEFA inline filters must be installed on both hot and cold supplies. Do not remove the ceramic cartridge from the mixer when installing.
