METHVEN KIRI Installation Manual

Remove half-dome (if attached)
Methven warrants this product against manufacturing defects and that it is suitable for use
under the operating conditions specified in this instruction sheet.
For your warranty please refer to www.methven.com or call Customer Service
New Zealand
0800 804 222
433176

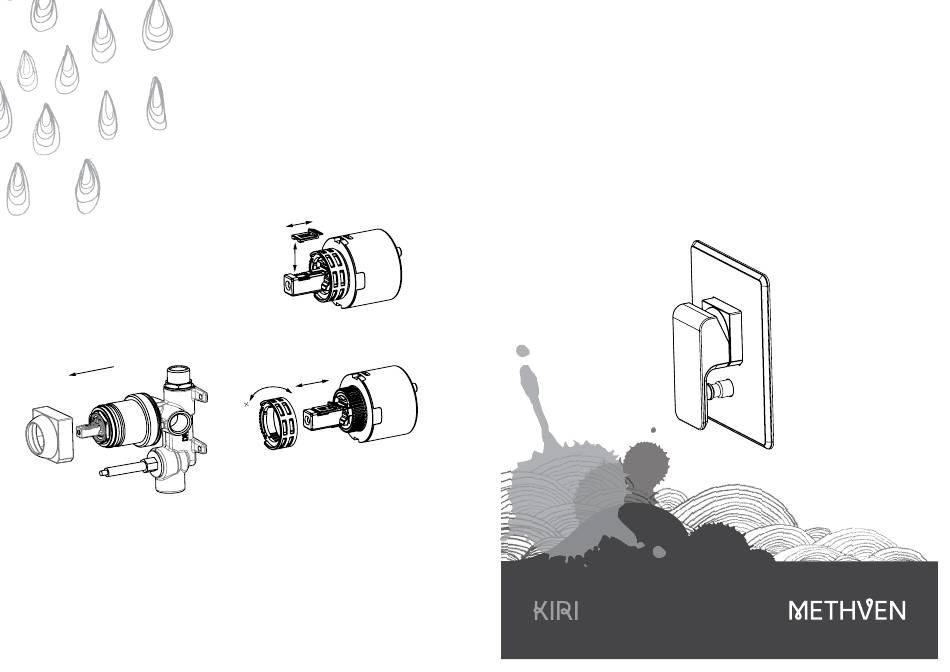

Ceramic cartridge adjustment
Do not remove the ceramic cartridge from the
body assembly while carrying out the following
adjustments. Note, the cartridge is factory set
for maximum temperature.
Flow limiting adjustment
-
+
Mix temperature limiting adjustment
-
Australia UK
1300 638 483 0800 195 1602

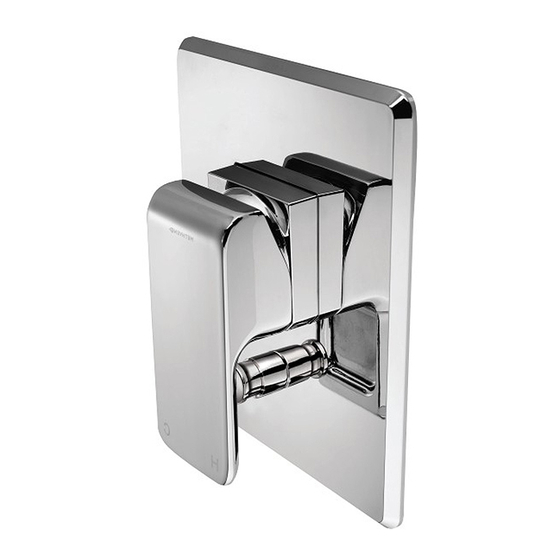

KIRI SHOWER MIXER WITH DIVERTOR
INSTALLATION GUIDE
TECHNICAL SPECIFICATIONS
Operating Pressure:
Min: 150kPa, Max 500kPa
Recommended installation of a pressure limiting valve if supply pressure exceeds 500kPa
Operating Temperature:
Recommended 50°C at the mixer
Hot: Max 80°C
Cold: Min 5°C
NB: New Zealand Building Code Clause G12 - Water Supplies specifies all outlets used primarily for personal
hygiene shall deliver water at a safe temperature.
Inlet Connections: All ½" BSP
Issue D
