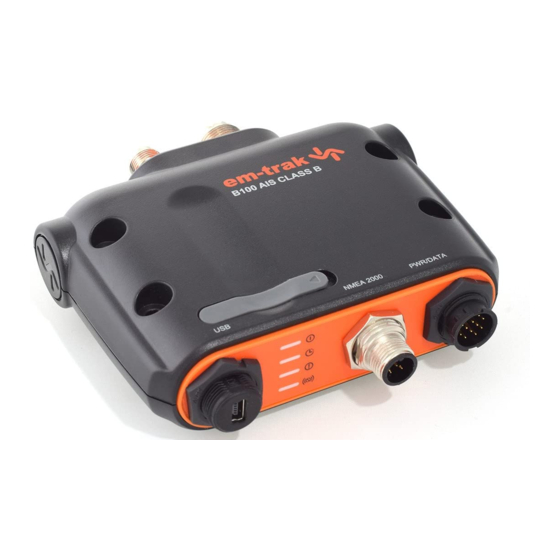

B100
Class B AIS Transceiver
QUICK-START GUIDE
For full instructions of how to install and use your B100 Class B AIS
Transceiver please refer to the Installation and Operation Manual.
What's in the box?
Class B AIS transceiver
Power and data cable
GPS Antenna
Quick
start guide
Mounting
87.0 mm
116.0 mm
AIS transceiver overview
GPS antenna connector
Mounting
holes
Memory card slot
USB connector
201-0139:2
USB cable
Product CD
Product manual
Screws (packet of 4)
37.0 mm
VHF antenna connector
Mounting
holes
Power and data
NMEA 2000
Green
Indicator
Amber
lights
Red
Blue
Install the GPS antenna
Install the VHF antenna
Connect to the chart plotter
Connect to the power supply
Con gure the transceiver
!
12V
!
24V
Advertisement
Related Manuals for Em-Trak B100
Summary of Contents for Em-Trak B100
- Page 1 201-0139:2 B100 Class B AIS Transceiver QUICK-START GUIDE For full instructions of how to install and use your B100 Class B AIS Transceiver please refer to the Installation and Operation Manual. Install the VHF antenna What’s in the box? USB cable...
- Page 2 SD card programming form. Black Power in – 6. Ensure your B100 is powered o and rmly insert the SD card into the slot on the top of the B100. Light green 7. Power on your B100.
