Si04-753
Step
3
Remove the fan motor.
4
Remove the fan rotor.
5
Remove the 2 screws
and remove the left side
plate.
6
The bearing is made of
rubber. Push it inward
and remove it.
Removal Procedure
Procedure
Fan rotor
Left side plate
Bearing

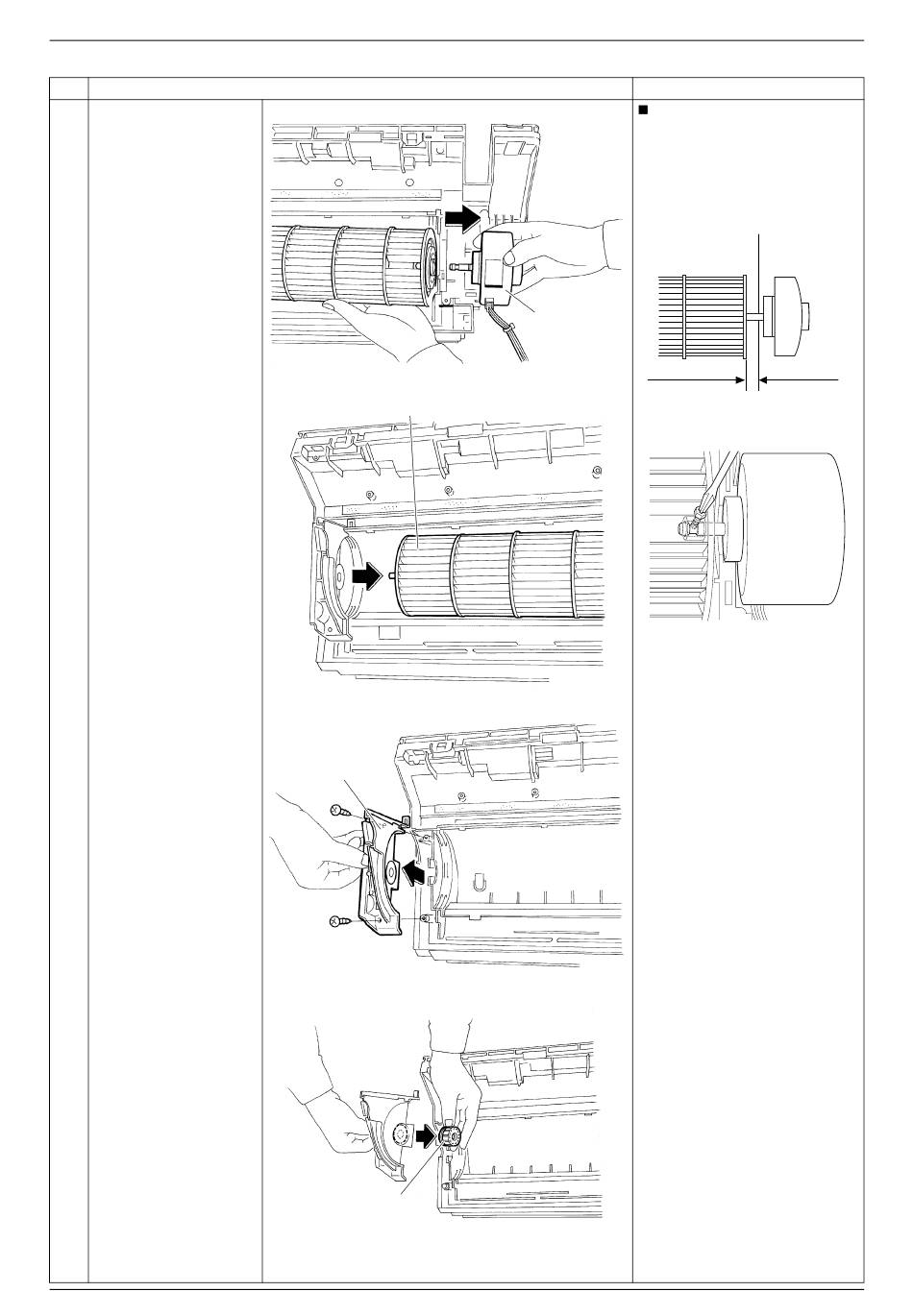

Removal of Fan Motor / Fan Rotor
When reassembling the fan
motor and the fan rotor,
provide as much as 5 mm of
play between the side face
of the rotor and the bottom
frame.
Fan motor
(R18427)
Side face of rotor
(1) Insert the fan motor with
approx. 5 mm left.
(R2809)
(2) Tighten the screw until it
stops. Then turn the screw in
one scroll.
(3) Move the fan rotor and
confirm the fan motor and
the fan rotor are installed
appropriately.
(4) Tighten the screw
completely if appropriate.
(5) If not appropriate, go back to
(1).
(R2810)
(R2811)
Points
Side face of
bottom frame
5 mm
(R2808)
(R9582)
19
