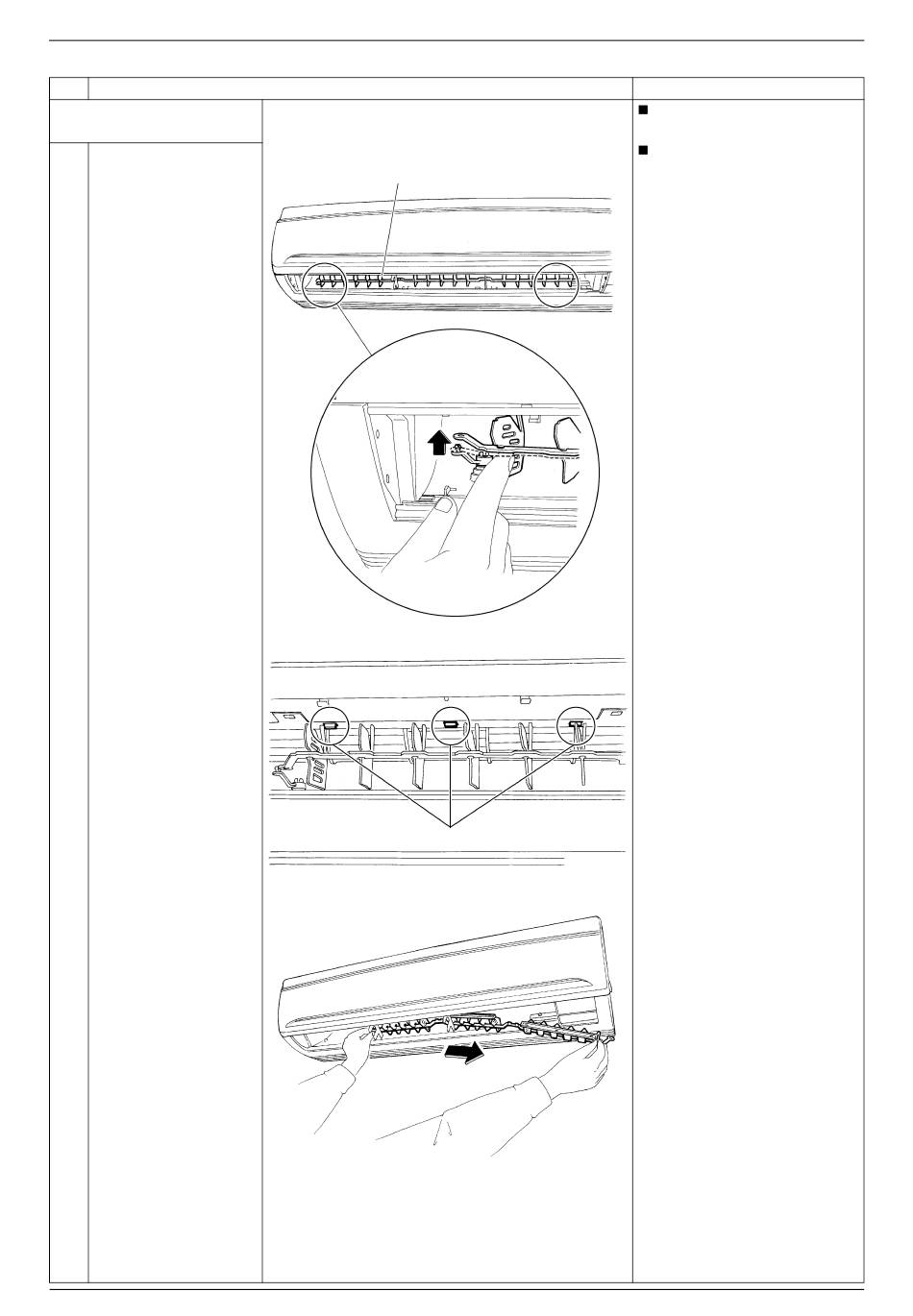

Removal of Horizontal Blades / Vertical Blades
Step
2. Remove the vertical
blades.
1
Release the right and
left shafts.
2
Unfasten the 3 hooks
for each set of vertical
blades.
3
Pull the vertical blades
rightward and remove
them.
8
Procedure
Vertical blades
Hooks
Points
Remove the fan guards
beforehand.
The unit has 2 sets of
vertical blades linked one
another with the interlock
rods.
(R2767)
(R5478)
(R2769)
Removal Procedure
Si04-753
