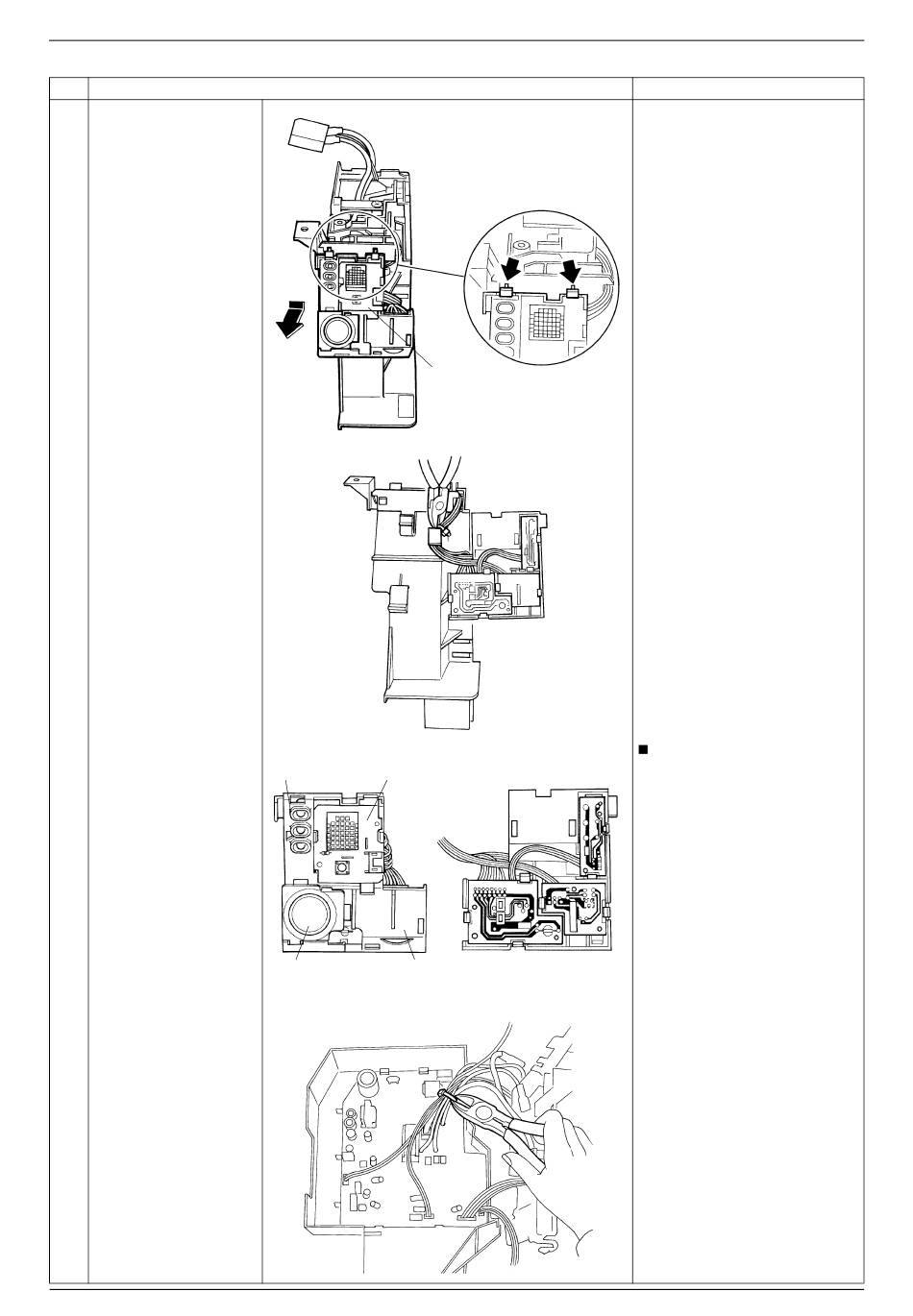

Removal of Electrical Box / PCBs / Swing Motor
Step
3
Press the signal
receiver unit down and
unfasten the hooks on
the upper side, and
then unfasten the hooks
on the lower side.
Cut the clamp.
4
5
The signal receiver unit
contains 4 PCBs.
Unfasten the hooks and
remove each PCB.
Disconnect every
connector from each
PCB.
6
Cut the clamp.
12
Procedure
Signal receiver
unit
Display PCB
Signal receiver PCB
INTELLIGENT EYE
Buzzer PCB
sensor PCB
(R2781)
(R2782)
Remove the signal receiver
unit while pushing the hooks
of connectors.
(R2783)
(R2784)
Si04-753
Points
Removal Procedure
