Si04-753

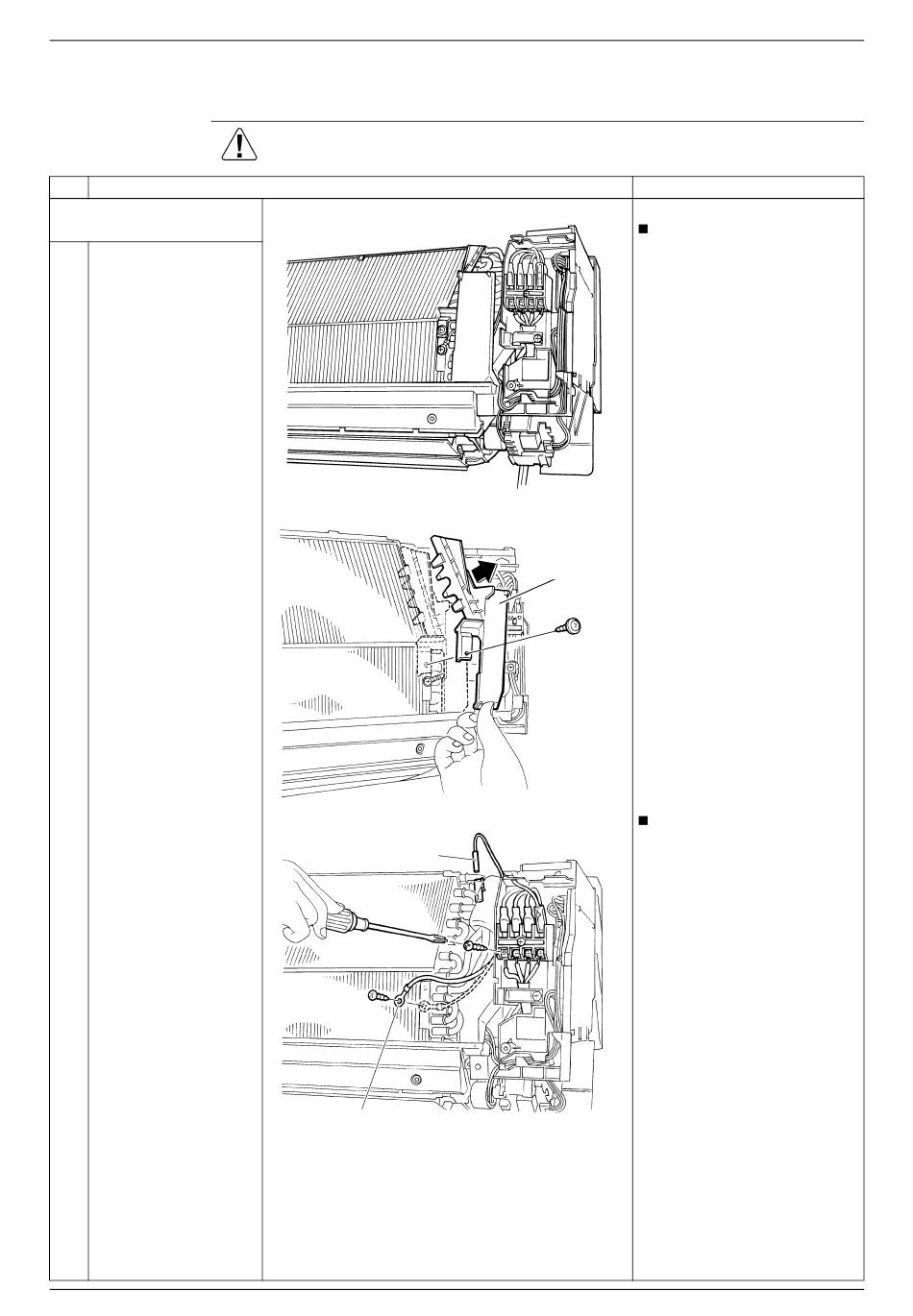

4. Removal of Electrical Box / PCBs / Swing Motor
Procedure
Step
1. Remove the electrical
box.
Remove the screw and
1
remove the drip proof
plate.
2
Pull out the indoor heat
exchanger thermistor.
Remove the screw of
3
the earth wire.
Remove the screws of
4
the connection wires.
Removal Procedure
Warning
Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Indoor heat exchanger thermistor
Earth wire
Removal of Electrical Box / PCBs / Swing Motor
Preparation
Remove the front grille
according to the "Removal of
Front Grille."
(R2770)
Drip proof plate
(R2771)
Be careful not to lose the clip
for the thermistor.
(R2772)
Points
9
