Icom IC-7300 Quick Manual page 7

IC-7300 Radio Kit

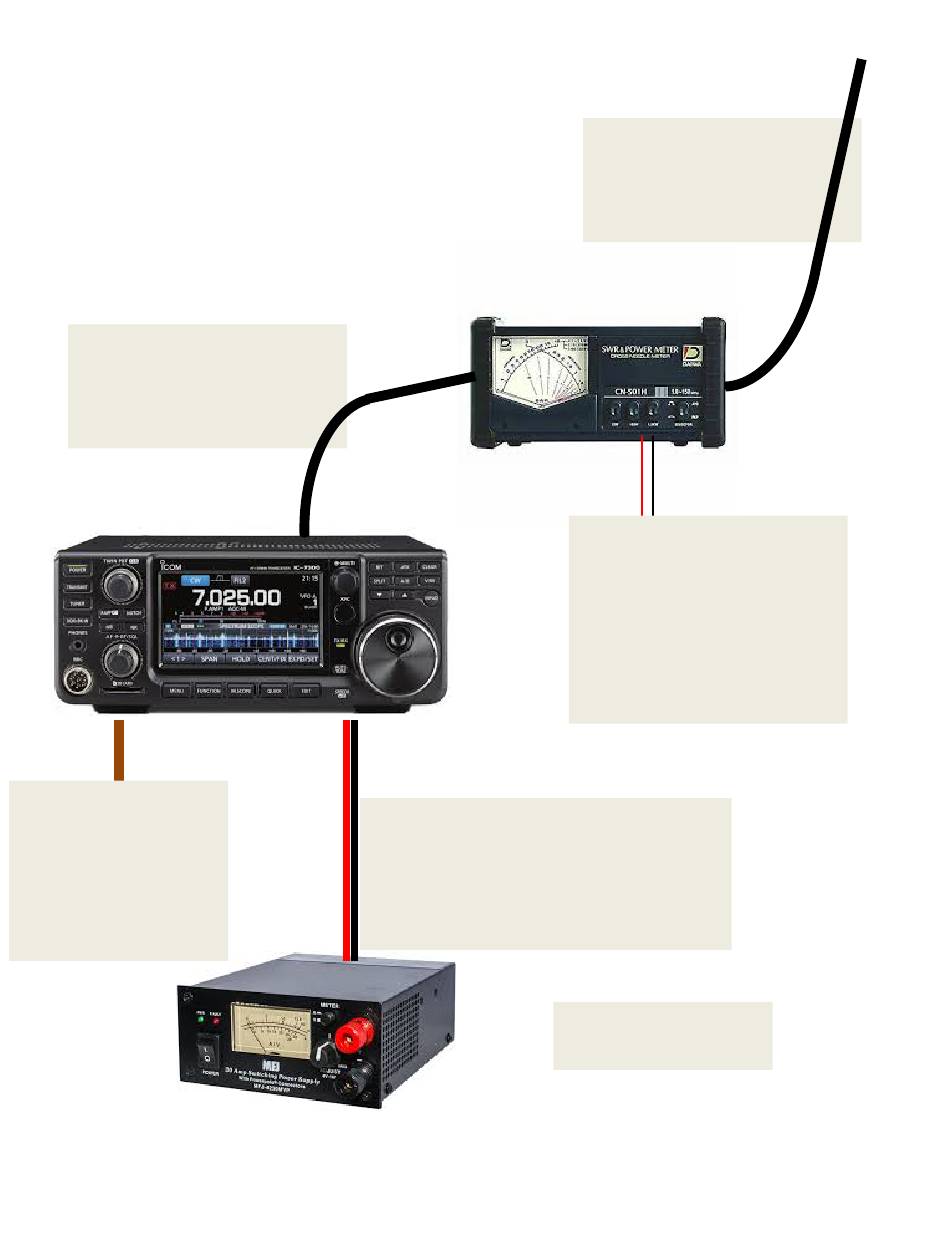

Connection Diagram
Plug HF jumper into
Antenna connector on the
radio and the TR input on
the SWR meter
Connect the ground
lead to the
Andersen Power
Pole Connector on
the rear of the radio
and to ground.
Plug power cable into Andersen
Power Pole connector on Power
Supply and into Radio power
connector after verifying you have
13.8 vdc on the power supply
Connect Antenna Feed
Line into the ANT
connector on the SWR
meter
Connect the SWR meter
power cord to the power
jack on the rear of the
SWR meter and to the
Andersen Power Pole
connector on the power
supply
Plug Power Cord
into AC power
