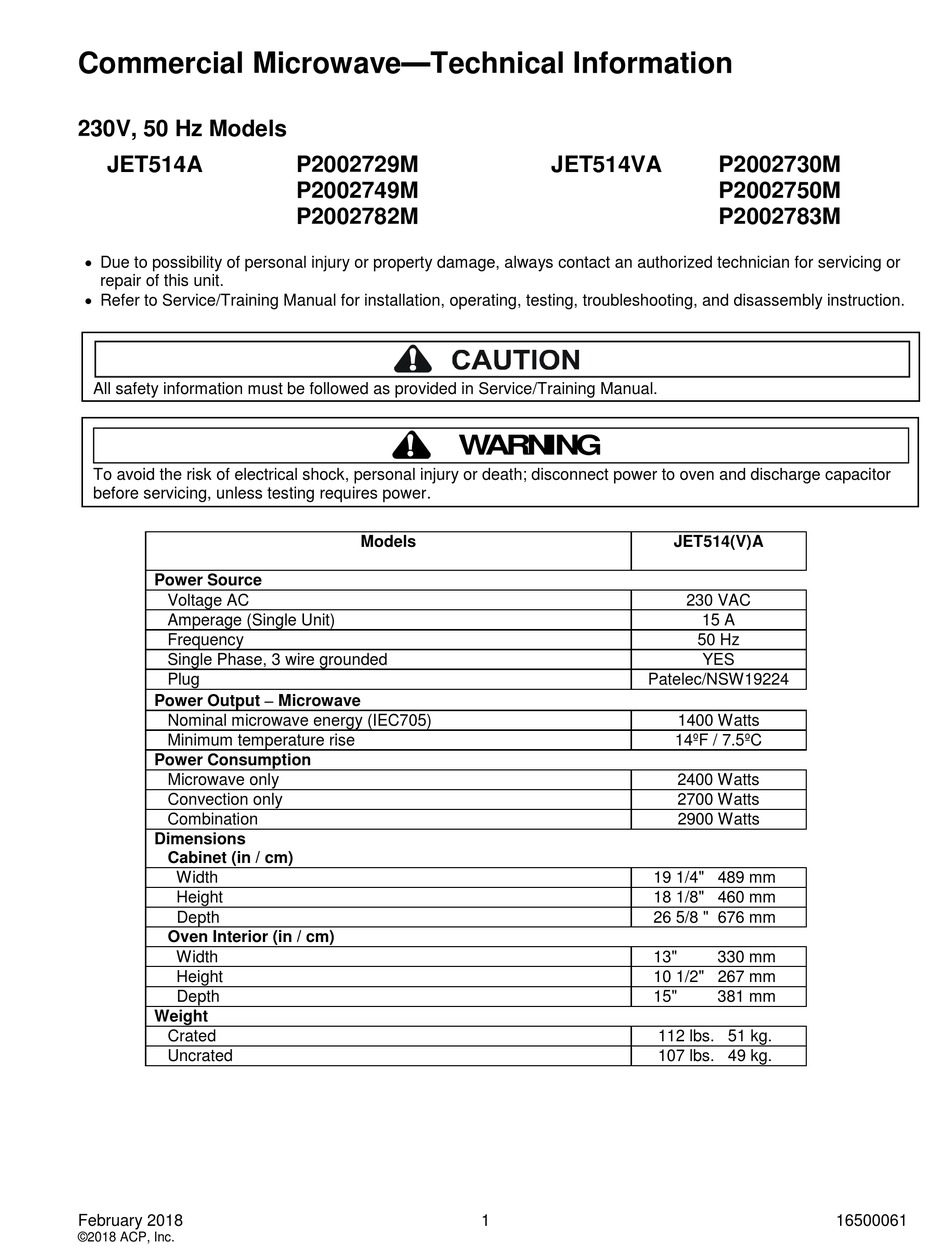

Commercial Microwave—Technical Information
230V, 50 Hz Models
JET514A
Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
Refer to Service/Training Manual for installation, operating, testing, troubleshooting, and disassembly instruction.
All safety information must be followed as provided in Service/Training Manual.
To avoid the risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitor
before servicing, unless testing requires power.
Power Source
Voltage AC
Amperage (Single Unit)
Frequency
Single Phase, 3 wire grounded
Plug
Power Output Microwave
Nominal microwave energy (IEC705)
Minimum temperature rise
Power Consumption
Microwave only
Convection only
Combination
Dimensions
Cabinet (in / cm)
Width
Height
Depth
Oven Interior (in / cm)
Width
Height
Depth
Weight
Crated
Uncrated
February 2018
©2018 ACP, Inc.
P2002729M
P2002749M
P2002782M
Models
JET514VA
Patelec/NSW19224
19 1/4" 489 mm
18 1/8" 460 mm
26 5/8 " 676 mm
13"
10 1/2" 267 mm
15"
112 lbs. 51 kg.
107 lbs. 49 kg.
1
P2002730M
P2002750M
P2002783M
JET514(V)A
230 VAC
15 A
50 Hz
YES
1400 Watts
14ºF / 7.5ºC
2400 Watts
2700 Watts
2900 Watts
330 mm
381 mm
16500061
