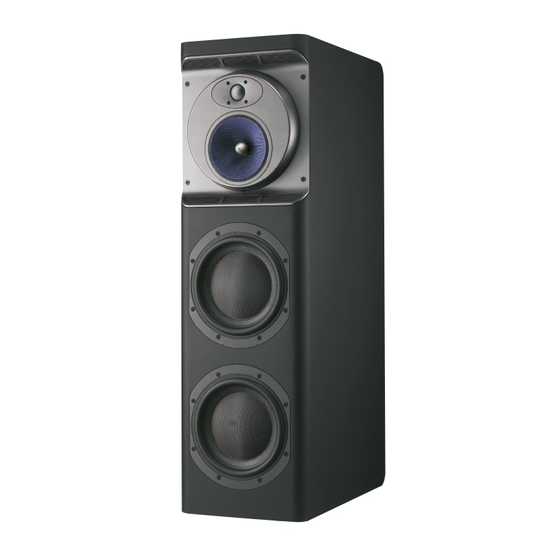

Bowers & Wilkins CT 800 Instructions

Tweeter and midrange replacement procedures

Date:

September 30, 2005

Model:

CT 800

Subject:

These instructions are intended to guide the technician in the replacement of the

tweeter or midrange drivers in the CT 800 series models.

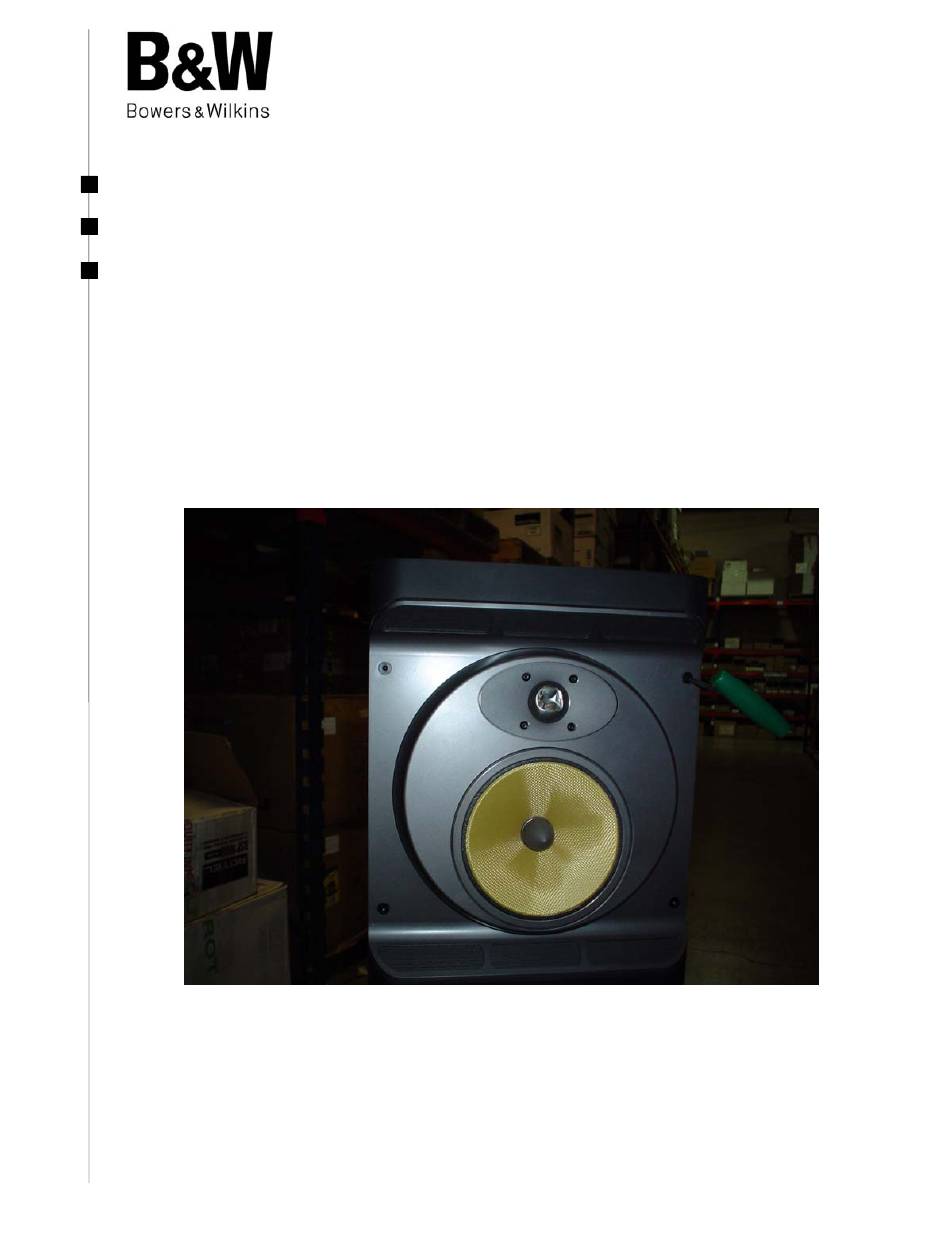

• Gently lay the speaker down on its back so the midrange head assembly is

facing upwards.

•

Remove the 4 allen screws from the front baffle of the speaker.

B&W L

54 C

OUDSPEAKERS

ONCORD

Technical Information

, MA 01864

TREET

ORTH

EADING

: 800-370-3740

: 978-664-4109

HONE

Table of Contents

Do you have a question about the CT 800 and is the answer not in the manual?

Page 1 Tweeter and Midrange Replacement Procedures These instructions are intended to guide the technician in the replacement of the tweeter or midrange drivers in the CT 800 series models. • Gently lay the speaker down on its back so the midrange head assembly is facing upwards.
Page 2 9/30/2005 - Page 2 • Once all 4 allen screws have been removed from the front baffle, gently remove the baffle from the speaker. • With the baffle removed, the midrange/tweeter head assembly can be lifted partially out of the cabinet and rotated to access the rear of the head assembly.
Page 3 9/30/2005 - Page 3 • To replace the midrange driver, using a large flathead screwdriver or the Midrange Torque Driver tool from the 800D series toolkit remove the large silver screw from the rear of the head assembly. Be careful when removing this to ensure the midrange driver does not fall out of the head assembly as this screw attaches directly to the rear of the midrange driver basket.
Page 4 9/30/2005 - Page 4 • From the back of the tweeter assembly, disconnect the molex connector from the tweeter assembly, and remove the 2 wing nuts on either side of the tweeter cover.
Page 5 9/30/2005 - Page 5 • Remove the tweeter assembly cover, and disconnect the leads to the tweeter assembly and remove. Replace with the new tweeter, and follow the instructions in reverse to reassemble the speaker. If you have any questions, please contact technical support. B &...
