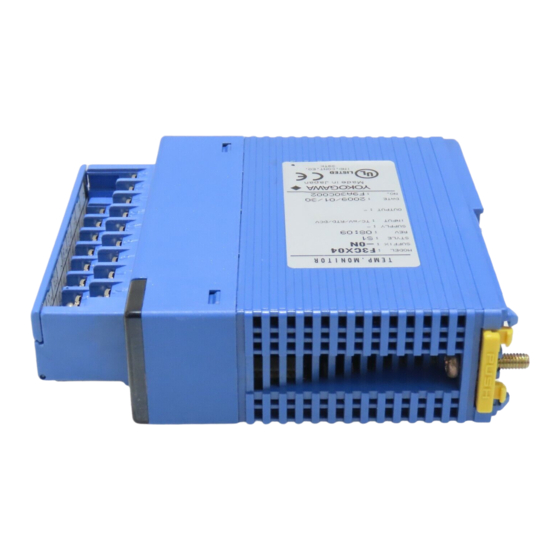

YOKOGAWA FA-M3 VITESSE F3CX04-0N User Manual

Temperature monitoring module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's
Manual
Temperature Monitoring Module
Applicable Modules:
Model Code
F3CX04-0N
Yokogawa Electric Corporation
Model Name
Temperature Monitoring Module
IM 34M06H63-01E
IM 34M06H63-01E
2nd Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA-M3 VITESSE F3CX04-0N and is the answer not in the manual?

Questions and answers

Related Manuals for YOKOGAWA FA-M3 VITESSE F3CX04-0N

Summary of Contents for YOKOGAWA FA-M3 VITESSE F3CX04-0N

  • Page 1 User’s Manual Temperature Monitoring Module IM 34M06H63-01E Applicable Modules: Model Code Model Name F3CX04-0N Temperature Monitoring Module IM 34M06H63-01E 2nd Edition Yokogawa Electric Corporation...
  • Page 2 Blank Page...

  • Page 3: Applicable Product

    Refer to the document number in all communications, including when purchasing additional copies of this manual. Document No.: IM 34M06H63-01E IM 34M06H63-01E 2nd Edition : Jul.16, 2015-00 Media No. IM 34M06H63-01E (CD) 1st Edition :July. 2003 (AR) All Rights Reserved Copyright © 2003, Yokogawa Electric Corporation...

  • Page 4: Important

    - Every effort has been made to ensure accuracy in the preparation of this manual. However, should any errors or omissions come to the attention of the user, please contact the nearest Yokogawa Electric representative or sales office.  Safety Symbols - Danger.
  • Page 5 WARRANTY that is provided separately. - Yokogawa Electric assumes no liability to any party for any loss or damage, direct or indirect, caused by the use or any unpredictable defect of the product.
  • Page 6  Software Supplied by the Company - Yokogawa Electric makes no other warranties expressed or implied except as provided in its warranty clause for software supplied by the company. - Use the software with one computer only. You must purchase another copy of the software for use with each additional computer.
  • Page 7  General Requirements for Using the FA-M3 / e-RT3 Controller  Set the product in a location that fulfills the following requirements: - Where the product will not be exposed to direct sunlight, and where the operating surrounding air temperature is from 0°C to 55°C (32°F to 131°F). There are modules that must be used in an environment where the operating surrounding air temperature is in a range smaller than 0°C to 55°C (32°F to 131°F).
  • Page 8  Configure for CE Marking Conformance: For compliance to CE Marking, perform installation and cable routing according to the description on compliance to CE Marking in the “Hardware Manual” (IM 34M06C11-01E). The list of CE conforming models is available in Appendix A2. of “Hardware Manual”.
  • Page 9 - Refer to “A3.5.4 Grounding Procedure” in the “Hardware Manual” for attaching the grounding wiring.  Authorized Representative: - The Authorized Representative for this product in the EEA is: Yokogawa Europe B. V. Euroweg 2, 3825 HD Amersfoort, The Netherlands  IM 34M06H63-01E...
  • Page 10 . Batteries the user cannot remove Dispose the battery together with this product. When you dispose this product in the EU, contact your local Yokogawa Europe B.V.office. Do not dispose them as domestic household waste. Battery category: Lithium battery Note: With reference to Annex II of the new Battery Directive 2006/66/EC, the above symbol indicates obligatory separate collection.

  • Page 11: Introduction

    Introduction  Overview of the Manual This instruction manual describes the specifications, functions and use of the Temperature Monitoring module. It is especially useful when you are performing pre- operation engineering.  Other User’s Manuals Read the following manuals, as required. ...

  • Page 12: Copyrights And Trademarks

     Copyrights The copyright of the programs and online manuals contained in the software medium of the Software Product shall remain in YOKOGAWA. You are allowed to print the required pages of the online manuals for the purposes of using or operating the Product; however, reprinting or reproducing the entire document is strictly prohibited by the Copyright Law.

  • Page 13: Table Of Contents

    TOC-1 Temperature Monitoring Module IM 34M06H63-01E 2nd Edition CONTENTS Applicable Product ..................i Important ....................ii Introduction ....................ix Copyrights and Trademarks ..............x PART-A Function Overview A1. Overview ..................A2-1 A2. Specifications ................A2-1 A2.1 Model and Suffix Codes ................ A2-1 A2.2 Compatibility with CPU Modules ............
  • Page 14 TOC-2 B2.2.5 Process Data ................B2-6 B2.2.6 Operation Control Parameters ..........B2-8 B2.2.7 Input Parameters ..............B2-9 B2.2.8 Operation Parameters ............B2-11 B2.3 How to Enable Settings ..............B2-14 B2.4 Initializing All Settings ................ B2-17 B3. Setup and Operation ..............B3-1 B3.1 Setting Monitoring Parameters ............
  • Page 15 TOC-3 C5.2 List of Error Statuses ................C5-2 C6. Selecting Temperature Unit ............C6-1 PART-D Troubleshooting D1. Before Performing Checks ............D1-1 D2. Troubleshooting a Specific Problem ........D2-1 (1) Input does not change, or fluctuates excessively ........D2-2 (2) The ALM or ERR LED indicator is lit or flashing ........D2-3 Appendix List of Registers .............
  • Page 16 Blank Page...

  • Page 17: Part-A Function Overview

    Content A-1 Temperature Monitoring Module PART-A Function Overview IM 34M06H63-01E 2nd Edition IM 34M06H63-01E 2nd Edition : July.16, 2015-00...
  • Page 18 Blank Page...

  • Page 19: A1. Overview

    A1-1 A1. Overview The temperature monitoring module (hereafter called “the module”) is an input module to be mounted on the FA-M3 base module. Figure A1.1 shows a schematic diagram of a system containing the module. Base module (internal bus) Temperature monitoring module CPU module Input 1 Input processing...
  • Page 20 A1-2  Features - High accuracy, high resolution, High speed The input sampling period for four channels is 200 ms. The sampling period may be set to 100 ms if only two channels are used. The input conversion accuracy is 0.1% of full scale, and the input resolution is 0.1C (using 5-digit representation).

  • Page 21: A2. Specifications

    A2-1 A2. Specifications A2.1 Model and Suffix Codes Table A2.1 shows the model name and suffix code of the module. Table A2.1 Model and Suffix Codes Suffix Style Option Model Description Code Code Code F3CX04 — — 4 channels of universal input; single-slot size A2.2 Compatibility with CPU Modules There is no restriction on the type of CPU modules that can be used with this module.

  • Page 22: A2.3 General Specifications

    A2-2 A2.3 General Specifications Table A2.2 lists the general specifications of the F3CX04-0N temperature monitoring module. Table A2.2 General Specifications Item Specification Number of channels Between input terminals and internal circuit Isolated by photocouplers and transformers Isolation (tested for 1500 V AC voltage withstanding) Between input terminals 4 types of alarm: Alarm types...
  • Page 23 A2-3 Table A2.4 Instrument Range and Accuracy (for high resolution operation with SW1-1 set to OFF) Input Type Selector Switch Input Instrument Default Software Accuracy Resolution Type Range Setting SW1-3 SW1-4 Instrument default ranges may be specified Software setting (factory setting) by software using one of the following codes.
  • Page 24 A2-4 Table A2.4 Instrument Range and Accuracy (for low resolution operation with SW1-1 set to OFF) 2/4 Input Type Selector Switch Input Instrument Default Software Accuracy Resolution Type Range Setting SW1-3 SW1-4 Instrument default ranges may be specified Software setting by software using one of the following codes.
  • Page 25 A2-5 Table A2.4 Instrument Range and Accuracy (for high resolution operation with SW1-1 set to ON) Input Type Selector Switch Input Instrument Default Software Accuracy Resolution Type Range Setting SW1-3 SW1-4 Instrument default ranges may be specified Software setting (factory setting) by software using one of the following codes.
  • Page 26 A2-6 Table A2.4 Instrument Range and Accuracy (for low resolution operation with SW1-1 set to ON) 4/4 Input Type Selector Switch Input Instrument Default Software Resolution Accuracy Type Range Setting SW1-3 SW1-4 Instrument default ranges may be specified Software setting by software using one of the following codes.

  • Page 27: A2.5 Backup Function

    A2-7 A2.5 Backup Function The F3CX04-0N temperature monitoring module stores input type, input range and many other parameters internally each time the corresponding registers are updated, unless the backup function is disabled. Take note, however, that there is a maximum limit to the number of write operations allowed for the backup function.

  • Page 28: A2.6 Function Specifications

    A2-8 A2.6 Function Specifications Table A2.6 shows the function specifications of the F3CX04-0N temperature monitoring module. Table A2.6 Function List Functions Description Input sampling period Sets the input sampling period (limits the number of available channels). Monitoring mode selection Specifies monitoring mode for each of 2 channels. Single input mode Basic function for independent operation Monitoring...

  • Page 29: A2.7 Components And Functions

    A2-9 A2.7 Components and Functions F3CX04-0N 60Hz Status Indicators RDY (green) MONITOR CX04-0N Lit when the internal circuit is functioning normally. Turns off when an error occurs in the module. 60 Hz (green) Indicates the frequency of the commercial power supply, ...

  • Page 30: A2.8 External Dimensions

    A2-10 A2.8 External Dimensions Unit: mm 83.2 22.9 28.9 Figure A2.3 External Dimensions IM 34M06H63-01E 2nd Edition:Jul.16,2015-00...

  • Page 31: A3. Startup Procedure

    A3-1 A3. Startup Procedure Install the module into your system and perform the following startup procedure. Design overall system configuration Hardware preparation A4. Hardware Preparation Setup using Software B3. Setup and Operation Start operation B3. Setup and Operation Figure A3.1 Startup Procedure Before you use the module, you must first design the overall system configuration, set the switches, install the module on the base unit, and perform required wiring and other...
  • Page 32 Blank Page...

  • Page 33: A4. Hardware Preparation

    A4-1 A4. Hardware Preparation To use the temperature monitoring module, you must set the operation switches and perform wiring connections. In this chapter, we describe the details of hardware preparation. Figure A4.1 shows the workflow for hardware preparation. For details on each operation, refer to the sections indicated in the column on the right.

  • Page 34: A4.1 Selecting Input Types And Power Supply Frequency

    A4-2 A4.1 Selecting Input Types and Power Supply Frequency This section describes how to select appropriate input types for given temperature ranges and how to select a suitable power supply frequency for a given power supply environment. Figure A4.2 shows the hardware switches for selecting input types and power supply frequency.
  • Page 35 A4-3 Table A4.1 Input Type Selection (1/2) (SW1-1 = OFF) Input Type Software Input Range Instrument Selector Switch Setting Input Type Default Preset Range Default Range SW1-4 SW1-3 DEC.P Software setting -2000 13700 -2700 13700 ($01) -200.0 to 1370.0C -200 1370 -270 1370...
  • Page 36 A4-4 Table A4.1 Input Type Selection (2/2) (SW1-1 = ON) Input Type Software Input Range Instrument Selector Switch Setting Input Type Default Preset Range Default Range SW1-4 SW1-3 DEC.P Software setting ($01) -3280 24980 -4540 24980 -328.0 to 2498.0°F ($21) -328 2498 -454...
  • Page 37 A4-5 Table A4.2 Power Supply Frequency Setting Power Supply Power Supply Frequency Software Setting Remarks Frequency Setting Selector Switch (SW1-2) FREQ 50 Hz Factory setting 60 Hz “Software Setting” refers to values stored in data register FREQ. Any value not listed here is ignored. To enable software setting, set the input type selector switches to “set by software”, that is, “SW5=0;...

  • Page 38: A4.2 Attaching/Detaching Modules

    A4-6 A4.2 Attaching/Detaching Modules After setting hardware switches, attach the module to the base unit. This section describes the procedure for attaching/detaching the module and the necessary precautions.  Attaching Modules Figure A4.3 shows how to attach this module to the base module. First hook the anchor slot at the bottom of the module to be attached onto the anchor pin on the bottom of the base module.
  • Page 39 A4-7  Detaching Modules To remove this module from the base module, reverse the above operation. Press the anchor/release button on the top of this module to unlock it and tilt the module away from the base module. Then lift the module off the anchor pin at the base. ...

  • Page 40: A4.3 Wiring

    Fit ferrite core near the exit on input cables that lead out of the panel enclosure Figure A4.5 Wiring Precautions Table A4.3 FG Clamps and Ferrite Core Recommended by Yokogawa FG clamp Kitagawa Kogyo Industries Co., Ltd. FGC Series Kitagawa Kogyo Industries Co., Ltd.
  • Page 41 A4-9 We recommend using crimp contact (for 3.5mm screw) with insulating sleeve to connect a wire to a terminal. Table A4.4 Wire and Solderless Terminal Wire Type Shielded twist-pair wires Wire's rated 75C or higher temperature Wire connecting Using solderless terminal method Manufacturer Model...

  • Page 42: A4.3.2 Terminal Wiring Diagram

    A4-10 A4.3.2 Terminal Wiring Diagram a) Terminal Wiring Diagram Thermocouple Input RTD Input for F3CX04-0N and DC Voltage Input b) Input Terminal Wiring Diagram for F3CX04-0N Figure A4.7 Terminal Wiring Diagram WARNING Never connect terminals marked as “NC” in the terminal layout and wiring diagrams. Otherwise, the module may not function normally.

  • Page 43: Part-B Parameter Description

    Content B-1 Temperature Monitoring Module PART-B Parameter Description IM 34M06H63-01E 2nd Edition IM 34M06H63-01E 2nd Edition : Jul.16,2015-00...
  • Page 44 Blank Page...

  • Page 45: B1. Accessing The Module

    B1-1 B1. Accessing the Module The relays and registers of this module can be accessed from a sequence CPU or BASIC CPU. This chapter explains the precautions when accessing the module from a CPU. For details on the relays and registers provided with this module, see Chapter B2, “Types of Relays and Registers”.

  • Page 46: Accessing Using Sequence Instructions

    B1-2 B1.1 Accessing Using Sequence Instructions Accesses to this module from a sequence CPU can be classified into three types, namely, reading from data registers, writing to data registers and reading from input relays.  Reading Registers (READ / HRD) Use the Special Module Read instruction or Special Module High Speed Read instruction for reading registers.
  • Page 47 B1-3  Writing to Registers (WRITE / HWR) Use the Special Module Write instruction or Special Module High Speed Write instruction for writing to registers. These instructions write the value stored in the specified data device number into the specified area. Writing is performed in 16-bit units. Table B1.2 Writing to Registers Is Input...
  • Page 48 B1-4  Reading Input Relays Use the LD and other basic instructions to read from a relay in bit units. X  denotes the slot number where the module is installed. Figure B1.1 Reading Relays This module is provided with an interrupt function for use with BASIC CPUs and other non-sequence CPUs.

  • Page 49: B1.2 Accessing Using Basic

    B1-5 B1.2 Accessing Using BASIC Table 1.3 lists the BASIC statements that can be used to access this module from a BASIC CPU. Table B1.3 Available BASIC Statements Function Syntax Description Example: Defines the mapping between module Declare of use of ASSIGN CX04=SL and slot number.

  • Page 50: B1.3 Writing And Reading After Powering On

    B1-6 B1.3 Writing and Reading After Powering On Do not read and write to output data registers before module startup completes. This can be ensured by checking that the MDLRDY relay is set. Table B1.4 Relays Relating to Writing and Writing After Powering On Input Relay Number Symbol Description...

  • Page 51: B2. Types Of Relays And Registers

    B2-1 B2. Types of Relays and Registers This module provides input relays and input/output data registers for accessing the module from a CPU module. This chapter describes these relays and registers. B2.1 Types of Relays This module has 3 input relays for each channel and 3 system-wide input relays, but no output relay.

  • Page 52: B2.2 Types Of Registers

    B2-2 B2.2 Types of Registers This module is provided with input/output relays for configuring module operation and reading operation status. Registers for configuration include basic setup elements, as well as supplementary setup elements for supporting various modes of operation. Set these registers appropriately to suit the intended usage.
  • Page 53 B2-3  Common Precautions for Registers CAUTION Only registers listed in Table B2.3 and subsequent tables are valid data registers provided with this module. Any number missing from the “Data Position Number” column in these tables is omitted intentionally. When a value written to a valid data register exceeds the valid data range, as indicated in the “Data Range”...

  • Page 54: B2.2.1

    B2-4 B2.2.1 Common Process Data These are representative process-related data for all channels. It consolidates in a single data area process-related data such as process value, operating status and error status. Table B2.3 Common Process Data Data Default Position Symbol Description Unit Data Range...

  • Page 55: B2.2.3

    B2-5 CAUTION For details on the procedure for enabling settings, see Section B2.3, “How to Enable Settings”. B2.2.3 Function Control Parameters Use these parameters to define the operation of module functions on a module-wide basis. Table B2.6 Function Control Parameters Data Default Position...

  • Page 56: B2.2.5 Process Data

    B2-6 B2.2.5 Process Data These are process-related data, such as input process value, process value and operating status, which can be used for monitoring the operation of the module. Table B2.8 Process Data Data Position Number Default Symbol Description Unit Data Range Attribute Stored Value...
  • Page 57 B2-7  Alarm Status Table B2.10 Alarm Status ALM.STUS Symbol Description position 15 14 13 12 11 10 ALM1 Alarm 1 generated ALM2 Alarm 2 generated ALM3 Alarm 3 generated ALM4 Alarm 4 generated ALMW1 Alarm 1 waiting ALMW2 Alarm 2 waiting ALMW3 Alarm 3 waiting ALMW4 Alarm 4 waiting ―...

  • Page 58: B2.2.6

    B2-8 B2.2.6 Operation Control Parameters Use these parameters to control the operation of individual channels. Table B2.12 Operation Control Parameters Data Position Number Default Symbol Description Unit Data Range Attribute Stored Value Also  INSEL Input selection None 0: Input 1; 1: Input 2 C2.11 ...

  • Page 59: B2.2.7

    B2-9 B2.2.7 Input Parameters Input parameters are classified into categories: required setup parameters that must be checked and set, as well as optional setup parameters that can be set as required. All input parameters apply to individual channels. The only required setup parameter is the Input Type Selection. It is the most basic channel setup element.
  • Page 60 B2-10  PV Range Settings These parameters are only valid in Two-input Changeover mode, and are used for defining the input range in Two-input Changeover mode. By default, the PV range follows the input range of the even channel. Table B2.13 Input Parameters (3/3) Data Position Number Default Symbol...

  • Page 61: B2.2.8 Operation Parameters

    B2-11 B2.2.8 Operation Parameters Operation parameters are option parameters used for selecting and configuring various module function options. They are classified into two-input changeover function settings, input function settings and alarm function settings, and can be set, as required. Unlike monitoring parameters and input parameters, operation parameters do not need to be manually enabled after writing.
  • Page 62 B2-12  Two-input Changeover Function Settings Use these parameters to perform setup when using Two-input Changover mode, as required. They can be used for setting the changeover mode and changeover temperature. Table B2.14 Two-input Changeover Function Settings Data Position Number Default Symbol Description...
  • Page 63 B2-13  Alarm Function Settings Use these parameters to set up the operation (alarm type, hysteresis and ON delay time) of the alarm functions for individual channels, as required. Table B2.16 Alarm Function Settings Data Position Number Symbol Description Unit Data Range Default Value Attribute Stored Also...

  • Page 64: How To Enable Settings

    B2-14 B2.3 How to Enable Settings Parameters described in Section B2.2.4, “Monitoring Parameters” and Section B2.2.7, “Input Parameters” must be enabled to take effect. This section describes how to enable various settings and check for successful completion. Table B2.18 lists the input relays and Table B2.19 lists the I/O data registers that are used for enabling monitoring parameters and input parameters.
  • Page 65 B2-15  State Transition The operating states of the module can be classified into 3 categories. For details on how to confirm a transition to a new state, and the content of registers and relays in each state, see Table B.2.21, “Content of Registers and Relays in Each Operating State”. Exit from Setup Set SETUP register to 0 Powr ON...
  • Page 66 B2-16  Procedure Figure B2.2 illustrates the procedure for enabling monitoring parameter and input parameter values. Two I/O data registers, namely, SETUP and OPE, are used to enable settings, whilst three relays (SETUP.R, CMDRDY, MDLRDY) and one input data register (STUS) are used to check for successful execution.

  • Page 67: B2.4 Initializing All Settings

    B2-17 CAUTION The STUS register is a read-only register, which is updated after execution of each setup instruction. When executing a sequence of setup instructions, check the STUS register after each execution to determine if setup is successful. CAUTION If a sequence program has a long execution cycle, a rise in the CMDRDY relay may fail to be detected.
  • Page 68 Blank Page...

  • Page 69: B3. Setup And Operation

    B3-1 B3. Setup and Operation The module is provided with multiple built-in monitoring functions to support various forms of operations. Before using the module, you must select an operating mode, and configure the various monitoring functions. This chapter describes the basic workflow from setup to operation.

  • Page 70: B3.1.1

    B3-2 B3.1 Setting Monitoring Parameters Monitoring parameters are used for performing module-wide setup to suit the operating environment and mode of use. They define the most basic operations of the module. The setup elements are described in Section B3.1.1, “Power Supply Frequency Selection”, Section B3.1.2, “Input Sampling Period”...

  • Page 71: B3.1.3 Monitoring Mode

    B3-3 B3.1.3 Monitoring Mode The monitoring mode parameter configures how channels are combined. The module supports Single-input mode and Two-input Changeover mode. In Two-input Changeover mode, two channels are combined and used as one.  Single-input Mode This is the standard mode of use. Input In Single-input mode, each input operates independently, and is configured separately.
  • Page 72 B3-4 The monitoring mode is set for a pair of channels. Register MD12 corresponds to channels 1 and 2, whilst MD34 corresponds to Channels 3 and 4. Table B3.5 shows the relationship between monitoring mode preset values and channels. Table B3.4 Monitoring Mode Data Position Number Default...

  • Page 73: B3.1.4 Sample Program For Setting Monitoring Parameters

    B3-5 B3.1.4 Sample Program for Setting Monitoring Parameters This section shows a sample program for setting monitoring parameters. The program sets the input sampling period to 100ms. For details on how to enable settings, see Section B2.3, “How to Enable Settings.” Clear Setup Mode Start On for 1...

  • Page 74: B3.2 Setting Input Parameters

    B3-6 B3.2 Setting Input Parameters Input parameters are classified into two categories: required input parameters that must be checked and set, as well as optional input parameters that can be set as required. All input parameters apply to individual channels. The only required input parameter is described in Section 3.2.1, “Input Type Selection”.

  • Page 75: B3.2.2 Sample Program For Setting Input Parameters

    B3-7 B3.2.2 Sample Program for Setting Input Parameters This section shows a sample program for setting input parameters. The program sets the input type for channels 1 and 2. For details on how to enable settings, see Section B2.3, “How to Enable Settings.” Clear Setup Mode ON for 1 Start...

  • Page 76: B3.3 Setting Operation Parameters

    B3-8 B3.3 Setting Operation Parameters Operation parameters are option parameters used for selecting and configuring various module function options. They are classified into two-input changeover function settings, input function settings and alarm function settings, and can be set, as required. For details, see Chapter C2, “Input-related Functions”...

  • Page 77: B4. Sample Program

    B4-1 Sample Program This chapter describes a sample program that uses the temperature monitoring module for monitoring temperatures. It sets the input sampling period and input type, and reads process values. If it detects an error, it reads the error status. Table B4.1 lists the 5 internal relays used in this sample program, with their intended usage.
  • Page 78 B4-2 Setup Monitoring Mode Set input sampling period Monitoring Parameter Start Input Type Setup CH1 K: -200 to 500C Select Input Type CH2 K: -200 to 1000C Start Input Type Setup Initialize all parameters Initialize All Parameters Enable monitoring parameters Monitoring Parameter Enable input type...
  • Page 79 B4-3 Read PV Value and Error Status Read PV value CH1 PV Value Read error status CH1 Error Status Read error status CH2 Error Status Figure B4.1 Sample Program (3/3) CAUTION If a sequence program has a long execution cycle, a rise in the CMDRDY relay may fail to be detected.
  • Page 80 Blank Page...

  • Page 81: Part-C Function Description

    Content C-1 Temperature Monitoring Module PART-C Function Description Part C describes the functions of the module. IM 34M06H63-01E 2nd Edition The module has four monitoring functions, which can be configured to suit different applications. This part first describes the monitoring mode that defines the relationship among the monitoring functions, and then describes each of the functions.
  • Page 82 Blank Page...

  • Page 83: C1. Monitoring Mode

    C1-1 C1. Monitoring Mode The monitoring mode defines the relationship among the four monitoring functions provided in this module. Each monitoring function may be operated independently; alternatively, channels 1 and 2, or channels 3 and 4 may be combined to implement Two-input Changeover mode.

  • Page 84: C1.1 Single-Input Mode

    C1-2 C1.1 Single-input Mode The single-input mode is the standard operation mode of the module where each channel operates independently. With the required conditions defined, a channel measures a temperature and provides it as a PV value. For details of each function, see Section C2, "Input-related Functions."...
  • Page 85 C1-3 The module reads the output from a thermocouple, RTD, or some other temperature sensor and processes it according to the characteristics of the sensor used. It also provides an input filtering function for reducing noise and hence, stabilizing the input, as well as a biasing function to correct sensor-dependent input deviation over the entire input range.

  • Page 86: C1.2 Two-Input Changeover Mode

    C1-4 C1.2 Two-input Changeover Mode The two-input changeover mode uses two channels of monitoring functions to monitor a single measurement value, by switching between two inputs. In this mode, only parameters of even (2, 4) channels are used for operation. For details on the functions, see Section C2, "Input-related Functions."...
  • Page 87 C1-5 Table C1.4 Parameters for Two-input Changeover Mode (1/2) Data Position Number Default Symbol Description Unit Data Range Attribute Stored Value Also 0 to 4: MD12  Monitoring mode None For details, see Table MD34  C1.2. Table C1.4 Parameters for Two-input Changeover Mode (2/2) Data Position Number Default Symbol...
  • Page 88 C1-6  Inputs 1 and 2 in Two-input Changeover Mode Table C1.5 Inputs 1 and 2 in Two-input Changeover Mode Input 1 Input 2 See Also Processes signals from either the Processes signals from either the C2, "Input-related input terminal or external input, input terminal or external input, Functions."...

  • Page 89: C1.3 Disabled Mode

    C1-7 C1.3 Disabled Mode The Disabled mode suspends one or both monitoring functions for a pair of two channels. The Odd Channel Disabled mode disables channel 1 for a pair of channels 1 and 2, or channel 3 for a pair of channels 3 and 4. The Both Channels Disabled mode disables both channels, that is, channels 1 and 2 for a pair of channels 1 and 2, or channels 3 and 4 for a pair of channels 3 and 4.
  • Page 90 Blank Page...

  • Page 91: C2. Input-Related Functions

    C2-1 C2. Input-related Functions Input-related functions are used to setup and control inputs. IM 34M06H63-01E 1st Edition : July, 2003-00...
  • Page 92 C2-2 Input-related functions perform input-related processing. They also perform processing for the two-input changeover mode, which uses two types of input to achieve wide-range measurements. EXRJC.n IN.n RJC.n FREQ C2.1 Input type selection C2.2 Power supply frequency selection Input type selection C2.6 Reference junction compensation C2.5 Burnout detection RH.n...
  • Page 93 C2-3 Parameters shown in the block diagram are described below. Table C2.1 Input-related Parameters Data Position Number Default Symbol Description Unit Data Range Value Attribute Stored Also CH1 CH2 PVIN Input process value Industrial unit From -5.0% to 105.0% of (SH - SL) −...

  • Page 94: C2.1 Input Type Selection

    C2-4 C2.1 Input Type Selection Input types may be selected either using hardware switches (for all channels collectively) or using parameters (for individual channels). Input type selection using parameters is available only when switches SW1-4 = OFF and SW5 = 0. Input type selection by parameters uses the Input Type Selection (IN) parameter.
  • Page 95 C2-5 Table C2.3 Input Type Selection (1/2) (SW1-1 = OFF) Input Type Software Input Range Instrument Selector Switch Setting Input Type Default Preset Range Default Range SW1-4 SW1-3 DEC.P Software setting -2000 13700 -2700 13700 ($01) -200.0 to 1370.0C -200 1370 -270 1370...
  • Page 96 C2-6 Table C2.3 Input Type Selection (2/2) (SW1-1 = ON) Input Type Software Input Range Instrument Selector Switch Setting Input Type Default Preset Range Default Range SW1-4 SW1-3 DEC.P Software setting ($01) -3280 24980 -4540 24980 -328.0 to 2498.0°F ($21) -328 2498 -454...

  • Page 97: Power Supply Frequency Selection

    C2-7 C2.2 Power Supply Frequency Selection Power supply frequency may be set either by switches or parameters. Power supply frequency selection by parameters is available only when switches SW1-4 = OFF and SW5=0. The default value is then determined by SW1-2. An appropriate power supply frequency setting reduces the interference of common-mode noise from the power supply on input signals.

  • Page 98: C2.3 Input Range Setting

    C2-8 C2.3 Input Range Setting For each instrument range selected, you may define an input range, which is the actual temperature range to be monitored, by specifying upper (RH) and lower (RL) limits within the instrument range. Some input types such as thermocouple W, however, allow an input range that is wider than the instrument range.

  • Page 99: C2.4 Pv Range Setting (For Two-Input Changeover Mode)

    C2-9 C2.4 PV Range Setting (for two-input changeover mode) The PV range setting defines the range of the output process value in Two-input Changeover mode, in cases where the two input signals have different input ranges. The PV range setting cannot be changed in Single-input mode. For example, if input 1 (channel 1) has input range of 0-500C (RL=0C;...

  • Page 100: C2.5 Burnout Detection

    C2-10 C2.5 Burnout Detection Burnout detection checks for an open circuit on an input. For thermocouple or RTD input, you may define a burnout condition by specifying a threshold value and the direction of change in the input value. For DC voltage input, burnout detection is not available.
  • Page 101 C2-11 CAUTION Burnout detection is not performed when external input (EXPV) is selected. CAUTION If the Burnout Selection parameter is set to ‘Down Scale’ for a thermocouple range, a burnout may not be detected in high temperature environments exceeding 40C. In this situation, set the alarm type to ‘Lower Limit’, set the alarm setting to an appropriate value, and use the alarm for burnout detection instead.

  • Page 102: C2.6 Reference Junction Compensation

    C2-12 C2.6 Reference Junction Compensation If an external reference point device is used to provide better reference junction compensation, set Reference Junction Compensation to ‘Fixed Value’, and set Reference Junction Temperature. Table C2.10 Reference Junction Compensation Parameters Data Position Number Default Symbol Description...

  • Page 103: Broken-Line Biasing

    C2-13 C2.7 Broken-line Biasing The broken-line biasing function biases an input value according to its magnitude. This function is especially useful for correcting input values from a degraded sensor. As shown in the figure below, you will define three input values (X) and specify a bias value (Y) for each input value.

  • Page 104: C2.8 Fixed Biasing

    C2-14 C2.8 Fixed Biasing The fixed biasing function adds a constant bias to input values. The resultant values are used for monitoring. This function is especially useful when a sensor output is always lower than true values by a fixed amount due to the physical condition of the sensor. For example, it may be used when the temperature of a material in a furnace is indirectly determined by measuring the ambient temperature in the furnace, where a fixed bias is added to the ambient temperature to represent the temperature of the material.

  • Page 105: C2.9 Square Root Extraction

    C2-15 C2.9 Square Root Extraction The square root extraction function is especially useful for converting differential pressures measured with a restriction flowmeter using an orifice or nozzle into flow rates. You can also specify a low-cut point below which no square root extraction is done. 100.0% Slope 1 Input...

  • Page 106: C2.10 Input Filtering

    C2-16 C2.10 Input Filtering The input filtering function removes noise from input signals. It is especially useful to remove high frequency noise from flow rate or pressure signals. It performs 1st order delay calculation for filtering. As shown in Figure C2.6, more noise is removed when a larger time-constant is specified. Use the input filtering function in a noisy environment when corrections must be performed constantly.

  • Page 107: C2.11 Two-Input Changeover

    C2-17 C2.11 Two-input Changeover The two-input changeover function has three modes, which are selected by the SELMD parameter. Table C2.15 Two-input Changeover Parameters Data Position Number Default Symbol Description Unit Data Range Attribute Stored Value CH1 CH2 CH3 CH4 761 SELMD Two-input None 0: Automatic changeover using ...
  • Page 108 C2-18 If two inputs have different values, switching between the two inputs may result in an abrupt change in the PV value or a non-continuous PV value. To prevent this, this mode uses the average of the two inputs to compute the PV value in the overlapping range, as shown in the formula above.

  • Page 109: C2.12 External Input

    C2-19 C2.12 External Input The input value used in monitoring may be switched to an external input, which may be, say, processed data from a CPU module. An external input must fall within the range of -5.0% to 105.0% of (SL to SH). Use the EXPV/PV parameter to switch between external input and normal input.
  • Page 110 Blank Page...

  • Page 111: C3. Alarm Function

    C3-1 C3. Alarm Function This chapter describes the alarm functions of the module. IM 34M06H63-01E 1st Edition : July, 2003-00...
  • Page 112 C3-2 The module has four alarm functions for each channel, which you can define individually using an SP Number. Alarm settings may be changed during operation. PV.n DLY1.n DLY2.n DLY3.n DLY4.n m.A1.n m.A2.n m.A3.n m.A4.n Alarm processing 1 Alarm processing 2 Alarm processing 3 Alarm processing 4 HY1.n...
  • Page 113 C3-3 Table C3.1 Alarm Parameters Data Position Number Default Symbol Description Attribute Stored Unit Data Range Value Process value Industrial From -5.0% to 105.0% of − − unit (PRH - PRL) CSPNO Current SP number 1 to 4 − − None ALM.STUS Alarm status Each bit represents an...

  • Page 114: C3.1 Alarm Types

    C3-4 C3.1 Alarm Types Table C3.3 lists the alarm types. For details on their operations, see Table C3.4. Table C3.3 List of Alarm Types Alarm Description Alarm Types Description Types No alarm Upper limit without waiting Upper limit with waiting Lower limit without waiting Lower limit with waiting Table C3.4 describes the alarm functions.

  • Page 115: C3.2 Wait Function

    C3-5 C3.2 Wait Function When the wait function is specified, the alarm function is temporarily disabled (enters wait state) for a specified period after the following events: - Power up - Change in SP number (SPNO) Figure C3.2 below shows an example of the alarm function when the alarm type is set to Lower Limit with Waiting.

  • Page 116: C3.3 Alarm Delay Timer

    C3-6 C3.3 Alarm Delay Timer The alarm delay timer function delays the generation of an alarm. The alarm turns on only if the alarm condition persists until a delay timer has timed out. If an alarm condition disappears before a delay timer has timed out, the timer resets. Changing an alarm type or powering down also resets the delay timer.

  • Page 117: C4. Disable Backup Function

    C4-1 Disable Backup Function The Disable Backup Function (NBKUP) parameter can be used to suspend storing of parameters to the EEPROM. The module has two types of parameters: stored and non-stored. Stored parameters preserve their data even when the module is powered down. For details on whether a parameter is stored or non-stored, see the individual parameter table or the list of registers.
  • Page 118 Blank Page...

  • Page 119: C5. Self-Diagnosis Function

    C5-1 Self-diagnosis Function This chapter describes how to identify and rectify problems that may occur at start up or during normal operation. IM 34M06H63-01E 1st Edition : July, 2003-00...

  • Page 120: How To Check For Errors

    C5-2 C5.1 How to Check for Errors When an error occurs, the ERR LED lights up, and the Operating Status (RUN.STUS) and Error Status (ERR.STUS) registers indicate details of the error. C5.2 List of Error Statuses When an error occurs, the Operating Status (RUN.STUS) and Error Status (ERR.STUS) registers provide error information by turning on relevant bits.
  • Page 121 C5-3 Table C5.3 Error Status ERR.STUS Usage Pos. 15 14 13 12 11 10 System data error Calibration value error Monitoring/input parameter error Operation parameter error AD converter error RJC error EEPROM error  Troubleshooting Errors at Powering Up The following table lists the errors that may be returned by the self-diagnosis procedure at powering up.
  • Page 122 C5-4 Table C5.5 Operation Errors (2/2) ERR.STUS Trouble- Error Condition Monitor Operation Measurement Status (bit position) shooting Flashing PV burnout Depends on BSL Depends on Check the Proces burnout selection. BSL burnout sensor and s error selection. sensor circuit. PV  OVER 12/13 PV = 105% or -5% Limit values...

  • Page 123: C6. Selecting Temperature Unit

    C6-1 C6. Selecting Temperature Unit This section describes how to set the temperature unit used with this module. IM 34M06H63-01E 1st Edition : July, 2003-00...
  • Page 124 C6-2 You may switch the temperature unit between C and F using SW1-1 located on the side of the module. SW1-1: Temperature unit selector switch SW1-2: Power frequency selector switch SW1-3: Input type selector switch SW1-4: Input type selector switch SW5: Input type selector switch (Input type is determined by the combined values of SW1-3, SW1-4, and SW5.)
  • Page 125 Content D-1 Temperature Monitoring Module PART-D Troubleshooting IM 34M06H63-01E 2nd Edition IM 34M06H63-01E 2nd Edition : Jul.16, 2015-00...
  • Page 126 Blank Page...

  • Page 127: D1. Before Performing Checks

    D1-1 D1. Before Performing Checks The temperature monitoring module stores many preset values internally. Sometimes, temporary preset values are written for testing purposes, such as during trial runs and program debugging, and are left uncorrected. They are stored in the module, even after powering off.
  • Page 128 Blank Page...

  • Page 129: D2. Troubleshooting A Specific Problem

    D2-1 D2. Troubleshooting a Specific Problem This section describes what you should do if you observe the following phenomena: Input does not change, or fluctuates excessively. The ALM or ERR LED indicator is lit or flashing. For details on the self-diagnosis function and corrective measures, see Section C5, "Self-diagnosis Function."...
  • Page 130 D2-2 (1) Input does not change, or fluctuates excessively If input does not change, or fluctuates excessively, there may be a problem with sensor connection, module usage, or register preset values. Follow the steps below to locate the cause. - Confirm that the sensor is securely and correctly connected. - Confirm that the registers are correctly set.
  • Page 131 D2-3 (2) The ALM or ERR LED indicator is lit or flashing If the ALM or ERR LED indicator is lit or flashing, an alarm or error has been detected. An input circuit may be incorrectly connected, or the self-diagnosis function may have detected an internal error.
  • Page 132 Blank Page...
  • Page 133 Appx. Temperature Monitoring Module List of Registers IM 34M06H63-01E 2nd Edition Appendix Table 1 Common Process Data (1/2) Data Position Number Symbol Description Attribute Stored See Also PV.1 — PV.2 — Process values for channels 1 to 4 PV.3 — PV.4 —...
  • Page 134 Appx. Appendix Table 1 Common Process Data (2/2) Data Position Number Attribute Stored See Also Symbol Description ERR.STUS.1 — ERR.STUS.2 — Error status for channels 1-4 ERR.STUS.3 — ERR.STUS.4 — Not used Appendix Table 2 Setup Control Parameters and Function Control Parameters Data Position Number Symbol Description...
  • Page 135 Appx. Appendix Table 4 Process Data Data Position Number Symbol Description Attribute Stored See Also PVIN Input process value — Process value — Not used CSPNO Current SP number — RUN.STUS Operating status — C10. ALM.STUS Alarm status — ERR.STUS Error status —...
  • Page 136 Appx. Appendix Table 6 Input Parameters Data Position Number Symbol Description Attribute Stored See Also Input type selection C2.1  When the hardware switch is disabled, this parameter selects the input type for each channel. When the hardware switch is enabled, the switch setting selects a common input type for all channels.
  • Page 137 Appx. Appendix Table 7 Operation Parameters (2/3) Data Position Number Symbol Description Attribute Stored See Also 1.A1 Alarm 1 preset value  1.A2 Alarm 2 preset value  1.A3 Alarm 3 preset value  1.A4 Alarm 4 preset value  Not used 2.A1 Alarm 1 preset value...
  • Page 138 Appx. Appendix Table 7 Operation Parameters (3/3) Data Position Number Symbol Description Attribute Stored See Also 3.A1 Alarm 1 preset value  3.A2 Alarm 2 preset value  3.A3 Alarm 3 preset value  3.A4 Alarm 4 preset value  Not used 4.A1 Alarm 1 preset value...
  • Page 139 Appx. Appendix Table 8 Operating Status RUN.STUS Symbol Description 15 14 13 12 11 10 Pos. ― ― ― ― EXPV/PV 0: Normal, 1: External ― input ― ― B.OUT PVIN burnout +OVER PVIN +OVER PVIN -OVER -OVER B.OUT PV burnout +OVER PV +OVER PV -OVER...
  • Page 140 Appx.  Common Precautions for Registers CAUTION In Appendix Tables 1-7, only data registers with specified symbol and description are valid data registers provided with this module. Data registers displayed with gray background or labeled as "not used" in the “Description” column are invalid. Any data written to an invalid register is ignored, in so far as it has no effect on module operation.
