The DXE-HEXX-1SCP-2 -
designed to be used in constructing the DX Engineering broadband HEXXAGONAL BEAM,
but may be used on other designs. For more information or to view the entire DX Engineering
HEXXAGONAL BEAM manual - visit the DX Engineering web site at:
DXE-HEXX-1SCP-2 -

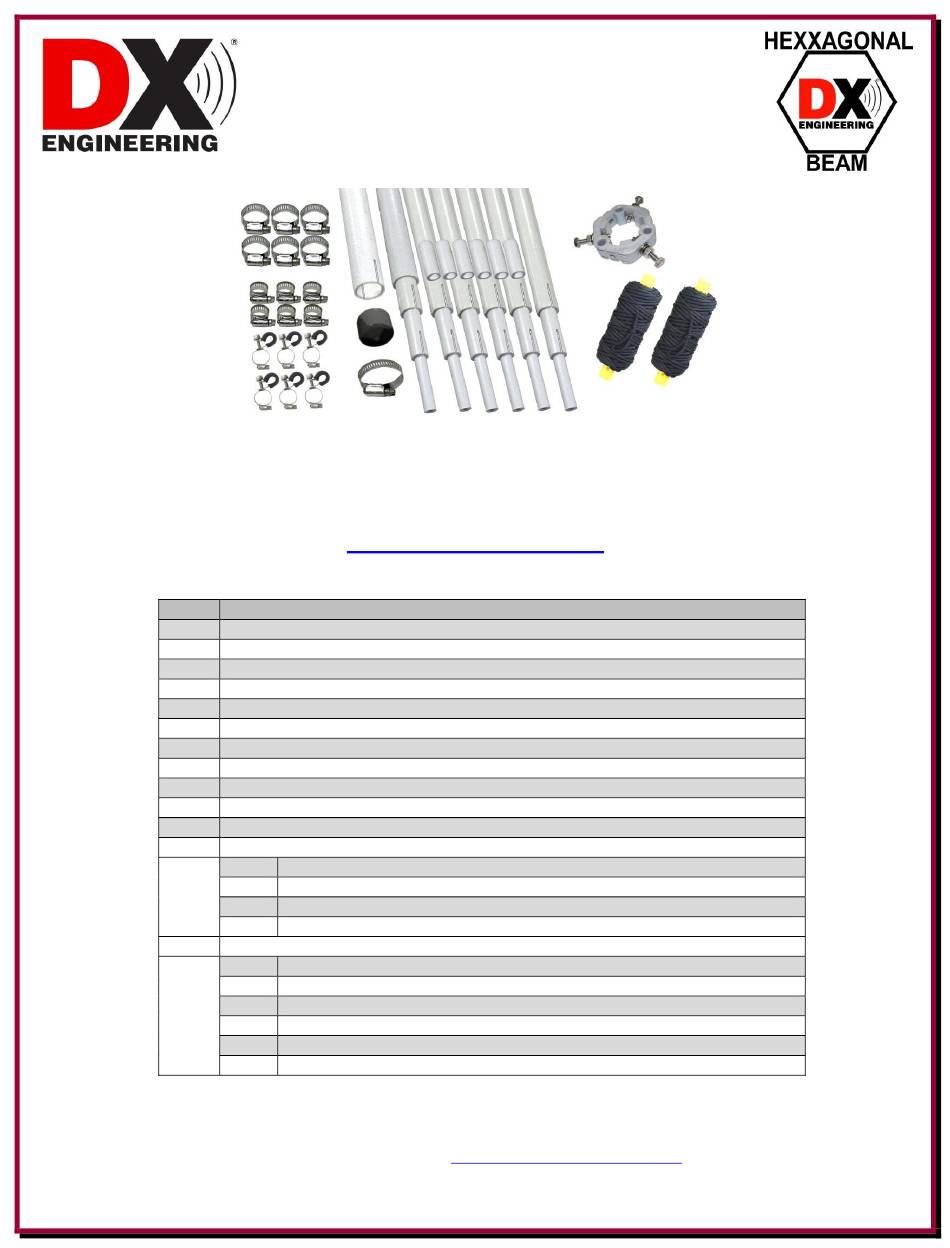

HEXXAGONAL BEAM Spreader & Center Post Parts List
Qty
1
Fiberglass Tube, Gray, 1.25" OD x 58" Long, .120 Wall (for the Center Post)
6
Fiberglass Tube, Gray, 1.00" OD x 58" Long, .120 Wall with slits
6
Fiberglass Tube, Gray, 0.75" OD x 43" Long, .120 Wall with slits
6
Fiberglass Tube, Gray, 0.75" OD x 5" Long, .120 Wall
6
Fiberglass Tube, Gray, 0.50" OD x 48" Long, .120 Wall
1
Tube, Antenna, Aluminum, 1.375" OD x 14" Long, Slit one end (for the Center Post)
6
DXE-ECL-1000 - Element Clamp for 1" and 1.125" OD tubing
6
DXE-ECL-0875 - Element Clamp for .75" and smaller OD tubing
1
DXE-ECL-16SS - Element Clamp for 1.375" and 1.5" OD tubing
1
Vinyl End Cap, Black
2
SYN-DBR-94-100 - Dacron/Polyester Rope, 100 Foot Roll
1
Spreader Rope Connection Assembly - includes the following parts:
6
6
6
6
1
Center Post Rope Connection Assembly - includes the following parts:
1
3
3
3
3
3
HEXXAGONAL BEAM
Spreader and Center Post Kit
DXE-HEXX-1SCP-2
DXE-HEXX-1SCP-2-INS Rev. 6b
HEXXAGONAL BEAM Spreader & Center Post Kit is especially
www.DXEngineering.com
Band Clamp with Welded Stud, 0.5" x 0.313 Wide
Cushioned P-Clamp, 0.375"
#10 Stainless Steel Flat Washer
10-24 Stainless Steel Nyloc Hex Nut
DXE-MPH-1 Multi-Purpose Hub 1.5"
1/4-20 x 1.25" Stainless Steel Hex Head Bolt
1/4-20 Stainless Steel Nut
1/4-20 Stainless Steel Square Nut
1/4" Stainless Steel Split Washer
1/4" Stainless Steel Flat Washer, 18-8
© DX Engineering 2019
1200 Southeast Ave. - Tallmadge, OH 44278 USA
Phone: (800) 777-0703 ∙ Tech Support and International: (330) 572-3200
Fax: (330) 572-3279 ∙ E-mail:
Description
DXEngineering@DXEngineering.com
Advertisement
Table of Contents
Related Manuals for DX Engineering DXE-HEXX-1SCP-2
Summary of Contents for DX Engineering DXE-HEXX-1SCP-2
- Page 1 DX Engineering broadband HEXXAGONAL BEAM, but may be used on other designs. For more information or to view the entire DX Engineering HEXXAGONAL BEAM manual - visit the DX Engineering web site at: www.DXEngineering.com...
- Page 2 There are parts made from fiberglass in this kit. Take normal precautions when handling any fiberglass material. There may be fiberglass dust, slivers or particles present when the fiberglass parts were manufactured. The use of typical fiberglass handling safety gear (gloves, dust mask, eye shield, clothing, etc.) when handling and working with fiberglass is recommended.
- Page 3 As with all amateur radio experiments, your results may vary. If you plan on using these fiberglass spreaders with the DX Engineering Hexxagonal Beam, please refer to the instruction manual for the entire HEXXAGONAL BEAM for more details.
- Page 4 All products manufactured by DX Engineering are warranted to be free from defects in material and workmanship for a period of one (1) year from date of shipment. DX Engineering’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted; no allowance shall be made for any labor charges of Buyer for replacement of parts, adjustment or repairs, or any other work, unless such charges are authorized in advance by DX Engineering.
