CIR-TM7000E-G & CIR-TM7000-G
Suspension Upgrade Procedure
www.GreenSeriesFitness.com
©December 2014
Call Toll free at (800) 269-7130
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CIR-TM7000E-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GREEN SERIES FITNESS CIR-TM7000E-G

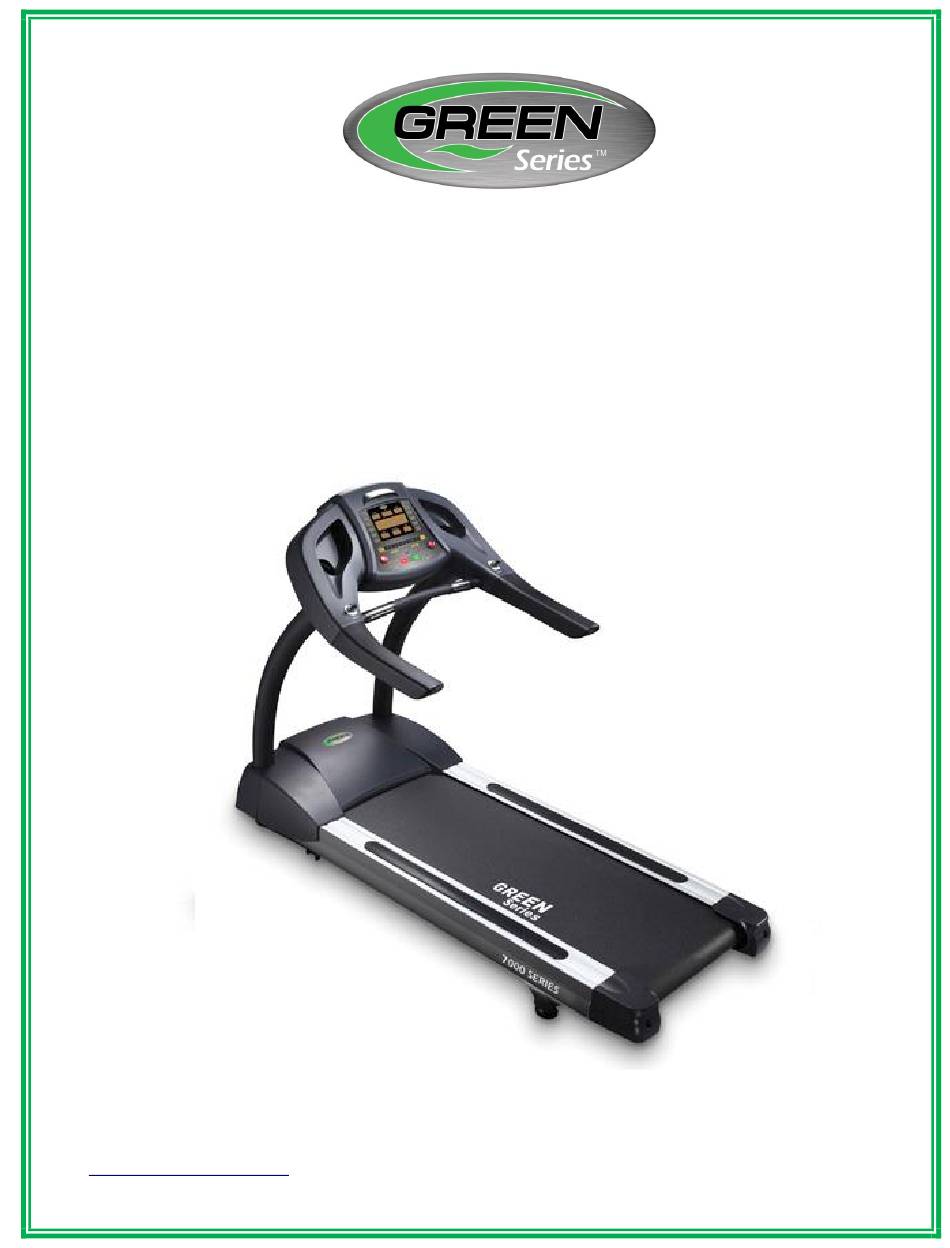

  • Page 1 CIR-TM7000E-G & CIR-TM7000-G Suspension Upgrade Procedure www.GreenSeriesFitness.com ©December 2014 Call Toll free at (800) 269-7130...
  • Page 2 1. Front hood area disassembly 1.1. Start treadmill and elevate to 6%. Once there, treadmill front frame should be at 9” off ground. 1.2. Go to front of treadmill and shut off breaker. Unplug power cord from wall. www.GreenSeriesFitness.com ©December 2014 Call Toll free at (800) 269-7130...
  • Page 3 1.3. Remove the Sure-Connect from the treadmill and unplug the power cord from the treadmill. 1.4. Remove the screws from the right and left console mast covers. Slide up the console mast covers and rubber grommets upward on the console mast support tubes. Secure by pulling half the rubber grommets through the console mast covers.
  • Page 4 2. Side Rail Disassembly & Suspension Change 2.1. Get a 25lb or 30lb hex dumbbell or equality just behind front elevation frame pivot point. (Due to the side rails that need to be taken out the rear of the treadmill, rear feet will be place on these mounts later.
  • Page 5 2.3. Take RT & LT rear roller covers off. Two (2) screws per side, Phillip head #2 screw driver. First screw is under side and second one on top. Takes screws and put in rear covers when taken off. Note: Magnetic end screw drivers work the best www.GreenSeriesFitness.com ©December 2014 Call Toll free at (800) 269-7130...
  • Page 6 2.4. Mark with white or silver permanent marker the placement of RT & LT rear roller cover mounts before disassembly. Mark top and sides. 2.5. Take two (2) screws and flat washers out per side. #2 Phillip screw driver. Store in rear roller covers. www.GreenSeriesFitness.com ©December 2014 Call Toll free at (800) 269-7130...
  • Page 7 2.6. Loosen four (4) allen bolts per side under side rails ½ to 1 turn only. Old versions 4mm allen head. (new versions 5mm allen head) Note: Do not use old worn down Allen wrenches. This will strip the bolt heads and NOT COVERED under warranty. 2.7.
  • Page 8 2.8. See picture below for the rows to be explained in the following procedures. Front Row #1 Middle Front Row #2 Middle Rear Row #3 Rear Row #4 2.9. In Middle Rear Row #3, take 5mm T handle Allen wrench through deck to suspension screw in frame. Take out both LT &...
  • Page 9 2.10. Go to front row #1 suspension. Take out #3 Philips screw and re-tighten 5mm allen bolt suspension to frame. Estimate is 30 lbs of torque. Best way is to put #2 Phillips screw driver between deck and frame to keep suspension grommet from going sideways. Note: Make sure the suspension stays straight and not sideways hitting side of frame.
  • Page 10 2.12. After completing step 2.11, reattach the 8mm x 40mm Philips head bolt back into front row #1 suspension with clip. Tighten to estimated 20 lbs of torque. Note: Make sure to use blue Loctite on end of bolts. 2.13. Go to rear of treadmill and take off both LT &...
  • Page 11 2.14. On Rear Middle Row #3 install rubber suspension. Go from under frame to suspension. Hand screw down into frame threads. Note: Keep fingers from going on top of rubber suspension just in case running deck slips from pry contact and comes down on suspension. 2.15.
  • Page 12 2.16. Once Step 2.15 is complete take out all pry items and let running deck rest on suspension. Reinstall Rear Row #4 LT & RT Philips head 8mm x 30mm bolts. Estimate is 30 lbs of torque. Note: Make sure to use blue Loctite on end of bolts. 2.17.
  • Page 13 2.18. Once Step 2.17 is complete, finish installation rest of 8mm nuts to Middle Front Row #2 and Middle Rear Row #3. Secure 8mm nuts with 13mm socket at estimated 30 – 50 lbs of torque. www.GreenSeriesFitness.com ©December 2014 Call Toll free at (800) 269-7130...
  • Page 14 2.19. Slide both RT & LT side rails back on treadmill. Note: Do not tighten Allen bolts down at this time. 2.20. Re-install both RT & LT rear roller cover mounts. Easiest to put screw driver through rear top hole securing screw with washer to lower mount and reattaching loosely to frame. Then install the second screw with washer with finger holding side of screw to line up hole to screw end.
  • Page 15 2.21. Line up rear roller cover mounts to previous markings and tighten down screws to estimated 10- 20 lbs of torque. 2.22. Re-install both RT & LT roller covers. Loosely install top screw then put in lower screw. Once both are loosely installed tighten both down to estimated 10-20 lbs of torque. www.GreenSeriesFitness.com ©December 2014 Call Toll free at (800) 269-7130...
  • Page 16 2.23. Now slide Right side rails back to rear roller cover and first tighten 4mm old style (or 5mm new style) Allen bolts rear area. Second secure the other three (3) Allen bolts from rear roller to front roller area. Repeat for Left side. Torque down to 20 lbs of pressure. Note: Do not use old worn down Allen wrenches.
  • Page 17 Final Assembly 3.1. Connect the AC power cord to the treadmill. Do not attach the Sure Connect bracket at this time. 3.2. Power up the treadmill and bring the speed up to 2- 4 MPH. check the running belt and drive belt does not slip.
  • Page 18 3.3. Treadmill is now ready for motor hood cover to be installed. 3.4. Ensure that the mounting clips on each side of the treadmill are centered on the attach points. If screws do not securely stay in clip, depress with pliers down a bit to give the screws metal to attach to. www.GreenSeriesFitness.com ©December 2014 Call Toll free at (800) 269-7130...
  • Page 19 3.5. Using the screws removed at the beginning of the procedure; install the two (2) machine screws first at rear of motor hood to frame. 3.6. After installing the machine screws at the front of the motor hood, install the two (2) self-tapping sheet metal screws on each side of the motor hood.
  • Page 20 3.7. After the screws of the motor hood have been secured, attach the Sure Connect to the power cord receptacle. Now you are ready for normal treadmill operation. www.GreenSeriesFitness.com ©December 2014 Call Toll free at (800) 269-7130...
