GREEN SERIES FITNESS CIR-TM8000E-G Owner's Manual

Full commercial treadmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
CIR-TM8000E-G
Full Commercial Treadmill
Full Commercial
Light Commercial
Install Date: _________________________
Serial Number: ________________________
www.GreenSeriesFitness.com
©April 2017
Call Toll free at (800) 269-7130
CIR-TM8000E-G
Revision 1.3
John C. Jensen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIR-TM8000E-G and is the answer not in the manual?

Questions and answers

Related Manuals for GREEN SERIES FITNESS CIR-TM8000E-G

Summary of Contents for GREEN SERIES FITNESS CIR-TM8000E-G

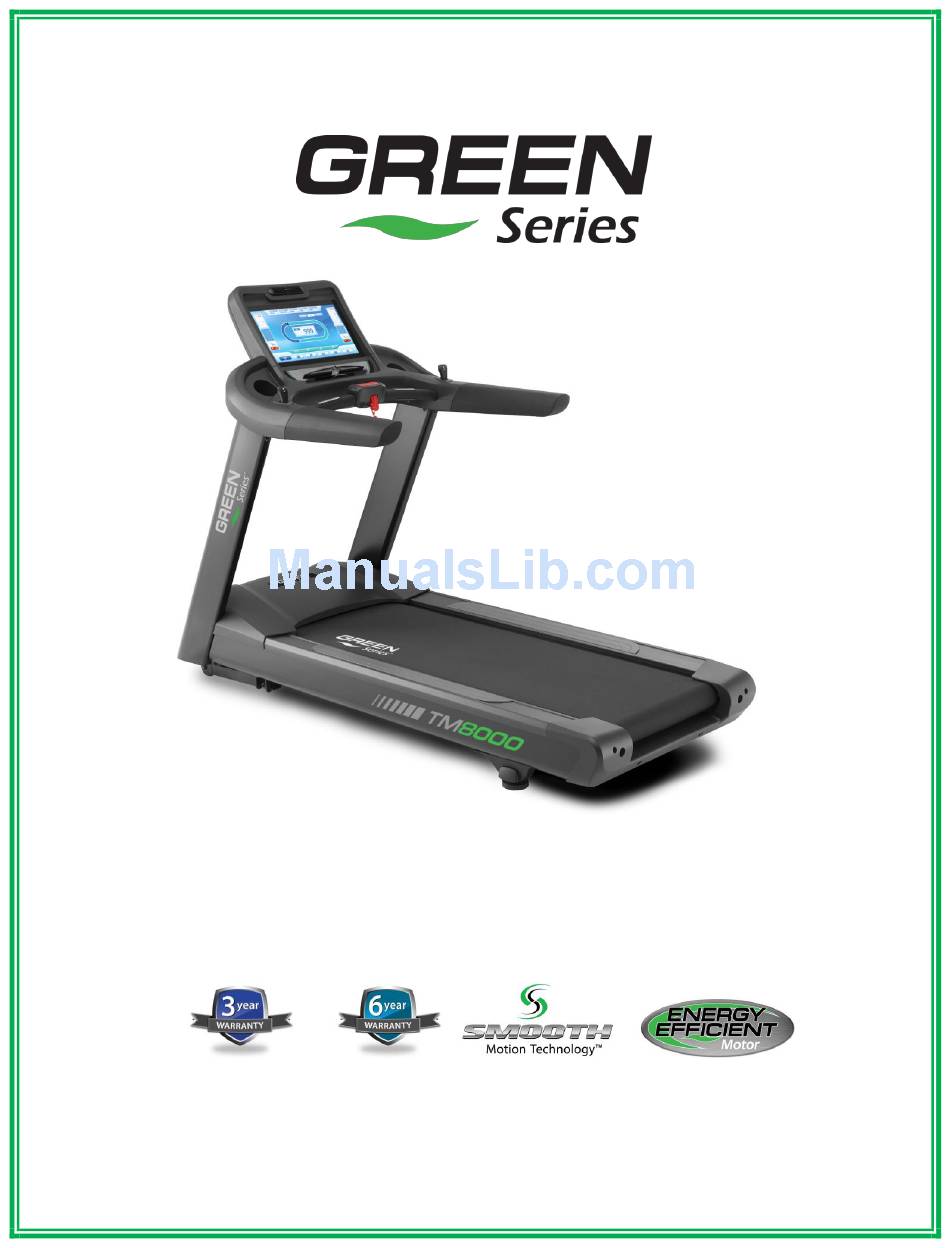

  • Page 1 Owner's Manual CIR-TM8000E-G Full Commercial Treadmill Full Commercial Light Commercial Install Date: _________________________ Serial Number: ________________________ www.GreenSeriesFitness.com ©April 2017 Call Toll free at (800) 269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 2: Table Of Contents

    PROGRAMS ……………………………..………………………………………...….….21-34 Control panel function and programs OPERATION ……………………………………………………………………….…..…35-37 BELT ADJUSTMENT ……………………………………………………………………….38 CARE & MAINTENANCE …………………………………………………………..39-40 TROUBLESHOOTING …………………………………………………………………..41-42 PARTS LIST ………………………………………………………………………………43-44 EXPLODED DRAWINGS ………………………………………………………………..45-48 WARRANTY ……………………………………………………………………………...49-51 www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 3: Safety Precautions

    These spacing recommendations should be used when positioning equipment away from sources of heat, such as radiators, heat registers, and stoves. Avoid temperature extremes. 12” 300mm 24” 24” 24” 600mm 600mm 600mm 79” 2000mm www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 4 Green Series Fitness prior to use.  Don't attempt to use this unit with an extension cord which does not meet Green Series Fitness criteria of the following; 12 gauge SO3, maximum of 25 foot length with a 20 amp rating.
  • Page 5 13. The equipment is intended for commercial use. Store the safety key in a secured location while not in use and keep away from children. Maximum user weight: 450Ibs (204 kg) . www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 6 Sustained exercise conditions your heart, lungs and muscles. The longer you are able to sustain exercise within your target heart range, the greater the aerobic benefits. To begin maintain 2~3 minutes of steady, rhythmic exercise, then check your heart rate. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 7 These side platforms are an appropriate position to relax before starting the training again. For your own safety and comfort, always start your training sessions at low speed. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 8 In case of emergency, press the STOP key, hold the handrails and get off when the belt stops. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 9: Target Heart Rate Zone

    *The noise value list below is when it is at top speed with unloading status : LpAeq(dB) < 70dB www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 10: Technical Specifications

    Manual mode: Yes Standard features: Total used time, distance, heart rate, calories, speed, incline, hand pulse, fan, quick speed / incline button, Wireless HR receiver, Blue Tooth. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 11: Unpacking & Assembly

    Main body Right console Console mast Left console mast (Left console mast with transparent bag) #3-5 Right handlebar #1-23 #3-6 #1-22 Left handlebar Adjustable pad cover www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 12: Hardware Kit

    Allen wrench / Allen wrench / Power cord /1pcs 1pcs (5mm) 1pcs (6mm) 1pcs (6mm) #3-14 Power cord locker Cable Connector / 1pc (Power cord) /1pcs www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 13 *Notice: Because of heavy weight, please assemble this treadmill more than two people. Step1: Loosen the motor cover screws, lift up and then set the motor cover aside. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 14 2) Using a 6mm Hex wrench, fit (8) M8x20mm bolts, (8) M8 Lock Washers and (8) M8 Flat Washers into the Right and Left Console Masts to Main Body. (Do not tighten until Step 3). #3-8 #3-9 #3-11 Allen wrench / 1pcs (6mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 15 Using a 5mm Hex wrench, tighten the (6) M8x15mm Bolts and (6) Flat Washers. Using a 6mm Hex wrench, tighten the Console Mast to the Main Body. #3-10 #3-11 Allen wrench / 1pcs (5mm) Allen wrench / 1pcs (6mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 16 Step 4: Connect the Network Cable. Pull the Network Cable through the bottom of the Right Mast and connect to the Inverter. Internet wire TV Cable wire www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 17 UNPACKING & ASSEMBLY Step 5: Installing Motor Cover. Using a Phillips head screw driver, tighten the (2) M5x50mm Bolts. #1-34 Allen wrench / 1pcs (5mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 18 Using a 6mm Hex wrench, tighten the Console to Handle Bar with (4) M8x25mm Bolts and (4) M8 flat Washers. (Torque value should be between 210 – 230 Kgf-cm while locking up) #3-7 #3-11 Allen wrench / 1pcs (6mm) www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 19: Unpacking & Assembly

    Step 7: Assembling power cord locker to power cord. Plug in the power cord. Fasten power cord and the power cord locker using the Hex wrench and (1) M3x12mm screw. #3-14 #3-15 www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 20: Warm Up & Cool Down

    Keep your right leg straight and the left foot on the floor; try to stretch your right hand toward the toe, hold this posture for 15 seconds. Relax, and then repeat the action for left leg. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 21: Setting

    2. Press the Green Series logo for 5 seconds to enter the Engineering Mode. Select TV and choose MENU. Press the UP/DOWN button to AUTO TUNING then press OK to start the SCAN TV channel. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 22: Programs

    Speed and incline adjustment: Side speed bar or incline bar to adjust speed or incline, touch the screen again and showing check mark “v” to confirm speed and incline or change by using the UP/DOWN button. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 23 Display window can switch in Sport Mode: Press arrow of Display window to change information. Calories: Calories, Calories/Hour, Pace: Pace, Ave. Pace, Best Pace, Heart Rate: Heart Rate, Max Heart Rate, Ave. Heart Rate. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 24 PROGRAMS 2.1.4. Sport Mode: 2.1.4.1. PROFILE: Shows workout information and graphic. 2.1.4.2. LAP: Shows workout information via Lap. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 25 TV or iPod output. 2.1.5.3. FAVORITE CHANNEL: Add or delete favorite channel into list by press STAR. 2.1.5.4. FULL SCREEN: Touch screen central to show FULL SCREEN. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 26 At Full Screen, press the button on top of the screen to show workout information. The information disappears after 3 seconds. Also, you are able to adjust speed and incline from Quick Shift or Slide Bar. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 27 PROGRAMS 2.1.8. BULLETIN BOARD: Information about club news and classes. 2.1.9. INTERNET: Preset website link. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 28: Quick Start Operation

    2.3.2.2. Enter the desired workout length using the NUMBER KEYPAD and press ENTER. 2.3.2.3. Enter the desired intensity level using the QUICK KEY choose EASY, MEDIUM, HARD. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 29 2.4.3. Enter the desired workout target using the NUMBER KEYPAD and press ENTER. 2.4.4. Press GO to begin the workout. 2.5. Adjust target setting during workout at SPORT MODE. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 30: Heart Rate Control Workout Operation

    2.7.1.1.1. WARM UP: The warm-up is 3 minutes long and runs at 4.8kph (3.0mph) and 0% incline. 2.7.1.1.2. STAGE 1: At the 3 minute mark, the treadmill will gradually increase speed to 7.2kph (4.5mph). The actual test begins at 7.2kph (4.5mph). www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 31 2.7.2 Choose Physical Test by selecting the physical test workout button and press GO to begin the workout. 2.7.2.1 Weight: Enter user weight by NUMBER KEYPAD. 2.7.2.2 Age: Enter user age by NUMBER KEYPAD. 2.7.2.3 Gender: Select gender by pressing MALE or FEMALE. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 32 Bulletin Board: Review AD and Classes information. Same as Bulletined Board in Quick Start Mode. 2.9.4. Internet ICONs: Preset webpage link from treadmill, press the ICON and directly open the webpage. Same function as INTERNET at QUICK START MODE. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 33 At the conclusion of your workout, press the “STOP” icon on the console screen. 2.10.1. Stop Press the “SAVE” icon on the console screen. 2.10.2 SAVE www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 34 USB: For Workout Summary Data Saving and Software Updating When the workout has finished saving, touch the “Main page” icon to return to the main 2.10.3 screen. Main page www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 35: Programs

    PROGRAMS 2.10.4 At this point, the treadmill is ready to begin a new workout routine. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 36: Operation

    (3.5mm) Updating 2. Cell Phone Music. iOS Compatible Supported Android Compatible: i-Phone 4S, i-Phone 4, Cell Phone support i-Phone 3GS/ i-Pod touch Generation 1 - 4 www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 37 Then simply rotate them in or out to adjust the level of the treadmill. When properly adjusted the treadmill should sit firmly on both adjustable pads and all cushions. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 38: Operation

    The running belt should be centered and adjusted within the area which has been indicated by the arrows on right roller cover and left roller cover. The running belt can be worn and damaged if the running belt travels beyond this scope. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 39: Belt Adjustment

    After the belt is centered, increase the speed to 16kph and verify that it is running smoothly. Repeat the above steps if it is necessary. If the above procedure is unsuccessful in resolving the off-center, you may need to increase the belt tension. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 40: Care & Maintenance

    Support recommends that the following preventive maintenance schedule be followed. DAILY • Unplug the treadmill. Clean entire machine using water and a mild soap or other Green Series Fitness approved solution (cleaning agents should be alcohol and ammonia free). MONTHLY or QUARTERLY (depending on usage or dirty environments) •...

  • Page 41: Care & Maintenance

    MAINTAIN LABELS AND NAMEPLATES Do not remove labels for any reason. They contain important information. If unreadable or missing, contact Green Series Fitness for a replacement or an authorized service provider. MAINTAIN ALL EQUIPMENT Preventative maintenance is the key to smooth operating equipment, as well as keeping the user’s liability to a minimum.

  • Page 42: Troubleshooting

    Type of Lubricant: Use only approved lubricant on the walking belt and deck. Green Series Fitness requires the use of Silicon lubricant. Using wax or spray type lubricant, or others, will result in a buildup of a sticky substance on the walking belt and deck.
  • Page 43 If you do not have another treadmill to exchange components with, feel the surface of the power inverter to determine if it is hot to the touch. If it is hot to the touch, replace the power inverter. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 44: Parts List

    Washer / ψ1/4"x1"x1.5t 1-63 H020133-000 1-64 H022401-001 Nut / M6x1x6t mm 1-65 F205015-000 Left Upper Side Rail / K90 1-66 F205016-000 Right Upper Side Rail / K90 www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 45: Parts List

    2-52 F373416-001 Main PCB 2-53 F373399-001 Panel 18.5” Touch 2-54 F373401-001 2-55 F373403-000 WiFi Antenna 15.6” Panel Box 2-56 F270763-000 2-57 F916404-009 Lower Overlay / K90 www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 46: Exploded Drawings

    EXPLODED DRAWING www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 47: Exploded Drawing

    EXPLODED DRAWING www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 48 EXPLODED DRAWING www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 49: Exploded Drawings

    EXPLODED DRAWING www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 50: Warranty

    The warranty and remedies set forth below are exclusive and in lieu of all others, oral or written, expressed or implied. No reseller, agent or employee is authorized to make any modification, extension or addition to this warranty. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
  • Page 51 13. GREEN SERIES™ makes no warranty either expressed or implied regarding third-party (non-GREEN SERIES™) installed parts, accessories or modifications. 14. All GREEN SERIES™ equipment shall be properly cleaned and cared for in accordance to the procedures outlined the in the owner’s manual. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...

  • Page 52: Warranty

     By using this product, I indicate that I understand and agree to the terms of this warranty. www.GreenSeriesFitness.com ©April 2017 Call Toll free at 800-269-7130 CIR-TM8000E-G Revision 1.3 John C. Jensen...
