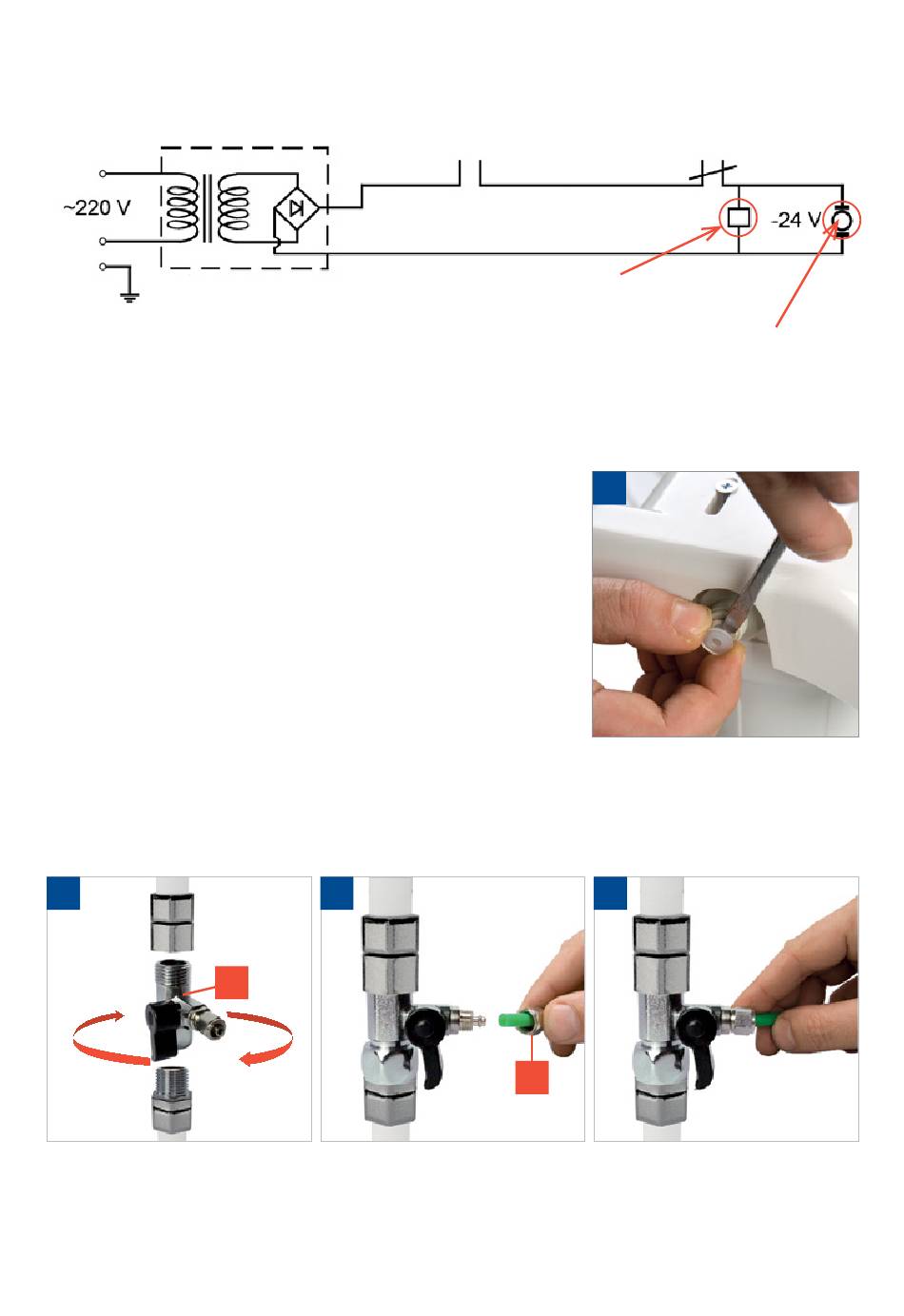

ELECTRICAL SCHEME OF THE REVERSE OSMOSIS SYSTEM FOR MODELS
Power supply unit
We recommend carry out the system installation with specialists or install it strictly in
accordance with the manual.
It is not recommended to disassemble factory
connections – the system is supplied in the assembled
condition and is tested for sealness with the high pressure.
Remove the filter from its packing box. Remove transport
plugs (!).
Install the bracket with cases (and cartridges) at a
vantage place at a height of no less than 15 cm from cases
bottom to the floor.
The system and storage tank should be installed at a
distance of no less than 1 meter from heaters.
Connection to the water conduit
The system is connected to the COLD water main line.
Make sure that the water feed to the connection point is shut off!
1. Install the tee-adapter (A) on the cold water main line and seal joints (Fig. 1).
2. Insert a plastic tube into a nut (B) (Fig. 2). Insert the pipe into the ball tap fitting against
stop and tightly screw a nut (Fig. 3).
1
A loose end of this tube is connected to the filter input or to the low pressure controller
tee (for models with the pump) (Fig. 4).
WITH THE PUMP

SYSTEM INSTALLATION

2
А
Low pressure
controller
Solenoid valve
В
High pressure
controller
Pump electric motor
!
