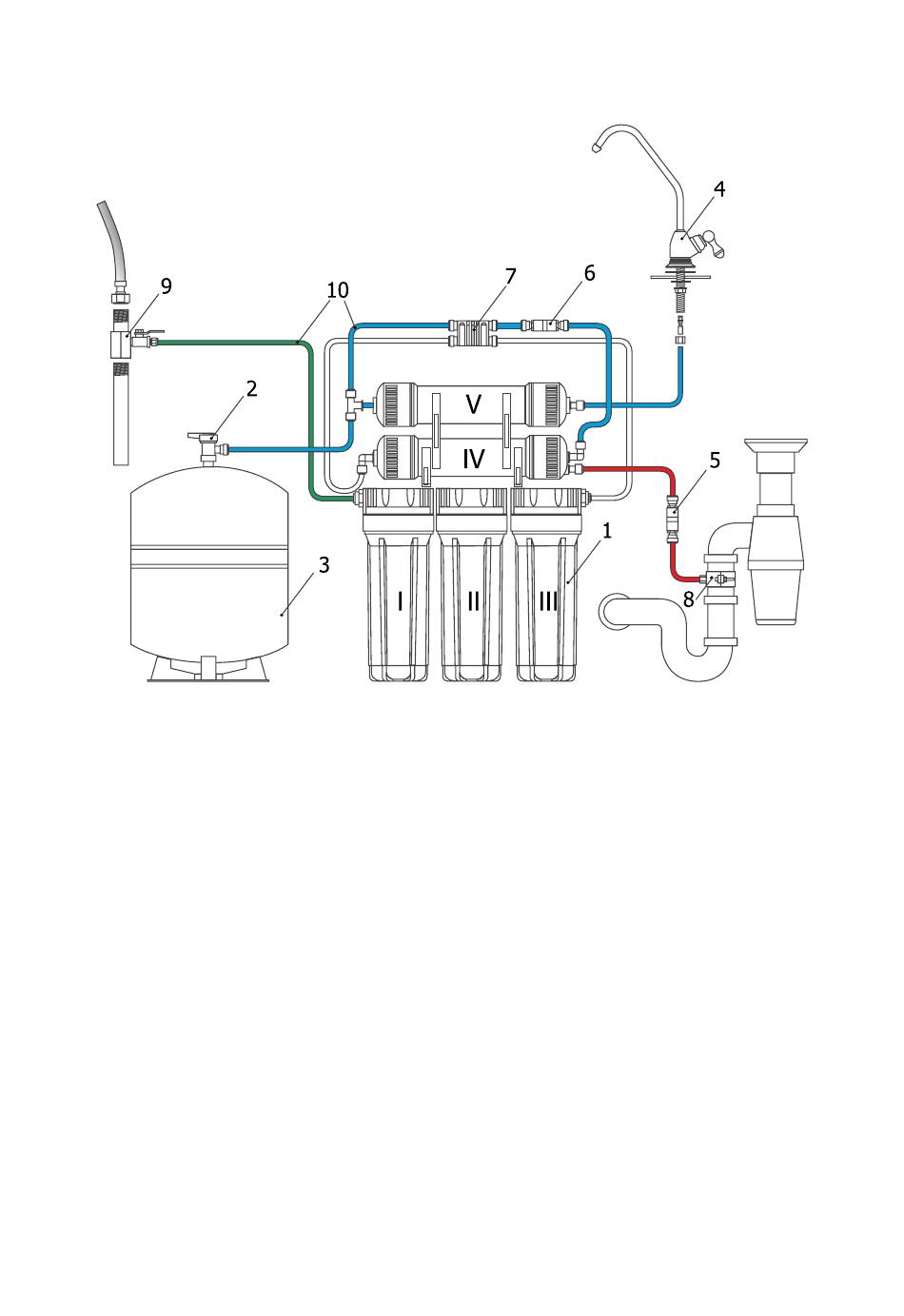

CONNECTION DIAGRAMS AND A SCOPE OF DELIVERY OF

1. Cases with filtering elements on the frame ............................................. 1 set
I – a case of the mechanical filter
II, III – cases of carbon filters
IV – a case of the reverse osmosis membrane
V – a case of the carbon post-filter
2. A gate of the storage tank .......................................................................... 1 unit
3. Storage tank................................................................................................ 1 unit
4. Tap with clear water ................................................................................... 1 set
5. Drain flux limiter ......................................................................................... 1 unit
6. Reverse-flow valve ..................................................................................... 1 unit
7. Automatic water switch ............................................................................. 1 unit
8. Drain strap .................................................................................................. 1 set
9. Tee (adapter) with the water feed tap ....................................................... 1 unit
10. JG Pipe 1/4'' ................................................................................................ 1 set
The manufacturer reserves the right make small improvements of the system structure and
*
configuration without their reflection in this manual.
