Geyser ALLEGRO Manual page 10

The storage tank assembly
Remove the tank from the package. Install the tank on the support in such position, in
which the tank is more stable.

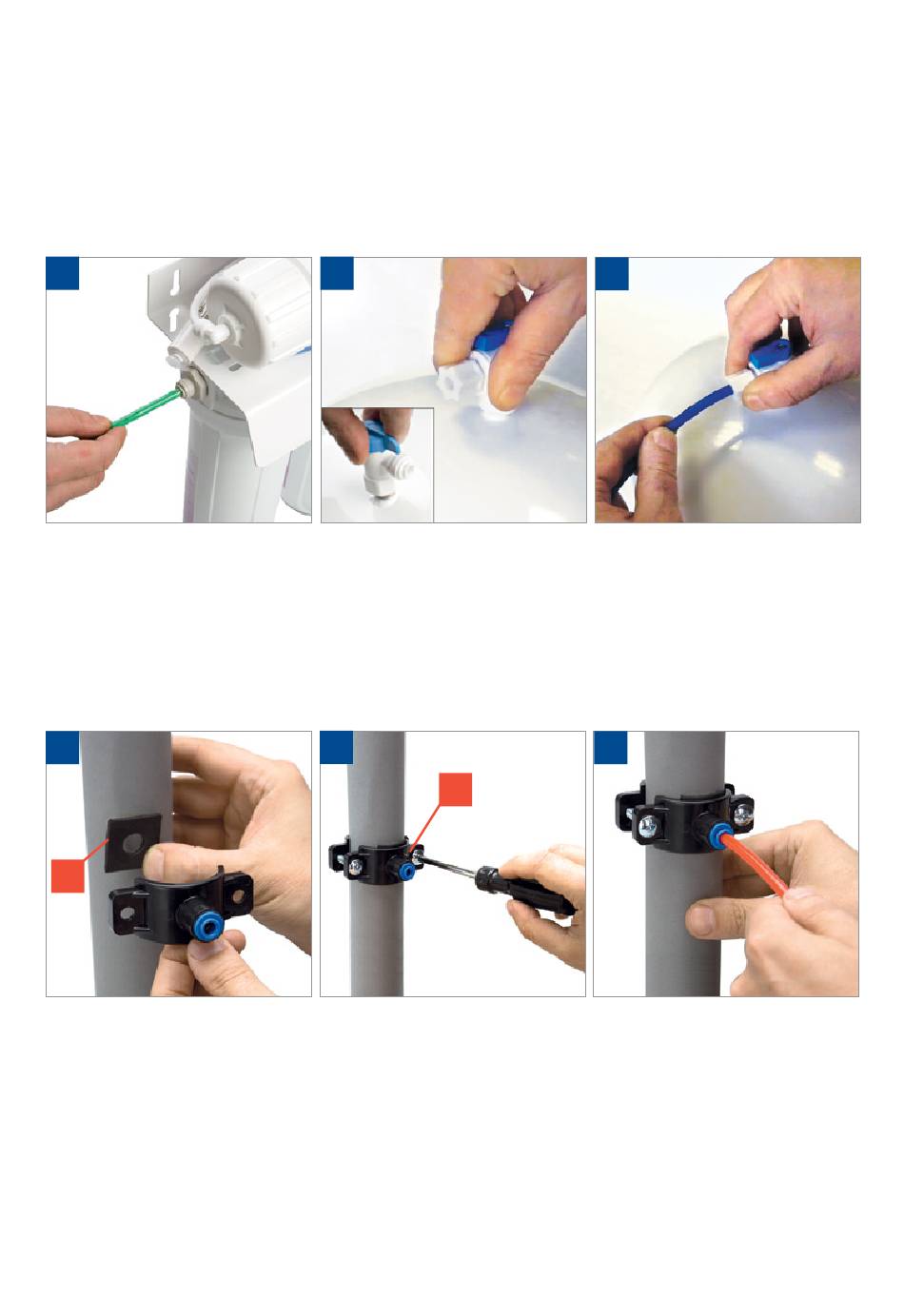

Screw a gate of the storage tank on the threaded fitting (Fig. 5).
Use the FUM tape for sealing connections.
Put a cap nut on the blue tube, insert a plastic grommet into the tube against stop and
screw a nut on the storage tank gate fitting.
Insert a loose end of the tube to the carbon post-filter tee against stop.
4
Drain strap installation
It is recommended to install a strap on the drain line 40 mm in diameter after the
syphon.
Drill a hole 7 mm in diameter at the place, where you plan to install the strap. If the drain
line is positioned horizontally, drill a hole on the pipe top part so that to avoid the waste
water penetration to the filter.
Remove a protecting film from the sealing gasket.
1
D
Glue the gasket (D) from the strap inner side aligning simultaneously a hole in the gasket
and a hole in the strap fitting (Fig. 1).
Lock the strap (E) firmly on the drain line using screws aligning simultaneously holes of
the fitting and the drain line (Fig. 2). It is required to tighten fixing screws uniformly (without
misalignment) so that both parts of the strap are placed in parallel.
Insert the red tube from the drain flux limiter (item 5, see the Connection diagram) into
the drilled hole for a length of 7-10 mm through the strap (E) (Fig. 3).
10
5
2
E
6
3
