- Page 1 WATER PURIFICATION SYSTEM ON THE BASIS OF THE NANOFILTRATION GEYSER M AN UA L NANOTECH for installation and operation of a HOUSEHOLD FILTER 12 l MODIFICATIONS GEYSER-NANOTECH GEYSER-NANOTECH P...
-
Page 3: Table Of Contents
All functionality capabilities, an also a method of installation of the water purification system Geyser are described in this manual. Please read it carefully and retain for future reference. The water purifier set includes all parts required for using immediately after the installation. -
Page 4: Geyser Technologies

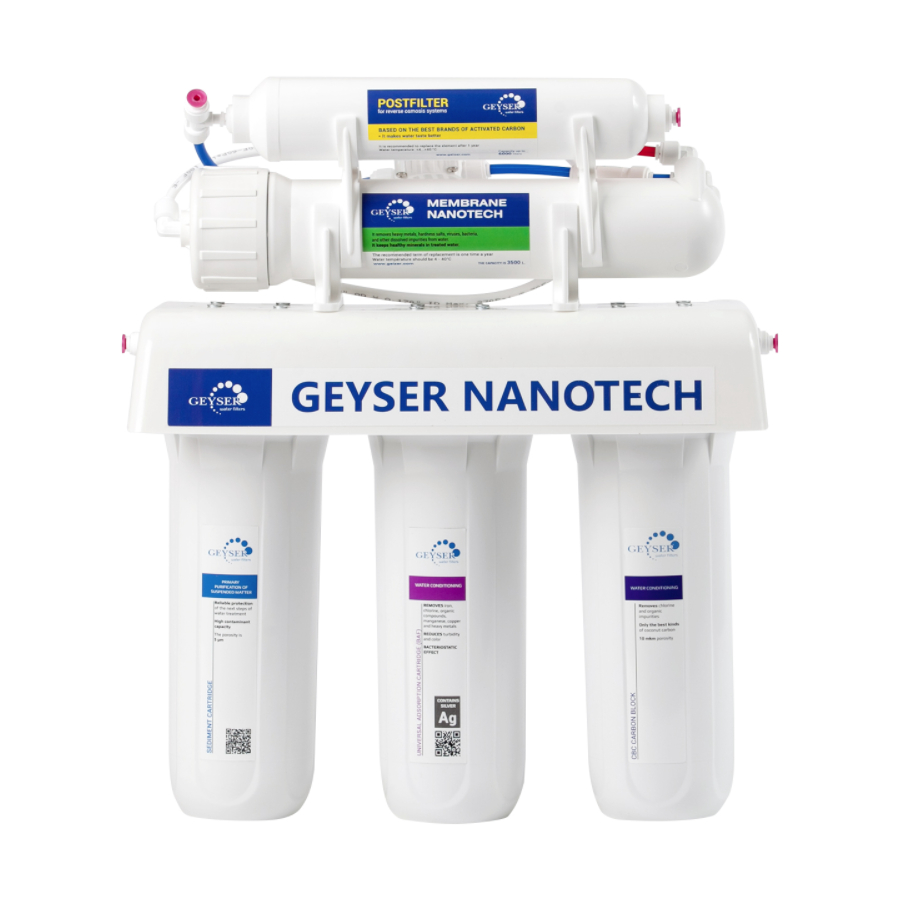

PURPOSE Geyser-Nanotech filter is used for the deep purification of the tap water by the reverse osmosis from mechanical admixtures, chloride and organic compounds, carbolic acids, bacteria and viruses. The system decreases the water hardness, removes foreign flavour, smell and color. -
Page 5: Requirements To The Source Water
REQUIREMENTS TO THE SOURCE WATER ATTENTION! The reverse osmosis system performance directly depends on a pressure in a water conduit. If a pressure in your water conduit is less than 3 atm., that it is necessary to complement the reverse osmosis system with the booster pump. The water pressure at the inlet of the system with a pump, atm. -
Page 6: Connection Diagrams And A Scope Of Delivery Of
CONNECTION DIAGRAMS AND A SCOPE OF DELIVERY OF GEYSER-NANOTECH Cases with filter elements ................. 1 set I – a case of the mechanical filter II – a case of the cartridge of BAF series III – a case of the carbon filter IV –... - Page 7 CONNECTION DIAGRAMS AND A SCOPE OF DELIVERY OF GEYSER- NANOTECH P (WITH PUMP) Cases with filter elements ................1 set I – a case of the mechanical filter II – a case of the cartridge of BAF series III – a case of the carbon filter IV –...
-
Page 8: System Installation
CONNECTION RECOMMENDATIONS FOR CONNECTION AND OPERATION the connection is carried out only by the qualified specialist or the manufacturer’s representative; strictly follow the manual in case of individual connection; all filter cases were tested for sealness and hydraulic impact, that is why there is on water inside cases of the filter;... - Page 9 2. Insert a plastic tube into a nut (C) (Fig. 2). Insert the pipe into the ball tap fitting against stop and tightly screw a nut (Fig. 3). A loose end of this tube is connected to the filter input or to the low pressure controller tee (for models with the pump) (Fig. 4).
-
Page 10: System Flush
Connection of the tap of clean water Drill a hole 12 mm in diameter in the washer. Assemble the tap in the following order: 1. Faucet 2. Cuvette 3. Rubber gasket 4. Plastic washer 5. Metal washer 6. engraving washer Fix the faucet on the sink. -
Page 11: System Maintenance
SYSTEM MAINTENANCE Replacement of cartridges of I, II, III stage Turn the water off at the input and in the storage tank. Open the tank with clean water to release a pressure in the system. Remove the case flask using a wrench (I, II, III stages) and replace the corresponding cartridge. -
Page 12: List Of Possible Failures And Methods Of Their Elimination
LIST OF POSSIBLE FAILURES AND METHODS OF THEIR ELIMINATION POTENTIAL ELIMINATION REASONS NOTE FAILURE METHOD This situation is considered The white water The air will normal during the new flows from the There is the air in the gradually be out of system commissioning or tap of clean system... - Page 13 The tank filling can be from 4 hours to 6 hours The system has just started depending on the water to operate There is too little temperature and the water outflowing from pressure in the main the storage tank The normal pressure in The excessive pressure is Increase the the empty tank should...
-
Page 14: Warranty Liabilities
STORAGE AND TRANSPORTATION CONDITIONS The transportation of filters is acceptable in any closed transportation vehicles (except for unheated sections of planes) in accordance with cargo transportation rules applicable for this transport type. Filters are stored packed, at a distance of not less than 1 m from heaters at the temperature of no lower than 5°С. - Page 16 Expensive reagents are not required for the media recovery. The regeneration is carried out using table salt. Drain waters are harmless for septic tanks. SPACE SAVING IN A HOUSE: Geyser Aquachief occupies 2 times less space, than systems operating at usual filling loadings. INDIVIDUAL APPROACH:...
