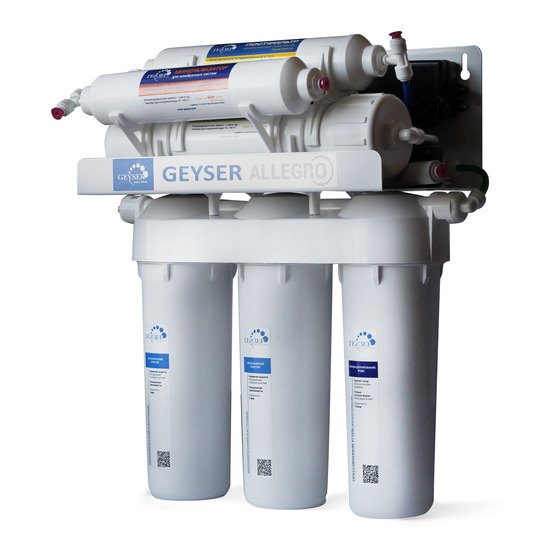

- Page 1 WATER PURIFICATION SYSTEM ON THE BASIS OF THE REVERSE OSMOSIS GEYSER M AN UA L ALLEGRO for installation and operation of a HOUSEHOLD FILTER 12 l 16 l MODIFICATIONS GEYSER-ALLEGRO GEYSER-ALLEGRO P GEYSER-ALLEGRO PM GEYSER-ALLEGRO M...
-
Page 2: Table Of Contents
All functionality capabilities, an also a method of installation of the water purification system Geyser are described in this manual. Please read it carefully and retain for future reference. The water purifier set includes all parts required for using immediately after the installation. -
Page 3: Geyser Technologies
(patent No. 2212378). PURPOSE Geyser-Allegro filter is used for the deep purification of the tap water by the reversed osmosis from mechanical admixtures, chloride and organic compounds, carbolic acids, bacteria and viruses. The system decreases the water hardness, removes a foreign flavour, smell and color. -
Page 4: Requirements To The Source Water
REQUIREMENTS TO THE SOURCE WATER ATTENTION! The reverse osmosis system performance directly depends on a pressure in a water conduit. If a pressure in your water conduit is less than 3 atm., that it is necessary to complement the reverse osmosis system with the booster pump. The water pressure at the inlet of the system with a pump, atm. -
Page 5: Connection Diagrams And A Scope Of Delivery Of
CONNECTION DIAGRAMS AND A SCOPE OF DELIVERY OF GEYSER-ALLEGRO * Cases with filtering elements on the frame ..........1 set I – a case of the mechanical filter II, III – cases of carbon filters IV – a case of the reverse osmosis membrane V –... -
Page 6: Geyser-Allegro M
CONNECTION DIAGRAMS AND A SCOPE OF DELIVERY OF GEYSER-ALLEGRO M * Cases with filtering elements on the frame ..........1 set I – a case of the mechanical filter II, III – cases carbon filters IV – a case of the reverse osmosis membrane V –... -
Page 7: Geyser-Allegro P
CONNECTION DIAGRAMS AND A SCOPE OF DELIVERY OF GEYSER-ALLEGRO P * Cases with filtering elements on the frame ..........1 set I – a case of the mechanical filter II, III – cases of carbon filters IV – a case of the reverse osmosis membrane V –... -
Page 8: Geyser-Allegro Pm
CONNECTION DIAGRAMS AND A SCOPE OF DELIVERY OF GEYSER-ALLEGRO PM * Cases with filtering elements on the frame ..........1 set I – a case of the mechanical filter II, III – cases of carbon filters IV – a case of the reverse osmosis membrane V –... -
Page 9: Electrical Scheme
ELECTRICAL SCHEME OF THE REVERSE OSMOSIS SYSTEM FOR MODELS WITH THE PUMP Low pressure High pressure Power supply unit controller controller Solenoid valve Pump electric motor SYSTEM INSTALLATION We recommend carry out the system installation with specialists or install it strictly in accordance with the manual. - Page 10 The storage tank assembly Remove the tank from the package. Install the tank on the support in such position, in which the tank is more stable. Screw a gate of the storage tank on the threaded fitting (Fig. 5). Use the FUM tape for sealing connections. Put a cap nut on the blue tube, insert a plastic grommet into the tube against stop and screw a nut on the storage tank gate fitting.
-
Page 11: System Flush
Connection of the tap of clean water Drill a hole 12 mm in diameter in the washer. Assemble the tap in the following order: 1. Faucet 2. Cuvette 3. Rubber gasket 4. Plastic washer 5. Metal washer 6. engraving washer Fix the faucet on the sink. -
Page 12: System Maintenance
SYSTEM MAINTENANCE Replacement of cartridges of I, II, III stage Turn the water off at the input and in the storage tank. Open the tank with clean water to release a pressure in the system. Remove the case flask using a wrench (I, II, III stages) and replace the corresponding cartridge. -
Page 13: List Of Possible Failures And Methods Of Their Elimination
ATTENTION! During replacement it is recommended to use replaceable components Geyser. Non- compliance with this requirement can lead to the alteration of the water-purification system functional and technical characteristics. LIST OF POSSIBLE FAILURES AND METHODS OF THEIR ELIMINATION POTENTIAL REASONS... - Page 14 Water leak Fittings are not tightened Tighten connections The tank filling can be from 4 hours to 6 The system has just started to hours depending on operate the water temperature There is too little and the pressure in water outflowing the main from the storage tank...
-
Page 15: Warranty Liabilities
QUESTIONS CONCERNING THE WARRANTY MAINTENANCE SHOULD BE REFERRED TO: WARRANTY CARD Issuing date The trading organization shall fill Sale date Stamp of a store WARRANTY LIABILITIES The warranty period of the filter operation is years from the sale date. In the lack of the sale date and a stamp of the trading organization the warranty period shall commence at the date of the filter manufacture. - Page 16 Expensive reagents are not required for the media recovery. The regeneration is carried out using table salt. Drain waters are harmless for septic tanks. SPACE SAVING IN A HOUSE: Geyser Aquachief occupies 2 times less space, than systems operating at usual filling loadings. INDIVIDUAL APPROACH:...
